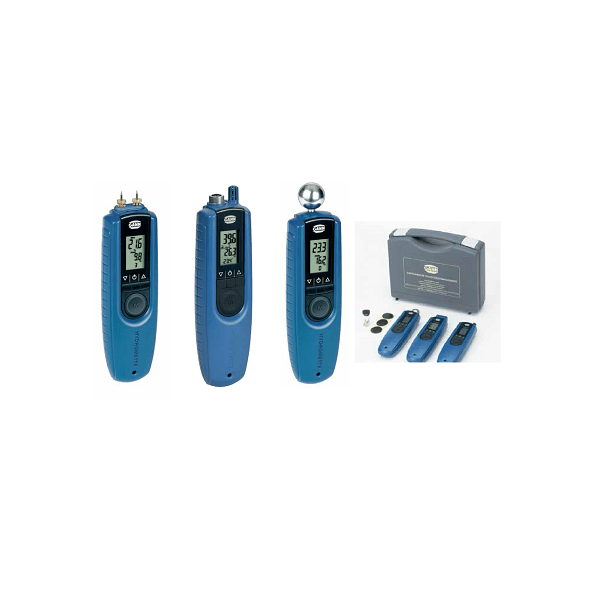

The BL Combo kit includes the Hydromette BL Compact - IC-12010, Hydromette BL Compact B - IC-12030 and Hydromette BL Compact TF-IR - IC-12070.
BL Compact (IC-12010) features:
Measuring range (Wood) - 6 - 25 % moisture content
Measuring range (Building Materials): 0.4 - 6.0 % of dry weight
Handy, pocket-sized instrument for quick and easy single and successive measurements
Direct indication of wood moisture and structural moisture in % of dry weight (mass weight percent) via a 3-line LCD, resolution: 0.1 % or 0.1 C
4-step correction of wood species
Direct readings for 3 types of building materials and 2 types of insulating materials
Min / Max and Hold functions for measured values
Indication of the device's temperature/ambient temperature
Automatic cut-off of the device
BL Compact B (IC-12030) features:
Measuring range: 0.3 - 6.0 % of dry weight/0.3 - 4.0 % CM
Handy, pocket-sized instrument for quick and easy single and successive measurements
Direct Indication of moisture content in % by weight and in %-CM via a 3-line LCD, resolution: 0.1 %
Direct readings for 7 types of building materials and 2 types of insulating materials as well as indication for hard and soft wood
Min / Max and Hold functions for measured values
Acoustic alarm function if user-defined limits are exceeded
Automatic calibration during startup
Indication of the device's temperature/ambient temperature
Automatic cut-off of the device
Power supply: 9 V dry cell or Ni-Cd accumulator (optional accessory)
Size: 175 [L] x 50 [W] x 30 mm [H], weight approx. 170 g
Total length: approx. 200 mm
BL Compact TF-IR (IC-12070) features:
Measuring range (Air humidity): 0 - 100% R.H.
Measuring range (Temperature): -20 to +70 C 0,5 C (-10 to +60 C)
Infrared measuring range: -40 to +380 C 0,5 C (0 to 60 C), at 0 to 50 C ambient temperature
Handy, pocket-sized instrument for quick and easy single and successive measurements
Simultaneous indication of up to three measured values via a 3-line LCD, with a resolution of 0.1 % or 0.1 C
Automatic calculation of dew point, the equilibrium moisture content of wood (EMC) *, the indication of moisture content in g/m, enthalpy in kj/K, wet-bulb temperature in C and water activity (aw value)
With built-in laser pointer to indicate the position of the measuring spot and adjustable emissivity from 20 to 100%
In addition to displaying the measured value, the unit creates an audible signal when a critical surface temperature is detected
Different alarm sounds that has its own implications that quickly alerts the user of specific problem areas.
Min / Max and Hold functions for measured values
USB interface for transferring measured values to a PC on which the optional DIALOG BL+ software is executed (for long-term measurements or process monitoring)
Storage of the latest 5 readings
Automatic cut-off of the device
Length of sensor tube: 250 x 6,5 mm goose neck sensor tube (350 mm sensor tube optional)
Power supply: 9 V dry cell or Ni-Cd accumulator (optional accessory)
Size: 175 [L] x 50 [W] x 30 mm [H], weight approx. 150 g
Total length: approx. 190 mm
Measuring range (Wood) - 6 - 25 % moisture content
Measuring range (Building Materials): 0.4 - 6.0 % of dry weight
Handy, pocket-sized instrument for quick and easy single and successive measurements
Direct indication of wood moisture and structural moisture in % of dry weight (mass weight percent) via a 3-line LCD, resolution: 0.1 % or 0.1 C
4-step correction of wood species
Direct readings for 3 types of building materials and 2 types of insulating materials
Min / Max and Hold functions for measured values
Indication of the device's temperature/ambient temperature
Automatic cut-off of the device
BL Compact B (IC-12030) features:
Measuring range: 0.3 - 6.0 % of dry weight/0.3 - 4.0 % CM
Handy, pocket-sized instrument for quick and easy single and successive measurements
Direct Indication of moisture content in % by weight and in %-CM via a 3-line LCD, resolution: 0.1 %
Direct readings for 7 types of building materials and 2 types of insulating materials as well as indication for hard and soft wood
Min / Max and Hold functions for measured values
Acoustic alarm function if user-defined limits are exceeded
Automatic calibration during startup
Indication of the device's temperature/ambient temperature
Automatic cut-off of the device
Power supply: 9 V dry cell or Ni-Cd accumulator (optional accessory)
Size: 175 [L] x 50 [W] x 30 mm [H], weight approx. 170 g
Total length: approx. 200 mm
BL Compact TF-IR (IC-12070) features:
Measuring range (Air humidity): 0 - 100% R.H.
Measuring range (Temperature): -20 to +70 C 0,5 C (-10 to +60 C)
Infrared measuring range: -40 to +380 C 0,5 C (0 to 60 C), at 0 to 50 C ambient temperature
Handy, pocket-sized instrument for quick and easy single and successive measurements
Simultaneous indication of up to three measured values via a 3-line LCD, with a resolution of 0.1 % or 0.1 C
Automatic calculation of dew point, the equilibrium moisture content of wood (EMC) *, the indication of moisture content in g/m, enthalpy in kj/K, wet-bulb temperature in C and water activity (aw value)
With built-in laser pointer to indicate the position of the measuring spot and adjustable emissivity from 20 to 100%
In addition to displaying the measured value, the unit creates an audible signal when a critical surface temperature is detected
Different alarm sounds that has its own implications that quickly alerts the user of specific problem areas.
Min / Max and Hold functions for measured values
USB interface for transferring measured values to a PC on which the optional DIALOG BL+ software is executed (for long-term measurements or process monitoring)
Storage of the latest 5 readings
Automatic cut-off of the device
Length of sensor tube: 250 x 6,5 mm goose neck sensor tube (350 mm sensor tube optional)
Power supply: 9 V dry cell or Ni-Cd accumulator (optional accessory)
Size: 175 [L] x 50 [W] x 30 mm [H], weight approx. 150 g
Total length: approx. 190 mm
