Hydromette M 4050 Kit - IC-2410
Backorder Now, once ordered your item will dispatch before the 12th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

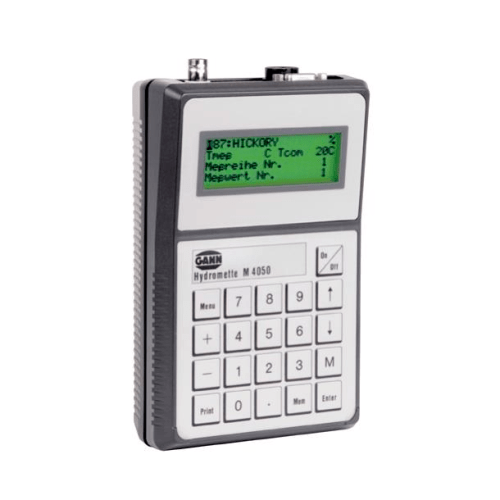

The M 4050 is an electronic wood moisture and temperature measure meter built with microprocessor technology for faster and more accurate measurements, with additional data analysis features.
- The M 4050 has a large memory for storing measurement data that can easily be printed or transferred to a computer.
- The M 4050 is also compatible with other hydromette measuring probes for more measurement options.
- This kit includes a with M 20 drive-in electrode, 20 replacement pins (10 each for 16 and 23 mm), mk 8 measuring cable and carrying case.
Regular price
$2,738.00 AUD
+ GST
$3,011.80 AUD Inc. GST
$3,011.80 AUD Inc. GST
The M 4050 is an electronic wood moisture and temperature measure meter built with microprocessor technology for faster and more accurate measurements, with additional data analysis features. The M 4050 also has a large memory for storing measurement data that can easily be printed or transferred to a computer. The M 4050 is also compatible with other hydromette measuring probes for more measurement options.
This kit includes aM 20 drive-in electrode, 20 replacement pins (10 each for 16 and 23 mm), mk 8 measuring cable and carrying case.
Features:
- Can store up to 3000 measurements each for wood moisture and temperature readings including date and time
- Direct displaying of wood moisture in percent via a digital matrix LCD, resolution: 0.1 % m.c.
- Individually memorized calibration curves of 250 species of wood and more than 20 building materials
- Faster measurement of mositure content in hardened building materials
- Fully automatic compensation of temperature with the help of an accessible wood temperature sensor or via manual input
- Computer or printer can be connected directly in order to process and print data
- Statistical evaluation of measured values according to maximum, minimum and mean value as well as standard deviation
- Special calibration for licensed bonded wood industries (DIN 1052) is approved by the Otto-Graf institute in Stuttgart
- Precise measurement of temperature due to Pt 100 probes in 4-conductor technology
- Direct displaying of wood moisture in percent via a digital matrix LCD, resolution: 0.1 % m.c.
- Individually memorized calibration curves of 250 species of wood and more than 20 building materials
- Faster measurement of mositure content in hardened building materials
- Fully automatic compensation of temperature with the help of an accessible wood temperature sensor or via manual input
- Computer or printer can be connected directly in order to process and print data
- Statistical evaluation of measured values according to maximum, minimum and mean value as well as standard deviation
- Special calibration for licensed bonded wood industries (DIN 1052) is approved by the Otto-Graf institute in Stuttgart
- Precise measurement of temperature due to Pt 100 probes in 4-conductor technology
- Power supply by 9 V dry cell or rechargeable battery (optional equipment)
- Dimensions: 190 [L] x 115 [W] x 56 mm [H], weight approx. 460 g
- Dimensions: 190 [L] x 115 [W] x 56 mm [H], weight approx. 460 g
Specifications
- Measuring range (Wood): 5 - 100 % m.c
- Measuring range (Wood with MH 34): 40 - 200 % m.c
- Measuring range (Structural Materials): 0.3 - 12 % - 0.3 - 25 % CM of dry weight/0.2 - 3.7 % of dry weight directly display with converted sorption isotherms
- Measuring range (Structural Materials using probe RH-T 37 EL): 5 - 98 % R.H
- Scanning range with probes B 50, B 60 and LB 70: 0 - 199 digits
- Measuring range (Air humidity with RF-T probe):5 - 98 % R.H
- Measuring range (Temperature with infrared IR 40 EL probe0: 0 - +169,9 C
- Measuring range (Temperature with most Pt 100 probes): -30 - +170 C
- Measuring range (Wood with MH 34): 40 - 200 % m.c
- Measuring range (Structural Materials): 0.3 - 12 % - 0.3 - 25 % CM of dry weight/0.2 - 3.7 % of dry weight directly display with converted sorption isotherms
- Measuring range (Structural Materials using probe RH-T 37 EL): 5 - 98 % R.H
- Scanning range with probes B 50, B 60 and LB 70: 0 - 199 digits
- Measuring range (Air humidity with RF-T probe):5 - 98 % R.H
- Measuring range (Temperature with infrared IR 40 EL probe0: 0 - +169,9 C
- Measuring range (Temperature with most Pt 100 probes): -30 - +170 C
Compatible electrodes:
- B 50, B 60 and LB 70 for a non-destructive measurement of moisture and location of moisture in building materials
- MB 35 for surface moisture measurements on concrete
- MH 34 for measurement of high moisture values (40 - 200 % m.c.) in conifers
- IR 40 EL for surface temperature measurement, thermal bridging and dew point
- RF-T 28, RF-T 31, RH-T 37 EL and RH-T 37 EL flex for air humidity- and air temperature measurement
- All Pt 100 probes of our range of temperature sensors
- MB 35 for surface moisture measurements on concrete
- MH 34 for measurement of high moisture values (40 - 200 % m.c.) in conifers
- IR 40 EL for surface temperature measurement, thermal bridging and dew point
- RF-T 28, RF-T 31, RH-T 37 EL and RH-T 37 EL flex for air humidity- and air temperature measurement
- All Pt 100 probes of our range of temperature sensors
