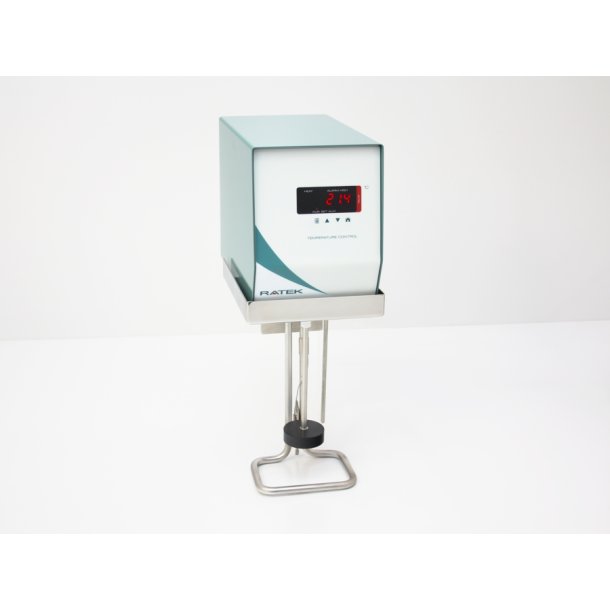

Digital Immersion Heater Circulator - IC-TH7000
Backorder Now, once ordered your item will dispatch before the 30th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Digital Immersion Heater Circulator
Regular price
$1,221.00 AUD
+ GST
$1,343.10 AUD Inc. GST
$1,343.10 AUD Inc. GST
Excellent Temperature Stability with PID Control
Simple Operation
Non-splash High-volume Circulator
User Resettable Safety Thermostat
Adjustable Over-Temp Indicator
Product Overview
The TH7000 offers a host of features that make it ideal for many temperature control applications where a pump out facility is not required. The simple to use full digital PID control system produces accurate and stable temperatures, whilst the high-flow circulating paddle ensures good temperature uniformity even in larger baths. The TH7000 is Rateks entry level immersion circulator, yet is capable of satisfying many applications where stable temperatures are critical.
The TH7000 can be utilised in a wide variety of biomedical, life science, and industrial applications as well as in commercial kitchen cooking techniques such as Sous Vide. All Ratek immersion heater circulators are built to withstand the toughest of operating environments and feature a unique vent system to ensure steam is kept away from the control unit. The TH7000 features Rateks unique expandable clamp bracket system allowing it to be easily fitted to most brands of bath, and also includes a retort stand mounting option for applications where the circulator needs to be suspended over the tank. When used with a Ratek insulated bath, a matching bridge plate is ideal and maximises usable bath space. With all the key features that many applications demand, the TH7000 immersion circulator delivers value for money with performance that is unmatched in its class.
Simple Operation
Non-splash High-volume Circulator
User Resettable Safety Thermostat
Adjustable Over-Temp Indicator
Product Overview
The TH7000 offers a host of features that make it ideal for many temperature control applications where a pump out facility is not required. The simple to use full digital PID control system produces accurate and stable temperatures, whilst the high-flow circulating paddle ensures good temperature uniformity even in larger baths. The TH7000 is Rateks entry level immersion circulator, yet is capable of satisfying many applications where stable temperatures are critical.
The TH7000 can be utilised in a wide variety of biomedical, life science, and industrial applications as well as in commercial kitchen cooking techniques such as Sous Vide. All Ratek immersion heater circulators are built to withstand the toughest of operating environments and feature a unique vent system to ensure steam is kept away from the control unit. The TH7000 features Rateks unique expandable clamp bracket system allowing it to be easily fitted to most brands of bath, and also includes a retort stand mounting option for applications where the circulator needs to be suspended over the tank. When used with a Ratek insulated bath, a matching bridge plate is ideal and maximises usable bath space. With all the key features that many applications demand, the TH7000 immersion circulator delivers value for money with performance that is unmatched in its class.
Specifications
| Temperature Control | Full Digital PID | |
| Circulation Type | High circulation anti-splash impeller | |
| Digital Display Type | Active bright red LED | |
| Information Display | - Current temperature - Set temperature - Over-temp alarm set-point - Heating indicator - 0.1 resolution |
|
| Temperature Control Range | 0C to 100.0C, (external cooling required for ambient +7C or less) | |
| Control Stability | +/- 0.1C in Ratek insulated water bath with lid | |
| Heating Power | 1,000 Watts | |
| Minimum Tank Depth | 200 mm | |
| Motor and drive type | Silent long life brushless AC | |
| Alarm | Visual over-temp indicator | |
| Safety features | - Resettable safety thermostat - Over-current protection |
|
| Power input | 240 VAC / 50-60 Hz | |
| Overall dimensions | Overall dimensions W125 x D190 x H360mm | |
| Nett weight | 3.6 kg |
