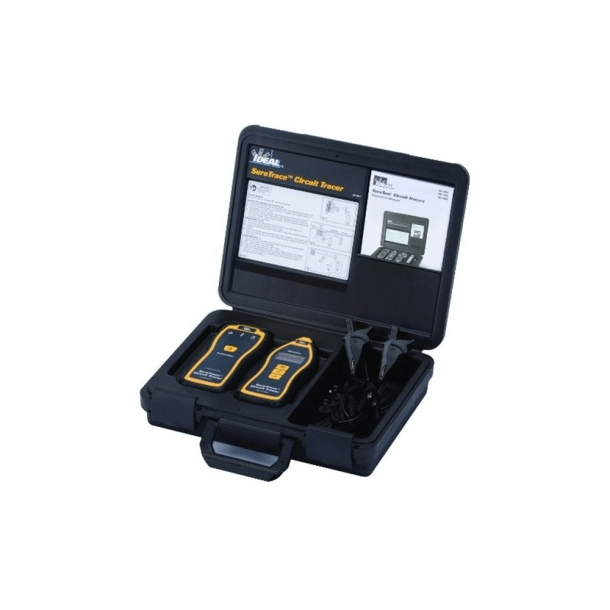

IDEAL 61-957 Suretrace Circuit Tracer
Four defined ranges of the new Circuit Tracers let you quickly select the proper sensitivity for your specific job. And, with easy-to-replace AA batteries, the tracer provides four times the tracing power of conventional 9-volt circuit tracers on the market. No circuit tracer has ever been so user friendly. Super-bright models provide a numeric value between 0 and 99 and a variable pitch/tone audible indication. In addition, the peak detector provides instantaneous signal strength feedback. SureTrace features the only rotating display in the industry. Regardless of what position you put the receiver in, the display will orient itself so that the reading stays upright.
Specifications
Transmitter:
- Operating Frequency: 32.768 kHz, fixed-amplitude, time-modulated signal
- Current Output of Signal: 82 mArms to 50 Ohms
- Voltage Output of Signal: 4 Vrms (330mW)
- Operating Voltage: 0600 VAC/DC
- Battery Power: 4x 1.5 AA batteries (NEDA 15A, IEC LR6)
- Battery life: 25 hours open circuit testing/6 hours short circuit tracing
Receiver:
- Sensing: Magnetic
- Signal response: Numeric display and Audible beep
- Battery Power: 3x 1.5 AA batteries (NEDA 15A, IEC LR6)
- Battery life: 20 hours minimum
- Operating temperature: 0 C to 50 C
- Storage temperature: -20 to 60 C
- Operating humidity: 95% RH max
- Dimensions: 355 x 285 x 83 mm
- Weight: 2.1 kg
Warranty
- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
