Imex i77R Rotating Laser Level - Red Beam - IC-012-I77R

1 In Stock
Product code: IC-012-I77R
The class leader in economical rotating laser levels, the IMEX i77R incorporates the robust casing and technology of it's big brothers in an efficient simple-to-use package. Featuring a huge 600m dia range, rubber sheath protection and heavy duty lighthouse cover for superior shockproof and weatherproofing the i77R is the leader in value for everyday laser levelling.

Read more

$1,399.40 AUD + GST
 $1,539.34 AUD Inc. GST

Features:

- Robust construction tough horizontal laser level.
- Self leveling (electronic). 600m range, includes standard detector.
- Calibration Certificate9Ah lithium-ion battery approx. 40 hours run time
- USB quick charge port with car charger
- LRX10 Digital Detector in mm reading (German made)
- 90mm Detector reading ultra fine, fine, medium, course and ultra course.
- Fast and accurate set-up time. Re-sets if unit is bumped or moved
- Grade Slope to 50 (8.8%) Manual grade setting for slopes. Ideal for pipe layout or concrete slab falls.
- Accuracy +/- 1.5mm at 30 metres for excellent results every time.

Specifications

- Self Leveling Range: +/-5 degrees
- Working Distance: 600m Diameter
- Function: Horizontal
- Scan Mode: No
- Slope Mode: Yes Single manual grade to 5 degrees, 8.8%
- Accuracy: 1.5mm at 30m
- Rotation Speeds: 0, 60, 120, 300, 600 rpm
- Waterproof/Shockproof: IP66
- Light Source: Red laser diode, 635nm Class II
- Power: 9 Ah 3.7v lithium-ion
- Detector: LRX10 Double Sided
- Working time continuous use; 40 hours approx.
- Charging Time: 4 hours in unit or removed from unit
- USBC Charging: Yes; including 12v car charger
- High Wind Sensitivity Re-set: Yes
- Remote Control: Yes, iCR7
- Weight Unit Only: 2.48kg
- Detector German Made; LRX10 Double Sided
- Detector Pick Up: 90mm -30mm to +60mm
- Detector Reading: Ultra fine 0.5mm/Fine 1.0mm/Medium 2.0mm/Course 5.0mm/Ultra Course 10.0mm
- Detector Power: 1-AA more than 50 hrs run

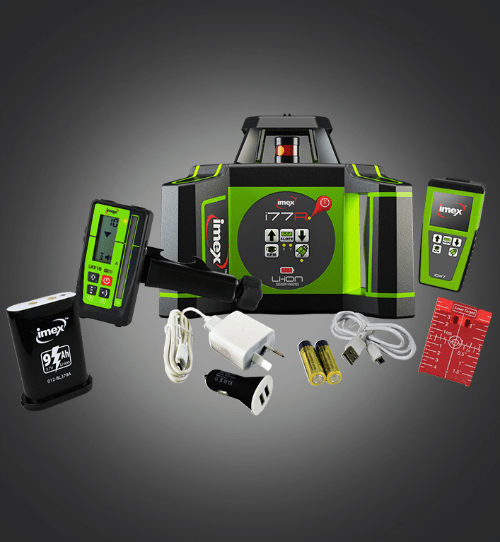

- Inclusions: Unit, LRX10 Detector, USB cable, 9.0 Ah Lithium battery, Car charger, target plate, hard carry case

Warranty

- 5 Years Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
