Incubating Heavy Duty Orbital Shaker - IC-SHD23HDG

ORDER ME IN
Product code: IC-SHD23HDG

Backorder Now, once ordered your item will dispatch before the 14th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

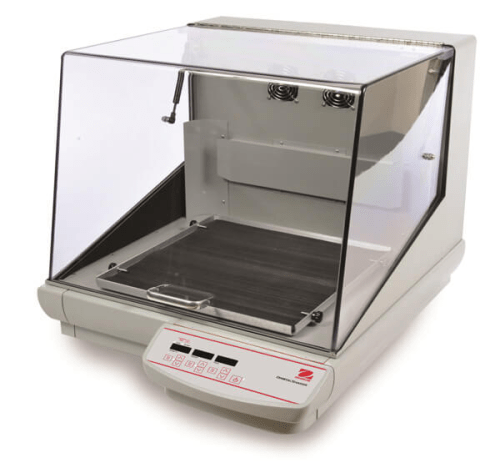

Incubating heavy duty, orbital shaker. Maximum weight capacity of 22.7 kg at 125 rpm, 4.53 kg at 500 rpm. Offers exceptional temperature uniformity and are designed for a variety of shaking and incubating applications.

Read more

$15,078.00 AUD + GST
 $16,585.80 AUD Inc. GST
Features:
- Applications: Cell Cultures, Solubility Studies, Bacterial Suspensions, Extraction Procedures
- Display: Independent LED displays for temperature, speed and time
- Communication: RS232
- Construction: Aluminum and Cycoloy
- Design Features: Temperature calibration feature, overload protection, overshoot protection (temperature), load sensor, PID temperature controller, Triple Eccentric Drive system
Safety Features:
- Overload Protection: Audible and visual signals will activate when system detects an obstruction or overload of the tray.
- Speed Ramping Feature: Slowly increases speed to desired set-point to avoid splashing.
- Audible Alarm: In timed mode, alarm will sound when the time reaches zero.
- Caution Hot Indicator: Symbol illuminates when the temperature of the air in the chamber reaches 40C and remains lit until temperature cools down.
- Spill-Resistant Design: Channels fluids away from internal components.
- Polycarbonate Lid: Clear lid permits viewing of samples without disturbing internal temperature. Opaque lid prohibits light exposure to light sensitive samples.

Specifications

- Motion: Orbital, 25 mm
- Capacity: 22.7 kg at 125 rpm, 4.53 kg at 500 rpm
- Temperature Range: Ambient +5C 65C
- Uniformity: 0.5C at 37C
- Speed Range: 15 rpm to 500 rpm
- Tray Size (LxW): 457 mm x 457 mm (18 in x 18 in)
- Calibration: Temperature calibration
- Communication: RS232
- Control: Digital
- Dimensions (HxLxW): (596 mm x 815 mm x 675 mm (23.5 in x 32.1 in x 26.6 in)
- Drive System: Triple Eccentric; Brushless DC Motor
- Inner Dimensions (HxHxLxLxWxW): 432 mm x 523 mm x 629 mm (17 in x 20.6 in x 24.8 in)
- Net Weight: 35.9 kg (79.11 lb)
- Power: 120V, 5A, 50/60Hz
- Power Consumption: 800 W
- Safety Certification: TUV
- Speed Accuracy: Above 100rpm +/- 1%, Below 100rpm /- 1 rpm
- Speed Range: 15 rpm to 500 rpm
- Timer: 1 second to 160 hours
- Tray Construction: Aluminum
- Working Environment: 15C to 32C, 80%RH, non-condensing (59F to 90F, 80%RH, non-condensing)
