Industrial Grade Automatic Weather Station - IC-SNiP-MSO-SL

ORDER ME IN
Product code: IC-SNiP-MSO-SL

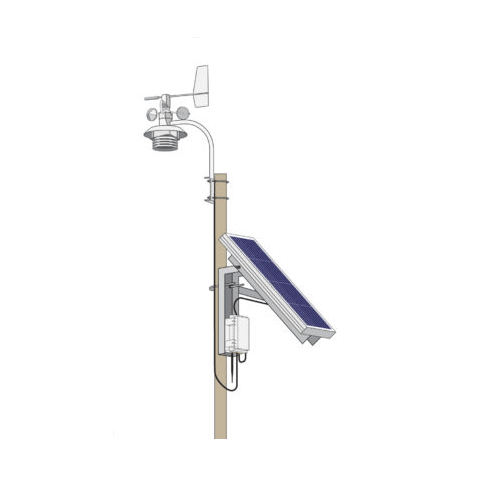

Industrial Grade Automatic Weather Station. Measures wind speed, wind direction, temperature, relative humidity, pressure and rainfall. Includes: 1 x MSO Weather Station with mounting bracket, 1 x SRG0 stainless steel rain gauge, S-NODE with LoRaWAN communications, 13Ah rechargeable li-ion battery, 10W Solar Panel and SPLM7 mounting system for node and solar panel

Read more

Features:

The MetOne MSO multi-parameter weather sensor can be combined with the SRG0 stainless steel tipping bucket rain gauge to produce an industrial grade LoRaWAN weather station.

- 13Ah internal lithium-ion rechargeable battery provides power for up to a week with no sun
- 10W solar panel
- Conventional cup and vane measurement of wind speed and direction
- Multi-plate radiation shield to reduce solar radiation heating errors.
- Solid-state relative humidity sensor- Platinum RTD temperature sensor
- Piezo-resistive barometric pressure sensor designed for high accuracy and long term stability
- Stainless steel rain gauge, 0.2mm tips
- Rain Gauge accuracy of +/- 2% at 500 mm/hr

S-NODE

The S-NODE (for Environmental Monitoring) has been designed to support the broad suite of SDI-12 based environmental sensors. The S-NODE can support sensors with higher power requirements; a solar panel can charge either the internal lithium-ion battery or both the node and sensor can be powered by an external 12V system (e.g. battery or mains source).

A decoder suitable for TTN will be provided based upon sensor configuration.

- LoRaWAN low-power long-range connectivity
- Supports the full range of SDI-12 commands, and sensors requiring constant excitation.
- Optional CAT-M1
- Solar rechargeable Lithium-ion or external 12V power options
- Optional Multi-constellation GNSS
- AS923, AU915 and US915 available, with other region plans available upon request.
- Standard IP65 enclosure, optional IP67

SRG0 Stainless Steel Rain Gauge

The SRG0 is a research grade Rain Gauge with 0.2mm tips and high accuracy during intense rainfall events.

Rain Gauge Features

- Stainless Steel
- Resolution of 0.2 mm
- Output: 0.1 second switch closure - suitable for any standard Data Logger
- Accuracy: +/- 0.5% 125 mm/hr, +/- 2% at 500 mm/hr
- Sensitivity/ Resolution: 0.2 mm
- Dimensions: 537 mm x 210 mm x 210 mm
- Weight: 3.27 kg

MSO Weather Sensor specifications

Wind Speed:

- Range: 0 to 50 m/sec
- Accuracy: +/- 2% of reading
- Resolution: 0.1 m/s
- Threshold: 1m/sec

Wind Direction:

- Range: 0 to 360
- Accuracy: +/- 5
- Resolution: 1.0
- Threshold: 1m/sec

Temperature:

- Range: -40 C to +60 C
- Accuracy: +/- 0.4 C
- Resolution: 0.1 C

Relative Humidity:

- Range: 0 to 100%
- Accuracy: +/- 4% at 25 C

Pressure:

- Range: 500 to 1100 hPa
- Accuracy: +/- 2 hPa
- Resolution: 0.1 hPa
- Resolution: 1.0%

Electrical:

- Measurement Rate Output: 1 Hz
- Signal Output: RS-232C, RS-485, SDI-12 8-36 VDC Supply, 10mA typical @ 12VDC, option dependent

Environmental:

- Temperature: -40 C to +60 C
- Humidity: 0 to 100%
