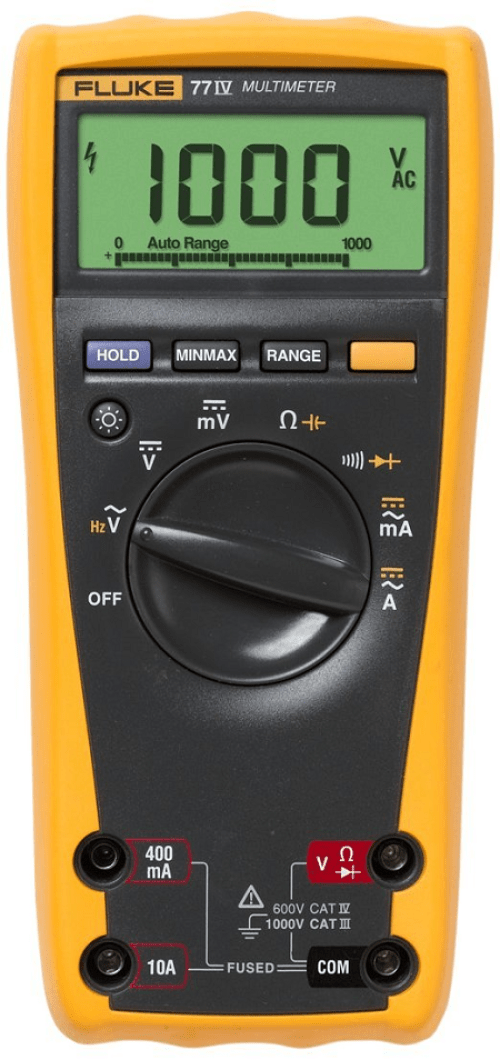

INDUSTRIAL MULTIMETER, 1000V CATIII - IC-FLUKE-77-4
Backorder Now, once ordered your item will dispatch before the 30th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The new Fluke 77-IV digital multimeter has the features needed to repair most electrical and electronic problems. This meter is simple to use and has significant improvements over Fluke's original 70 Series with more measurement functions, nformance to the latest safety standards, and a much larger display that's easier to view.
Regular price
$535.00 AUD
+ GST
$588.50 AUD Inc. GST
$588.50 AUD Inc. GST
Specifications
Maximum voltage between any terminal and earth ground: 1000 V
Surge protection: 8 kV peak per IEC 61010
Ohm Fuse for mA input: 440 mA, 1000 V FAST Fuse
Ohm Fuse for A input: 11 A, 1000 V FAST Fuse
Display Digital: 6,000 counts, updates 4/sec
Bar graph: 33 segments, updates 32/sec
Frequency: 10,000 counts
Capacitance: 1,000 counts
Operating altitude: 2,000 meters
Storage altitude: 12,000 meters
Operating temperature: -10 °C to + 50 °C
Storage temperature: -40 °C to + 60 °C
Temperature coefficient: 0.1 X (specified accuracy/°C (< 18 °C or > 28 °C)
Electromagnetic compatibility: In an RF field of 3 V/M, accuracy = specified accuracy except in temperature: specified accuracy ± 5 °C (9 °F)
Relative humidity (maximumnon-condensing): 90 % to 35 °C; 75 % to 40 °C; 45 % to 50 °C
Battery life 400 hours typical (Alkaline)
Size (H x W x L) 4.3 cm x 9 cm x 18.5 cm
Weight 420 g
Measurement Specification
AC Volts
Range:6.00, 60.00, 600.00, 1000V
Resolution: 0.001 V, 0.01 V, 0.1 V, 1 V
Accuracy: 2.0 % + 2 (45 Hz to 1 kHz)
DC mV
Range: 600.0 V
Resolution: 0.1 mV
Accuracy: 0.3 % + 1
DC Volts
Range:6.00, 60.00, 600.00, 1000V
Resolution: 0.001 V, 0.01 V, 0.1 V, 1 V
Accuracy: 0.3 % + 1
Continuity:
Range: 600 Ω
Resolution: 1 Ω
Accuracy: Meter beeps at < 25 Ω, beeper turns off at > 250 Ω; detects opens or shorts of 250 µs or longer.
Ohms
Range: 600.0 Ω, 6.00 Ω, 60.00 Ω, 600.0 kΩ,60 kΩ, 60.0 kΩ
Resolution: 0.1 Ω, 0.001 kΩ, 0.01 kΩ, 0.1 kΩ, 60.0.001 MΩ, 0.01 MΩ
Accuracy: 0.5 % + 2
Diode test
Range: 2.400 V
Resolution: 0.001 V
Accuracy: 1 % + 2
Capacitance:
Range: 1000 nF, 10.00 µF, 100.0 µF, 9999 µF
Resolution: 1 nF, 0.01 µF, 0.1 µF
AC amps
Range: 60.00 mA, 400.0 mA3, 6.000 A, 10.00 A4
Resolution: 0.01 mA, 0.1 mA, 0.001 A, 0.01 A, 1.5 % + 2
Range:6.00, 60.00, 600.00, 1000V
Resolution: 0.001 V, 0.01 V, 0.1 V, 1 V
Accuracy: 2.0 % + 2 (45 Hz to 1 kHz)
DC mV
Range: 600.0 V
Resolution: 0.1 mV
Accuracy: 0.3 % + 1
DC Volts
Range:6.00, 60.00, 600.00, 1000V
Resolution: 0.001 V, 0.01 V, 0.1 V, 1 V
Accuracy: 0.3 % + 1
Continuity:
Range: 600 Ω
Resolution: 1 Ω
Accuracy: Meter beeps at < 25 Ω, beeper turns off at > 250 Ω; detects opens or shorts of 250 µs or longer.
Ohms
Range: 600.0 Ω, 6.00 Ω, 60.00 Ω, 600.0 kΩ,60 kΩ, 60.0 kΩ
Resolution: 0.1 Ω, 0.001 kΩ, 0.01 kΩ, 0.1 kΩ, 60.0.001 MΩ, 0.01 MΩ
Accuracy: 0.5 % + 2
Diode test
Range: 2.400 V
Resolution: 0.001 V
Accuracy: 1 % + 2
Capacitance:
Range: 1000 nF, 10.00 µF, 100.0 µF, 9999 µF
Resolution: 1 nF, 0.01 µF, 0.1 µF
AC amps
Range: 60.00 mA, 400.0 mA3, 6.000 A, 10.00 A4
Resolution: 0.01 mA, 0.1 mA, 0.001 A, 0.01 A, 1.5 % + 2
