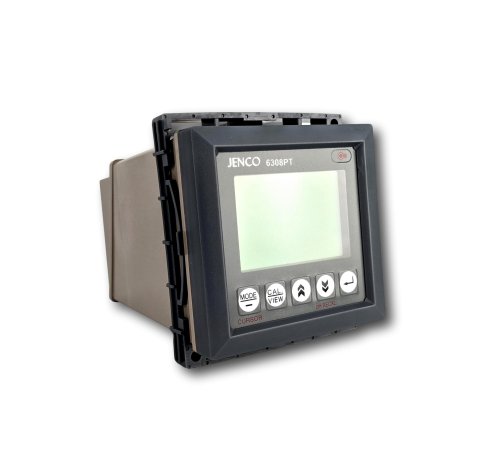

Industrial online pH/Temp controller, 1/4 DIN with graphic display and RS485 interface software
Backorder Now, once ordered your item will dispatch before the 03rd of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$1,583.67 AUD Inc. GST
1/4 DIN panel mount pH single parameter analyzer with electrode efficiency display function. Features pH linear or antilog transmitter output, hysteresis control and uninterrupted operation during pH calibration. Has one 4-20mA output, 5 relays and a RS-485 communications interface. Also with graphical display, 115/230V and CE Approved.
Features:
- Bright, graphical LCD display, 1.5 x 2.25
- Simultaneous measurement and analysis
- 1/4 DIN watertight, ip65 rated enclosure
- Reversible & isolated 4 to 20ma output with adjustable bandwidth
- Continuous controller / relays operation during calibration
- 4-digit password security protection
- Programmable set point hysteresis
- Automatic temperature compensation
- CE approved
- Built in ISO9001 certified facility
- Membrane keypad with audio feedback
- Power down, non-volatile memory backup
- RS-485 output
- Multiple spst on/off relays
- Embedded self diagnostic program
- High 50/60 hz noise rejection
Specifications
- pH Range: -2.00 to 16.00 pH
- pH Resolution: 0.01 pH
- pH Accuracy: 0.1 % +- 1 LSD
- Temperature Range: -10.0 to 120.0 C
- Temperature Resolution: 0.1 C
- Temperature Accuracy: +- 0.3 C
- Temperature Compensation Range: -10.0 to 120.0 C
- Buffer Recognition: 4.01,7, 10.01 / 4.00,6.86, 9.18
- Buffer Temperature Range: 0 to 60.0 C
- Electrode Slope Compensation: +- 30% of ideal slope
- Electrode Offset Compensation: +- 100 mV
- Input Impedance: Greater than 10 exp(13) ohms
- Calibration Auto End Point Sensing: Yes
- pH: 2 programmable high or 2 low
- Temperature: 1 programmable high or 1 low
- Control Type: On/off
- Relay Output (Resistive Load Only): 5 amps at 115 VAC 2.5 amps at 230 VAC
- Relay Set Point Hysteresis: User programmable
- Type: Isolated 4 to 20 mA
- Range: Selectable zero, & span
- Accuracy: +- 0.02 mA
- Isolated Voltage: 500 VDC
- Maximum Load: 500 w
- ATC Sensor: Thermistor 10kilo ohms at 25 ?C
- Security Protection: 4 digit password
- Keypad: Audio feedbackup
- Communication: RS-485
- Pre-amplifier Voltage; +- 5 VDC,20mA max output
- Power Source: 115/230 VAC, 50/60hz
- Dimensions: 1/4 DIN, depth 148mm
- Weight: 950 gm
