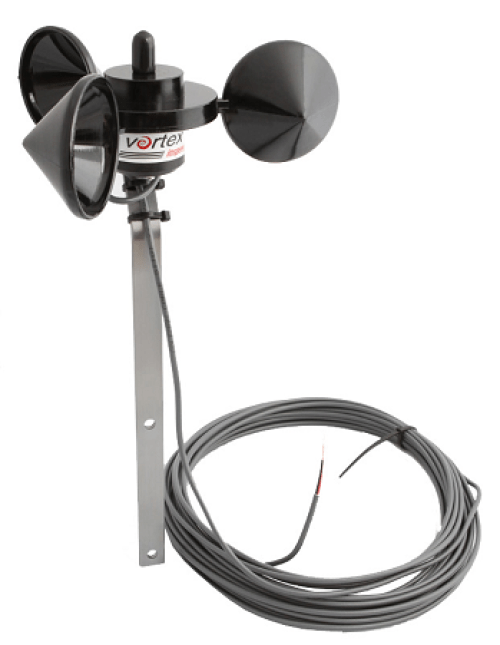

The Vortex Wind Sensor includes the following major items:
- High quality 3-cup rotor pressed on a stainless steel shaft
- Rugged Delrin body with bronze and Rulon bushings
- A flat aluminum mounting bracket with 2 holes
- Reed switch and magnet providing one pulse per rotation
- 25 feet of exterior grade wire
Specifications
- Sensor type: 3-Cup rotor; Reed switch/magnet provide 1 pulse per rotation.
- Output for D2 Rotor: 1 pulse per rotation/2.5 mph per Hz.
- Output for maximum rotor: 1 pulse per rotation/3.4 mph per Hz.
- Rotor diameter: approx. 5 in (~125 mm)
- Speed range: approx. 3 mph to 125+ mph (~5 kph to over 200 kph)
- Mounting bracket: Supplied with an aluminum mounting bracket with 2 holes for screws.Supplied with an aluminum mounting bracket with 2 holes for screws.
- Wire: 25 feet (8m)
- Display: None. Formula for converting pulses to speed: 2.5 mph per Hz (2.5 mph per pulse/second)
