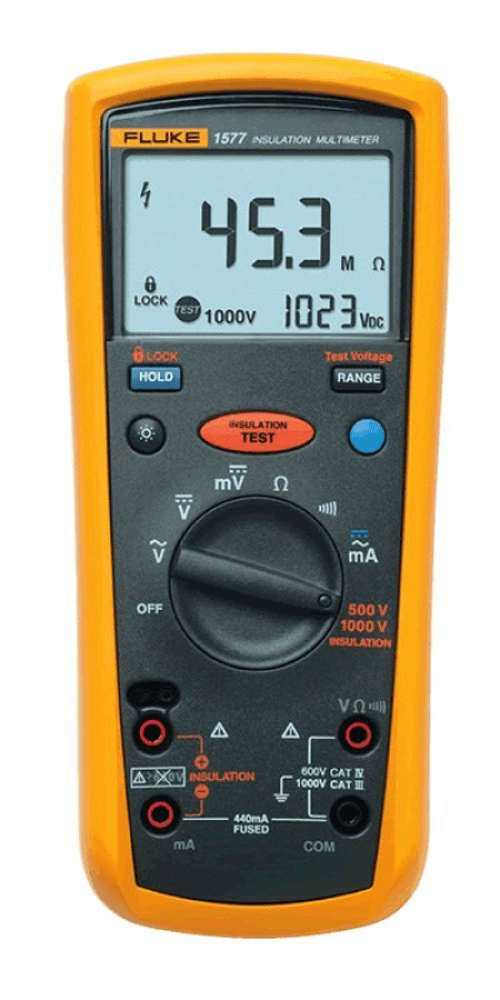

INSULATION MULTIMETER - IC-FLUKE-1577
Backorder Now, once ordered your item will dispatch before the 30th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The Fluke 1577 Insulation Multimeter combines a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance. Whether you work on motors, generators, cables, or switch gear, the Fluke 1577 Insulation Multimeter is ideally suited to help you with your tasks.
Regular price
$1,483.00 AUD
+ GST
$1,631.30 AUD Inc. GST
$1,631.30 AUD Inc. GST
Insulation test voltages 500V, 1000V
Insulation test: 0.1 MΩ to 600 MΩ
Auto discharge of capacitive voltage
C/DC Voltage
DC millivolts
AC/DC milliamps
Resistance (0.1 Ω to 50 MΩ)
Continuity
Three-year warranty
Remote probe, test leads, alligator clips
K-type thermocouple
Rugged, utility hard case
Auto power off to save battery power
True-rms
Large display with backlight
Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
CAT III 1000V, CAT IV 600V measurement category
Accepts optional Fluke TPAKTM magnetic hanging system to free your hands for other work
Specifications
Voltage DC maximum voltage: 1000 V
Voltage DC accuracy: ±(0.2%+2)
Voltage AC maximum voltage: 1000 V
Voltage AC accuracy: ±(2%+3
Current DC maximum Amps: 400mA
Current DC Amps accuracy: ±(1.0%+2
Current DC maximum resolution: 0.01 mA
Current AC maximum Amps: 400mA
Current AC Amps accuracy: ±(2.0%+2)*
Current AC maximum resolution: 0.01 mA
Maximum resistance: 50 MΩ
Accuracy: ±(0.9%+2)
Accuracy: ±(0.9%+2)
