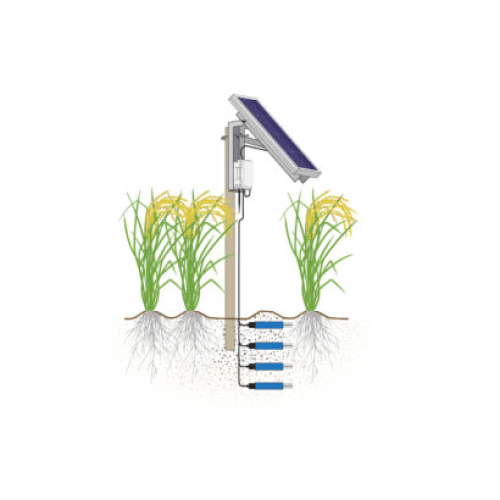

Integrated Soil Moisture Monitoring Station - IC-SNiP-TER2-SL

The SNiP-TER2 is a 'Sensor Node Integrated Package' for LoRa, LoRaWAN, FSK or Cat-M1 communication of real-time soil moisture, temperature and electrical conductivity measurements for continuous soil monitoring.

Optional features include GNSS to record device location for spatially enabled data.

S-NODE

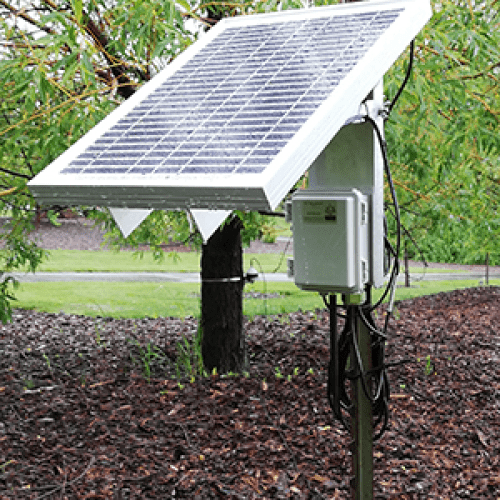

The S-NODE has been designed to support the broad suite of SDI-12 based environmental sensors. The S-NODE can support sensors with higher power requirements; a solar panel can charge either the internal lithium-ion battery or both the node and sensor can be powered by an external 12V system (e.g. battery or mains source). The S-Node's SDI-12 communications can be customised to allow for interfacing with any SDI-12 sensor.

Soil can be highly variable in space, requiring numerous measurements and frustrating amounts of your research dollars. Not to mention the extra cost and hassle of replacement sensors if you need long-term data. Make long-term, large sensor networks simpler, longer-lasting, and more affordable with the ultra-dependable TEROS 11 soil moisture and temperature sensor

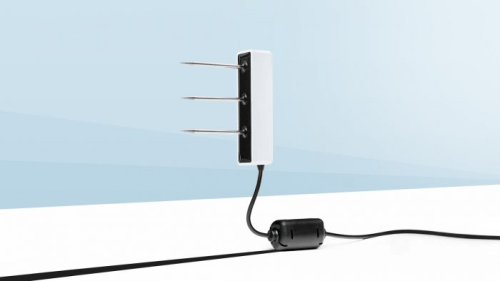

TEROS 12

Soil can be highly variable in space, requiring numerous measurements and frustrating amounts of your research dollars. Not to mention the extra cost and hassle of replacement sensors if you need long-term data. Make long-term, large sensor networks simpler, longer-lasting, and more affordable with the ultra-dependable TEROS 11 soil moisture and temperature sensor.

Features:

- Increased volume of influence (1010 mL)
- Easy installation (minimises air gaps for cleaner readings)
- Electrical conductivity sensor included
- New fast electrical conductivity method for improved EC measurements
- Thermistor embedded in the center needle
- Robust, epoxy body for tough field conditions
- Minimizes salinity and textural effects by using 70 MHz frequency capacitance technology
- Steel needles cut through the soil for better soil-sensor contact
- Easy-to-read voltage output for various data loggers
- Ferrite core eliminates cable noise

Volumetric water content (VWC) specifications

Ranges:

- Mineral soil calibration: 0.00 to 0.62 m3/m3
- Soilless media calibration: 0.0 to 1.0 m3/m3
- Apparent dielectric permittivity (ea): 1 (air) to 80 (water)
- Resolution: 0.001 m3/m3
- Dielectric measurement frequency: 70 MHz

Accuracy:

- Generic calibration: +/- 0.03 m3/m3 (+/- 3.00% VWC) typical in mineral soils that have solution EC less than 8 dS/m
- Medium specific calibration: +/- 0.01 to 0.02 m3/m3 (+/- 1 to 2% VWC) in any porous medium
- Apparent dielectric permittivity (ea): 1 to 40 (soil range) , +/- 1 ea (unitless) 40 to 80, 15% of measurement

NOTE: The VWC range is dependent on the media the sensor is calibrated to. A custom calibration will accommodate the necessary ranges for most substrates.

Temperature:

- Range: -40 to 60 C
- Resolution: 0.1 C
- Accuracy: +/- 1 C from ?40 to 0 C; +/- 0.5 C from 0 to +60 C

NOTE: Temperature measurement, for applicable sensors, may not be accurate if sensor is not fully immersed in the medium of interest, due to longer equilibration time.

Communication specifications:

- Output: 1,000 to 2,500 mV
- Temperature: Operating range: ?40 to 60 C
- Data logger compatibility: METER data loggers (ZL6, EM50/60 series) or any data acquisition systems capable of switched 3.0 to 15 VDC excitation and single-ended voltage measurement at greater than or equal to 12-bit resolution.

Bulk electrical conductivity (ECb):

- Range: 0 to 10 dS/m (bulk)
- Resolution: 0.001 dS/m
- Accuracy: +/- 5% of measurement
- Output: DDI serial or SDI-12 communications protocol
- Data logger compatibility: Any data acquisition system capable of 4.0- to 15-VDC power and serial or SDI-12 communication (see compatibility chart)
- Measurement volume: 1010 mL

Physical specifications:

- Dimensions (LxWxH): 9.4 cm (3.70 in) x 2.4 cm (0.95 in) x 7.5 cm (2.95 in)
- Needle/Probe length: 5.5 cm (2.17 in)
- Cable length: 5 m (standard) 40 m (maximum custom cable length)

NOTE: Contact Customer Support if a non-standard cable length is needed
