Integrated Soil Water Potential Monitoring Station - IC-SNiP-GT3-ML
| The SNiP-GT3 is a 'Sensor Node Integrated Package' for LoRa, LoRaWAN, FSK or CAT-M1 communication of real-time soil tension measurements for
continuous soil monitoring.

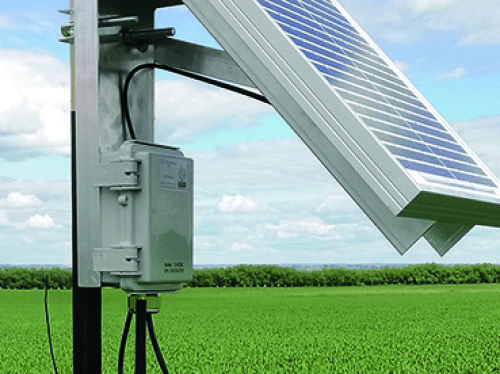

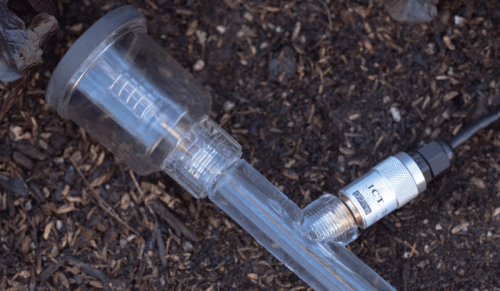

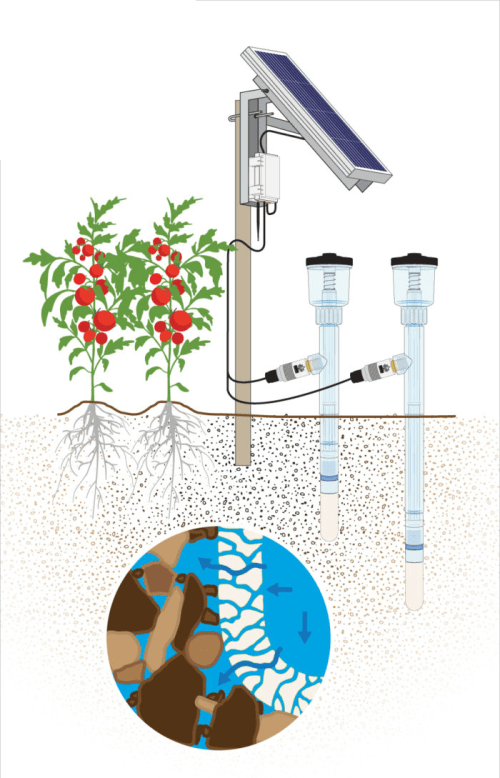

The base SNiP-GT3 integrates an MFR-NODE and 1x GT3-15 Transducer to a site's unique network, communication and power requirements. The MFR-NODE can support a total of 2x GT3-15 Transducers to monitor soil tension at multiple depths. The GT3-15 Transducer couples with a preferred Jet Fill Tensiometer (see available lengths here). The Jet Fill Tensiometer measures the force with which water is held in the soil by the soil particles. MFR-NODE The Multifunction Research Node has been designed to provide flexible communication, sensor and power options. The MFR-NODE supports SDI-12 and 2 x dry contact digital inputs as well as optionally 2x differential / 4x single ended analogue inputs. The MFR-NODE supports sensors with higher power requirements; a solar panel can charge either the internal lithium-ion battery or both the node and sensor can be powered by an external 12V system (e.g. battery or mains source). Optional CAT-M1 provide an option for remote installation and in areas outside the range existing LoRaWAN networks. The optional multiconstellation GNSS ensures you won't lose track of your device. The MFR-NODE has an onboard 8GB SD Card to provide data logging capabilities and full data redundancy in the event of temporary loss of communications or dropped packets; ideal for research applications. GT3-15 Tensiometer Transducer -100 kPa to 100 kPa The vacuum inside the tensiometer is measured by a pressure transducer, which gives a continuous analogue output signal. A resolution of 0.1 kPa (1 cm H2O) can be attained for the GT3 Tensiometer Transducer. - Pressure and suction measurements (+100kPa to -100kPa)
Specifications- Range: +100kPa to -100kPa
|
