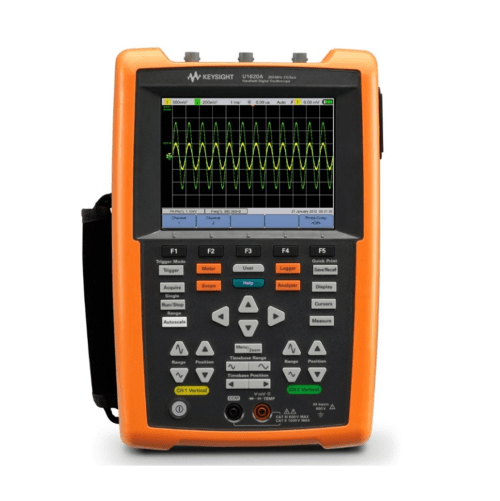

Keysight U1620A Handheld Digital Oscilloscope 200 MHZ

ORDER ME IN
Product code: IC-U1620A

Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The U1620A oscilloscope comes with a 5.7-inch VGA TFT LCD display that enables clear viewing of measurements on-site and on the field. With the option of up to three viewing modes, users can now view waveforms under all lighting conditions, including in indoor, outdoor or dark environments. All three viewing modes have predefined contrast levels for customized lighting conditions and optimized battery life.

Read more

$7,175.00 AUD + GST
 $7,892.50 AUD Inc. GST

The Keysight Technologies, Inc. U1620A is the worlds first handheld oscilloscope with a VGA display. This 100 MHz handheld oscilloscope offers a floating measurement capability with two CAT III 300 V isolated channels. With up to 2 GSa/s sam- pling rate and 2 Mpts memory depth, it captures more waveforms from signals such as pulse width modulated circuit, in rush, transient, and motor start up sequences. The benchtop-like display and dual window zoom allow you to easily identify problem areas and zoom in for more detailed analysis. Now, you can view signals in detail and detect glitches easily.

Features:

- 200 MHz bandwidth with two isolated channels
5.7-inch VGA TFT LCD display with 3 selectable viewing modes (indoor, outdoor and night vision)
2 Mpts memory depth and 2 GSa/s sampling rate allows detailed analysis of captured glitches
10,000-count resolution on DMM displayChannel-to-channel isolation with CAT III 300 V safety ratings
Data logging capability to PC
10 selectable languages on the User Interface (UI) system

Specifications

- Bandwidth (-3 dB): 200 MHz
- DC vertical gain accuracy: +/- 4% of full scale; Full scale is equivalent to 8 div
- Dual cursor accuracy: +/- {DC vertical gain accuracy + 0.4% full scale ( at 1 least significant bit (LSB)}; +/- {4% full scale +/- 0.4% full scale ( at 1 LSB)}
- Maximum Sampling Rate (Single Chanel Operation): 2 GSa/s interleave
- Maximum Sampling Rate (Dual Chanel Operation): 1 GS/s each channel
- Maximum Recording Length (Single Chanel Operation): 2 Mpts interleave
- Maximum Recording Length (Dual Chanel Operation): 1 Mpts each channel
- Vertical resolution: 8 bits
- Peak detection: More than 5 ns
- Average: Selectable from 2 to 8192 in powers-of-2 increments
- Filter: 10 kHz and 20 MHz bandwidth limiters
- Interpolation: (Sin x)/x
- Analog channels: Channel 1 and Channel 2 simultaneous acquisition
- Calculated rise time: 1.75 ns typical
- Vertical scale: 2 mV/div to 50 V/div
- Maximum input: CAT III 600 V (with 10:1 probe)/CAT III 300 V (direct)
- Offset (position) range: +/- 4 div
- Dynamic range: +/- 8 div
- Coupling: DC, AC
- Bandwidth limit: 10 kHz and 20 MHz (selectable
- Probes: U1560-60002 1:1 passive probe/U1561-60002 10:1 passive probe/U1562-60002 100:1 passive probe

Warranty

- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
