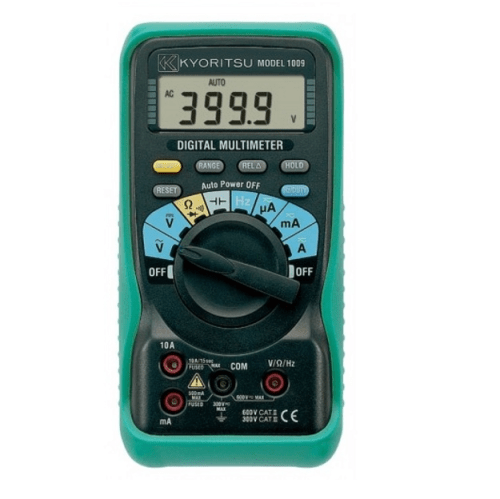

Kyoritsu 1009 Digital Multimeter

ORDER ME IN
Product code: 1009

Backorder Now, once ordered your item will dispatch before the 19th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Features: - Display : 4000 counts. - Auto range and manual range selector provided. (with range hold feature) - Resistance range provides audible continuity test. - Automatically turns power off...

Read more

$189.80 AUD + GST
 $208.78 AUD Inc. GST
Features:
- Display : 4000 counts.
- Auto range and manual range selector provided. (with range hold feature)
- Resistance range provides audible continuity test.
- Automatically turns power off in about 30 minutes to conserve battery life.
- Direct current measurement up to 10A AC and DC.
- With Holster.

Specifications

- DC V: 400mV / 4 / 40 / 400 / 600V (Input Impedance 10 milliohms) +/- 0.6%rdg +/- 4dgt (400mV / 4 / 40 / 400V) +/-1.0%rdg +/- 4dgt (600V)
- AC V: 400mV / 4 / 40 / 400 / 600V (Input Impedance 10 milliohms) +/- 1.6%rdg +/- 4dgt (20 to 400mV) +/- 1.3%rdg +/- 4dgt (4 / 40V) +/- 1.6%rdg +/- 4dgt (400 / 600V)
- DC A: 400 / 4000 uA/ 40 / 400mA / 4/ 10A +/- 2.0%rdg +/- 4dgt; (400 / 4000 uA) +/- 1.0%rdg +/- 4dgt; (40 / 400mA) +/-1.6%rdg +/- 4dgt (4 / 10A)
- AC A: 400 / 4000uA / 40 / 400mA / 4 / 10A +/- 2.6%rdg +/- 4dgt; (400 / 4000 uA) +/- 2.0%rdg +/- 4dgt (40 / 400mA / 4 /10A)
- Resistance: 400 ohms / 4 / 40 / 400 kiloohms / 4 / 40 milliohms +/-1.0%rdg +/- 4dgt (400 ohms / 4 / 40 / 400 kiloohms / 4 milliohms) +/- 2.0%rdg +/- 4dgt (40 milliohms)
- Continuity Buzzer: 400 ohms (Buzzer sounds below 100 ohms)
- Diode Test: 1.5V Release Voltage: Approx. 0.4mA Test Current
- Capacitance: 40 / 400nF /4 / 40 / 100uF
- Frequency: 5.12 / 51.2 / 512Hz /5.12 / 51.2 / 512kHz / 5.12/10MHz
- Duty: 0.1 to 99.9% (Pulse width/Pulse period) +/- 2.5% +/- 5dgt
- Applicable standards: IEC 61010-1 CAT III 300V / IEC 61010-2-031 / IEC 61326
- Power source: R6 (1.5V) x 2
- Dimensions: 161(L) x 82(W) x 50(D) mm
- Weight: Approx. 280g
Includes:
- 1009 Meter
- 7066A (Test leads)
- 8919 (Ceramic fuse [10A/600V]) x 1
- 8923 (Fuse [0.5A/600V]) x 1
- R6 x 2
- Instruction Manual
