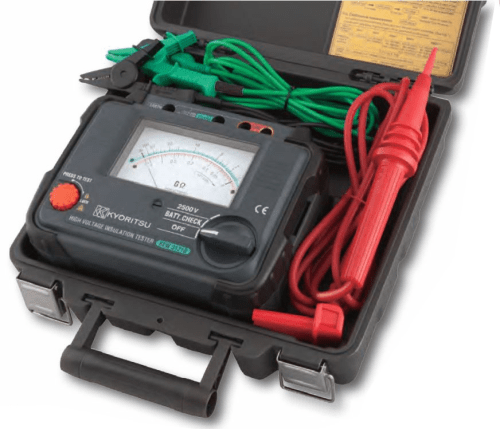

Kyoritsu 3121B Analogue HV 2.5kV Insulation Tester
Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The Kyoritsu 3121B is an analogue, high voltage insulation tester, capable of testing insulation resistance up to 2500V.
Regular price
$1,999.90 AUD
+ GST
$2,199.89 AUD Inc. GST
$2,199.89 AUD Inc. GST
The Kyoritsu 3121B is an analogue, high voltage insulation tester, capable of testing insulation resistance up to 2500V. Simple to operate, the 3121B insulation meter features automatic range detection, which is indicated by the different LEDs.
Rated to CATIV 300V and CATIII 600V, the instrument incorporates newly designed alligator clips. The Kyoritsu 3121B is supplied with a hard carry case, 3m line probe, 3m guard cable, 3m earth cord, hook type prod and batteries.
Features:
- Measures insulation resistance up to 2500V.
- Simple operation.
- Automatic range detection, indicated via different LEDs.
- Newly designed alligator clip.
- Easy to read scale.
- Meets safety standard IEC-61010-1 CAT IV 300V.
- Supplied with hard carry case.
Specifications
Insulation Resistance:
- Test voltage: 2500V
- Measuring ranges: 2 gigaohm/100 gigaohm (Auto-ranging)
- Accuracy: 0.1 - 50 gigaohm: +/- 5%rdg, 0 - 0.1 gigaohm, 50 gigaohm, +/- 10%rdg or 0.5% of scale length
General:
- Applicable standards: IEC 61010-1, 61010-2-030 CAT 300V / CAT 600V Pollution degree 2, IEC 61010-031, IEC 61326-1, 2-2
- Power source (DC12V): LR14/R14 x 8pcs
- Dimensions: 177 (L) x 226 (W) x 100 (D) mm, 300 (L) x 315 (W) x 125 (D) mm (Hard case)
- Weight: 1.6kg approx.
