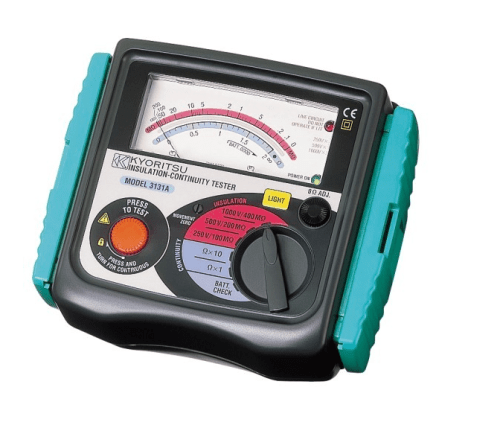

Kyoritsu 3131A Analogue Continuity and Insulation Tester

ORDER ME IN
Product code: 3131A

Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The Kyoritsu 3131A is an analogue insulation and continuity tester, capable of measuring insulation resistance up to 400MΩ at 1000V. The 3131A also features the ability to test continuity up to 20Ω and employs a warning lamp and audible buzzer to indicate a live circuit.

Read more

$849.20 AUD + GST
 $934.12 AUD Inc. GST
The Kyoritsu 3131A is an analogue insulation and continuity tester, capable of measuring insulation resistance up to 400 milliohms at 1000V. The 3131A also features the ability to test continuity up to 20 and employs a warning lamp and audible buzzer to indicate a live circuit.
The Kyoritsu 3131A integrates several safety features including fuse protection (continuity range only). In addition, the front panel incorporates a zero adjust feature to maintain accurate readings.
The 3131A model contains a battery check LED and also a backlight function, to facilitate working in dimly lit environments. Supplied with test leads, cord case, 2 x fuses, batteries and a shoulder strap.
Features:
- Three insulation test ranges (100 milliohms at 250V, 200 milliohms at 500V and 400 milliohms at 1000V).
- Measures continuity up to 20 ohms.
- Live circuit warning lamp plus audible warning.
- Automatic discharge of circuit capacitance.
- Front panel Press to Test with lockdown feature and zero adjust.
- Display backlight.
- Fuse protection (continuity range only).

Specifications

Insulation Resistance:
- Test voltage: 250V/500V/1000V
- Measuring ranges (Mid-scale value): 100 milliohms/200 milliohms/400 milliohms (1 milliohms) / (2 milliohms) / (4 milliohms)
- Output voltage on open circuit Rated test: voltage+20%, -0%
- Nominal current: 1mA DC min.
- Output short circuit current: 1.3 mA DC approx.
- Accuracy: 0.1 - 10 milliohms/0.2 - 20 milliohms/0.4 - 40 milliohms (Accuracy Guaranteed Ranges) +/- 5% of indicated value
Continuity:
- Measuring ranges (Mid-scale value): 2 ohms/20 ohms; (1 ohms)/(10 ohms)
- Output voltage on open circuit: 4 to 9V DC
- Measuring current: 200mA DC min
- Accuracy: +/- 3% of scale length
General:
- Safety Standard: IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61010-2-031, IEC 61557-1/2/4
- IP Rating: IEC 60529-IP54
- EMC Standard: IEC 61326-1
- Power source: R6 (AA) (1.5V) x 6
- Dimensions: 167(L) x 185(W) x 89(D)mm
- Weight: 860g approx.
Included accessories:
- 7122B (Test leads) Pouch for test leads
- 8923 (F500mA/600V fuse) x 2
- R6 (AA) x 6
- 9121 (Shoulder Strap)
- Instruction Manual
