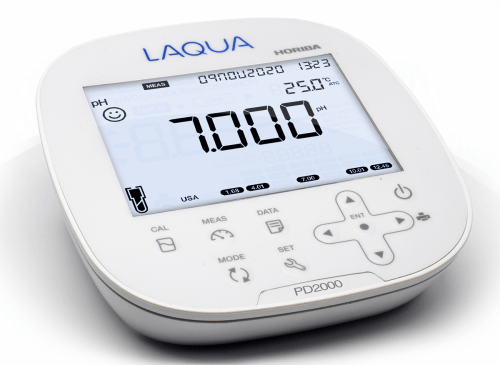

LAQUA PD2000 Benchtop pH/ORP/Ion/DO/BOD/Temperature Meter Kit - PD2000-S
Backorder Now, once ordered your item will dispatch before the 20th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The LAQUA PD2000 benchtop meter is optimized for laboratory measurement of pH, ORP/mV, ion, DO, BOD, and temperature.
- Simple user interface with a large monochrome LCD.
- With 2000 Memory data memory that records measurements with date/time stamped.
- Integrated electrode holder (up to 2 electrodes) that can be attached to either side of the meter.
Regular price
$3,059.70 AUD
+ GST
$3,365.67 AUD Inc. GST
$3,365.67 AUD Inc. GST
The LAQUA PD2000 benchtop meter is optimized for laboratory measurement of pH, ORP/mV, ion, DO, BOD, and temperature.
4 Year Warranty (3 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
PD2000-S Features
- -2.000 to 20.000 pH range
- 2 additional probe inputs for the attachment of optional pressure and temperature probes
- USA, NIST, NIST2, DIN, and Custom pH buffer groups
- Up to 6 pH calibration points
- Offset, segment and average slopes data after pH calibration
- Adjustable calibration alarm up to 90 days
- Up to 5 user-defined ion calibration points
- Compensates salinity, atmospheric pressure, and temperature effects in DO
- Pre-programmed 5-day BOD method with seed correction option
- Up to 2 DO calibration points
- Compatible with galvanic DO electrodes
- Auto stable, auto hold, and real time measurement modes
- Large memory accepting up to 2000 data sets with date/time stamp; password protected set-up mode for security
- Auto data log function with adjustable time interval
- Real time clock facilitating time-dependent functions.
- PC communication via USB cable and complimentary DAS20 data acquisition software. Printer communication via RS232 cable
- 5 Digital, custom LCD display with backlight
- Sleek design with easy-to-use interface and audible key sound feedback
- Small meter footprint with adjustable, integrated electrode stand
- 3 Years warranty

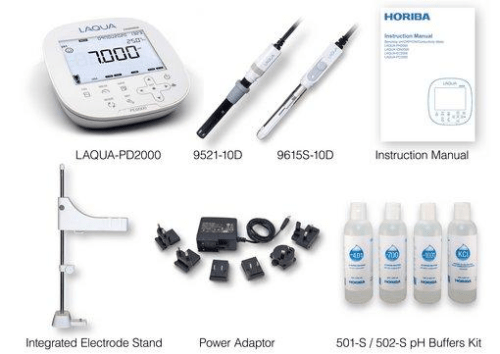

Standard package includes:
- PD2000
- 9521-10D DO electrode with built-in temperature sensor, replaceable DO tip, detachable adapter and stirrer
- 9615S-10D refillable, glass-body pH electrode with built-in temperature sensor
- 502-S USA pH buffers kit
Specifications
pH Range
|
-2.000 to 20.000 pH
|
Resolution
|
0.1 / 0.01 / 0.001 pH
|
Accuracy
|
0.003 pH
|
pH Buffer Groups
|
USA, NIST, NIST2, DIN, Custom
|
Calibration Points
|
Up to 5 (USA, NIST, NIST2) / Up to 6 (DIN, Custom)
|
ORP Range
|
2000.0 mV
|
Resolution
|
0.1 mV
|
Accuracy
|
0.2 mV
|
Calibration Option
|
Yes (Up to 200 mV)
|
Ion Range
|
0.000 g/L to 9999 g/L
|
Units
|
g/L mg/L g/L, ppm ppt, mmol/L mol/L
|
Resolution
|
4 Significant digits
|
Accuracy
|
0.3% full scale or 0.2 mV, whichever is higher
|
Calibration Points
|
Up to 5
|
DO Range
|
0.0 to 60.00 mg/L, 0.0 to 600.0%
|
Resolution
|
0.01 mg/L, 0.1%
|
Accuracy
|
+/- 0.1 mg/L , +/- 1.0%
|
Salinity Compensation
|
0.0 to 40.0 ppt
|
Barometric Pressure Compensation
|
10.0 to 200.0 kPa
|
BOD Measurement
|
5-day BOD with seed correction option
|
DO Probe Type
|
Galvanic integrated with temperature sensor
|
Calibration Points
|
Up to 2
|
Temperature Range
|
-30.0 to 130.0 C / -22.0 to 266.0 F
|
Resolution
|
0.1 C / F
|
Accuracy
|
0.5 C / 0.9 F
|
Calibration Option
|
Yes ( 10.0 C / 18.0 F range in 0.1 C increments)
|
Memory
|
2000
|
Auto Data Log
|
Yes
|
Real-time Clock
|
Yes
|
Date & Time Stamp
|
Yes
|
Measurement Modes
|
Auto Stable / Auto Hold / Real Time
|
Offset & Slope Display
|
Yes (Segment & Average Slopes)
|
Calibration Alarm
|
Yes (Programmable: up to 90 days)
|
Auto Shut-Off
|
Yes (Programmable: up to 30 mins.)
|
Electrode Status
|
On screen display
|
Diagnostics
|
Yes
|
Password Setting
|
Yes
|
Software Upgrade
|
Yes
|
PC / Printer Communication
|
Phono jack (USB / RS232C)
|
Meter Inputs
|
2 x BNC, 2 x phono (ATC), DC sockets
|
Display
|
5" Custom LCD with 320 segments and backlight
|
Power Requirement
|
AC adaptor 100 - 240V, 50 - 60Hz
|
Dimensions & Weight
|
155(L) x 150(W) x 67(H) mm, 770g
|
