Laqua PD220-K Handheld Water Quality Meter (pH/ORP/DO ) Kit
Backorder Now, once ordered your item will dispatch before the 30th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Handheld water quality meter that measures pH and dissolved oxygen (DO). Waterproof, dust proof, eco-friendly, shock and scratch resistant and built for hands-free testing. With phone jack output for connecting the meter to computer for software upgrades and RS232 cable for printer printout. GLP compliant.
Regular price
$2,179.70 AUD
+ GST
$2,397.67 AUD Inc. GST
$2,397.67 AUD Inc. GST
Features:
- Automatic pH calibration - up to 5 points (NIST, USA pH buffers) / up to 6 points (DIN pH buffers)
- 0.01 pH resolution
- Offset and average slope display
- Automatic / manual temperature compensation and temperature calibration function
- Can measure OPR using a separate probe (optional)
- ORP calibration option
- Dissolved oxygen (DO) concentration in ppm (mg/L) and % saturation
- 0.01 mg/L or 0.1% DO resolution
- Compensates salinity, temperature, and atmospheric pressure
- Up to 2 DO calibration points
- With real-time clock and date/time stamp for GLP compliance
- Auto log data; built-in memory can store up to 1000 data
- Auto shut-off (programmable: up to 30 minutes)
- Auto stable, auto hold, and real time measurement modes
- Calibration alarm (programmable: up to 90 days)
- Built-in electrode holder allows 2 electrodes to be attached
- Monochrome LCD with white LED backlight: 50 x 50 mm
- Phone jack output for connecting the meter to computer via PC (USB) cable for data collection and software upgrade and to printer via printer (RS232)
cable for printout
- Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip
- Powered by 2 x AA batteries
- Packaged with electrodes and calibration solutions in carrying case
- 3 years meter warranty
Specifications
pH:
- Range: -2.00 to 16.00 pH
- Resolution: 0.01 pH
- Accuracy: +/- 0.01 pH
- Calibration Points: Up to 5 (USA & NIST) / Up to 6 (DIN)
- Buffer Options: USA, NIST, DIN
ORP:
- Range: +/- 2000 mV
- Resolution: 0.1 mV (less than +/- 1000 mV), 1 mV (greater than or equal to +/-1000 mV)
- Accuracy: +/- 0.3 mV (less than +/- 1000 mV), 0.3% of reading (greater than or equal +/- 1000 mV)
- Calibration Option: Yes
Dissolved oxygen:
- Range: 0.0 to 20.00 mg/L/0.0 to 200.0%
- Resolution: 0.01 mg/L, 0.1%
- Accuracy: +/- 0.1 mg/L
- Salinity Compensation: 0.0 to 40.0 ppt
- Barometric Pressure Compensation: Yes
- Temperature Compensation: Yes
- DO Probe Type: Galvanic integrated with temperature sensor
- Calibration Points: Up to 2
Temperature:
- Range: -30.0 to 130.0 C/-22.0 to 266.0 F
- Resolution: 0.1 C/F
- Accuracy: +/- 0.5 C / +/- 0.9 F
- Calibration Option: Yes
Others:
- Memory Data: 1000
- Auto Log Data: Yes
- Measurement Modes: Auto Stable, Auto Hold, Real Time
- Offset & Average Slope Display: Yes
- Calibration Alarm: Yes (Programmable: up to 90 days)
- Auto Shut-Off: Yes (Programmable: up to 30 minutes)
- Electrode Status: Yes (On screen display)
- Diagnostic Messages: Yes
- Software Upgrade: Yes via PC (USB) cable PN 3200779639
- PC Communication: Yes via PC (USB) cable PN 3200779639
- Printer Communication: Yes via Printer (RS232) cable PN 3200779638
- Meter Inputs: 2 x BNC (for pH and DO electrodes), 2 x phono (for temperature sensors)
- Meter Output: phono (for software upgrade only)
- Display: Custom LCD with backlight
- Housing: IP67, shock & scratch resistant, non-slip
- Power Requirement: 2 x AA batteries
- Battery Life: > 500 hours
- Meter Dimensions: 160 (L) x 80 (W) x 40.60 (H) mm
- Meter Weight: Approx. 260g (with batteries) / 216g (without batteries)

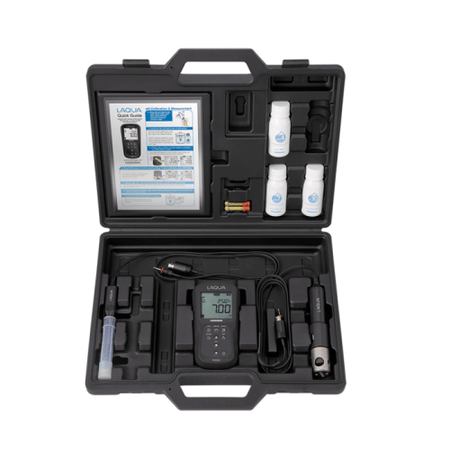

Includes:
- LAQUA PD220 dual channel pH/ORP/DO/Temp meter
- 2 x AA batteries
- Manual and quick guide
- 9652-20D plastic-body, gel-filled pH electrode with integrated temperature sensor, 2m cable
- 9552-20D Galvanic DO probe with integrated temperature sensor, 2m cable
- pH 4.01, 7.00, 10.01 buffers (60ml each)
- Electrode adapter
- Carrying case
