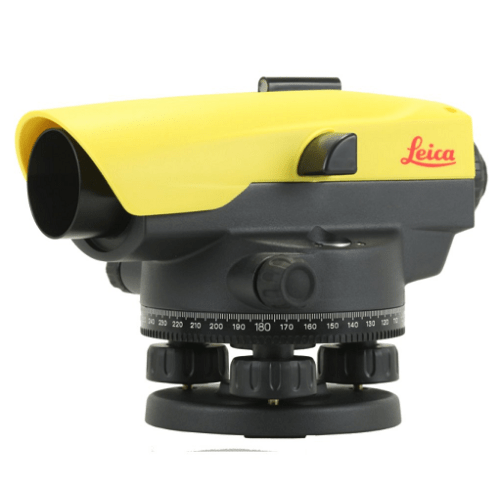

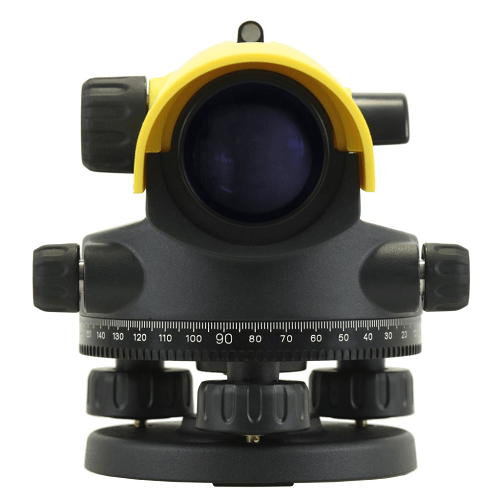

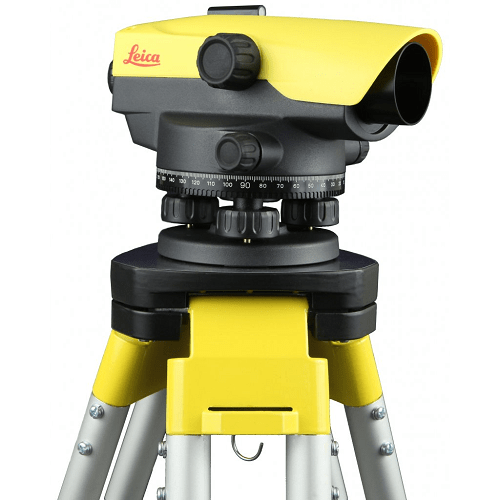

LEICA NA524 Auto Level, 24 x optical zoom, 1km run = 1.9mm
Backorder Now, once ordered your item will dispatch before the 19th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Automated, optical level with 24 x optical zoom. 1km run = 1.9mm.
Regular price
$480.00 AUD
+ GST
$528.00 AUD Inc. GST
$528.00 AUD Inc. GST
Accurate measurements whatever the conditions.

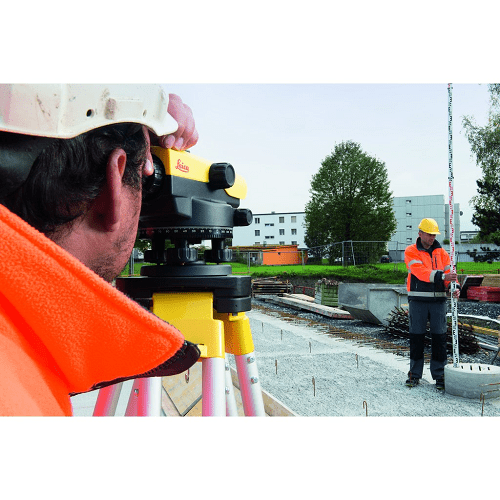

With the many obstructions and uneven surfaces, construction and building sites are full of levelling challenges. To ensure the straightest and safest construction possible, you need a reliable instrument for all your levelling needs.
Features:
- Leica Geosystems is a pioneer in manufacturing levels and understands the needs of construction workers
- Whatever your need, basic or more, Leica levels are your answer
- With a unique design, these levels produce the highest quality results at the best price value
- The unique design of the Leica NA500 Series reflects the high quality of technology featured inside each level
- The Leica NA500 Series is ruggedly made to withstand the harshest elements
- These levels, while highly accurate, provide quick and easy measurements
- Unbeaten warranty and service offering
- Leica Geosystems offers solutions for all your construction needs
- IP57
Specifications
- Standard deviation for 1 Km Double levelling (ISO17123-2): 1.9 mm
- Telescope image: upright
- Magnification: 24x
- Objective aperture: 36 mm
- Shortest target distance from instrument axis: <1.0 m
- Field of view at 100 m: < 2.1 m
- Multiplication factorL: 100
- Additive constant 0: 0
- Working range: +/15'
- Setting accuracy (standard deviation): < 0.5"
- Sensitivity: 8? / 2 mm
- Operating temperature range: ?20 C to +40 C
- Graduations: 360 degrees
- Graduation interval: 1 degree
- Weight: 1.5 kg
