Home > LH-XZ03 Portable Turbidity and Suspended Solids Meter
LOHAND Biological

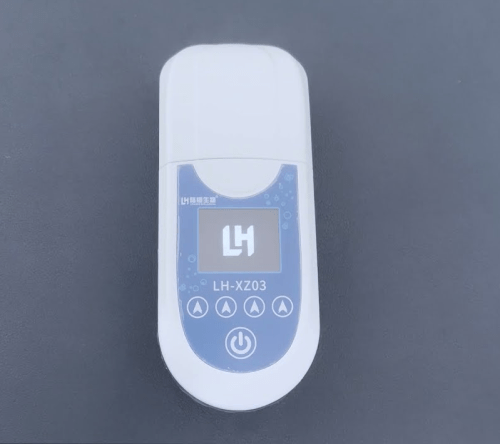

LH-XZ03 Portable Turbidity and Suspended Solids Meter

1 In Stock
Product code: IC-LH-XZ03

The LH-XZ03 portable turbidity and suspended solids meter combines the scattered light method and the transmitted light method, and uses a near-infrared light source to eliminate chromaticity interference for accurate measurements.

-Measurement range: 0~1000NTU turbidity; 0 to 1000mg/L total suspended solids

-Built with LED light source that conforms to IS07027 standard.

-Waterproof.

Read more

$1,429.00 AUD + GST
 $1,571.90 AUD Inc. GST
The portable turbidity/Total suspended solids analyzer combines the scattered light method and the transmitted light method, and uses a near-infrared light source to eliminate chromaticity interference.
Two detectors, 90 and 180 degrees, are set in the instrument. The 180 degrees detector receives the transmitted light and the 90 degrees detector receives the scattered light. Measure the ratio of the intensity of scattered light and transmitted light, and calculate the concentration of suspended solids and turbidity in the sample.

Specifications

- Range: 0 to 1000NTU turbidity; 0 to 1000mg/L total suspended solids
- Indication error: +/- 0.3NTU or +/- 8% turbidity; +/- 0.3mg/L or +/- 8% total suspended solids
- Repeatability: less than 10NTU,less than or equal to +/- 0.1NTU; more than 10NTU, less than or equal to +/- 1% turbidity; less than 10mg/L, less than or equal to +/- 0.1mg/L; more than 10mg/L, less than or equal to +/- 1%total suspended solids
- Calibration: Up to 8 points calibration (optional calibration solution) turbidity; One point calibration total suspended solids
- Zero drift: less than or equal to +/- 0.3%FS/30min
- Working temperature: 5 to 40 C
- Storage temperature: -10 to 55 C
- Humidity: 0 to 80%RH
- Power: lithium battery(Optional dry battery)
- IP grade: IP65
- Size: 170 x 72 x 44mm
- Weight: 290g
