LOGEX - LogTag External Probe-Ready

ORDER ME IN
Product code: LOGEX-No-Probe

Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

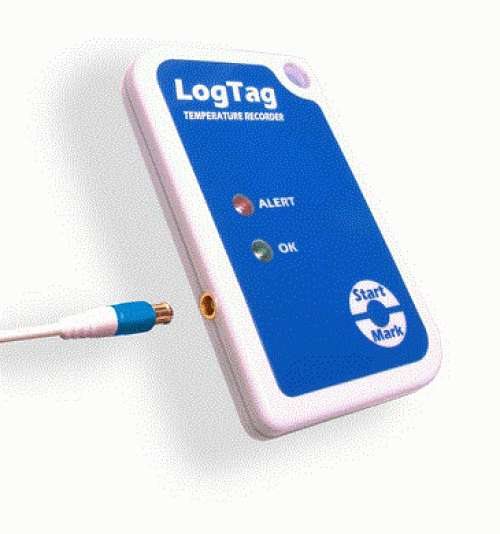

LogTag External Probe-Ready Data Logger. Select additional probes if needed under options.

Read more

$130.00 AUD + GST
 $143.00 AUD Inc. GST

The LogTag Remote Probe Temperature Recorder measures and stores 8031 temperature readings over -40 C to +99 C (-40 F to +210 F) measurement range.

Using the LogTag Interface and LogTag's freely available companion software LogTag Analyser , the LogTag is easily set-up for recording conditions including delayed start, sampling interval, number of readings, continuous or fixed number of readings and configuration of conditions to activate the ALERT indicator.

Readings are downloaded using LogTag Analyser which provides facilities for charting, zooming, listing data statisticsand allowsexporting the data to other applications such as Excel.


Product Highlights

- Alert indicator - indicates if readings are outside of preset limits
- OK indicator indicates if still recording and if readings within configured limits
- Inspection mark in log by push button
- Push Button Logging start
- Rapid Download! Takes only seconds to download recordings
- 'Pre-Start' logging - Logtag can be configured to record even if it has not been started.
- High performance at low cost
- Credit card sized case: thin enough to be easily mailed "letter rate".
- Real time clock records time & temperature simultaneously
- Easy to use LogTag Analyser software that runs on any PC configures LogTag for recording then downloads resulting data for analysis. Data can also be exported to formats compatible with other applications such as Excel
- Re-calibration to achieve higher accuracy possible
- High quality gold plated remote sensor connector
- Interchangeable Probes: LogTag remote temperature probes are interchangeable provided they are changed with LogTag ST100 type remote temperature sensors.


Specifications


- Product Model: TREX-8
- External Sensor Measurement Range: -40 C to +99 C (-40 F to +210 F)
- Operating Temperature Range: -40 C to +85 C (-40 F to +185 F).
- Storage Temperature Range: -10 C to +55 C (14 F to +131 F).
- Sensor Reaction Time: Typically less than 2 minutes (T90) in moving air (1m/s) for ST100T, ST100H and ST100S types.
- Recording Capacity: 8031 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging.
- Sampling Interval: Configurable from 30 seconds to several hours.
- Logging Start Options: Push button start or specific date & time. Optional start delay of up to 18 hours.
- Recording Indication: Flashing "OK" indicator / flashing "ALERT" indicator.
- Download Time: Typically less than 5 seconds for full memory (8031 readings), depending on computer or readout device used.
- Power Source: 3V LiMg battery.
- Battery Life: 2 to 3 years of normal use (based on 15 minute logging, download data monthly.
- Real Time Clock: Built-in real time clock. Rated accuracy: 25ppm @ 25 C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 +- 0.006ppm/C (I.e typically +/- 0.00294 seconds/day/C).
- Standard Remote Sensor Cable LengthStandard: 1.5m (4'11). Extended: 3m (9'10) (Recommended maximum).
- Remote Sensor Cable Type: PTFE (FDA food contact rated), coaxial.
- Size: 93 mm (H) x 54.5 mm(W) x 8.6 mm (T).
- Weight: 41g.
- Case Material: Polycarbonate.
Rated Temperature Reading Accuracy:
- Better than +- 0.5 C for -10 C to +40 C.
- Better than +- 0.7 C for -10 C to -30 C and +40 C to +60 C.
- Better than +- 0.8 C for -30 C to -40 C and +60 C to +80 C.
- Better than +- 1.0 C for +80 C to +99 C.
Rated Temperature Reading Resolution:
- Less than 0.1 C for -40 C to +40 C.
- Less than 0.2 C for +40 C to +80 C
- Less than 0.6 C for +80 C to +99 C


Probe options:

- Logtag ST100B - Logtag Bare Probe Untipped - Bare sensor without stainless sheath ready for fitting to custom probe assembly. Not rated for food contact or environmentally rated. Available cable lengths: 1.5 or 3 meters
- Logtag ST100J: 40 mm tip length, 3.2 mm diameter. Available cable lengths: 1.5 or 3 meters
- Logtag ST100K: 65 mm tip length, 3.2 mm diameter. Available cable lengths: 1.5 or 3 meters
- Logtag ST100L: 90 mm tip length, 3.2 mm diameter. Available cable lengths: 1.5 or 3 meters
- Logtag ST100S: 30 mm tip length, 5 mm diameter. Available cable lengths: 1.5 or 3 meters
- Logtag ST100T: 140mm tip length, 5 mm diameter. Available cable lengths: 1.5 or 3 meters
- Logtag ST100H: Handled with 105mm tip length, 5mm diameter. Available cable lengths: 1.5 or 3 meters
