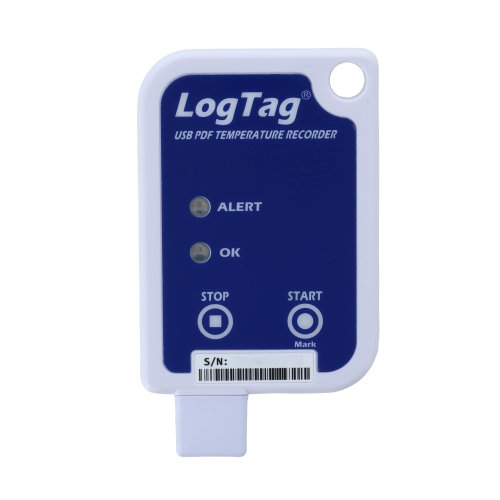

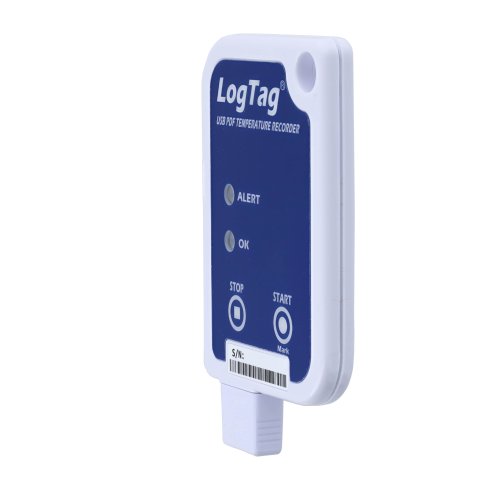

If you only need to monitor one or two fridges or freezers, then this USB model provides all the features of the standard LogTag without the need to buy a LogTag Interface. (If you are monitoring more than that then the standard LogTag is more cost effective.)
You need to install a copy of the free LogTag Analyser software on your Windows PC to program the logger prior to use.

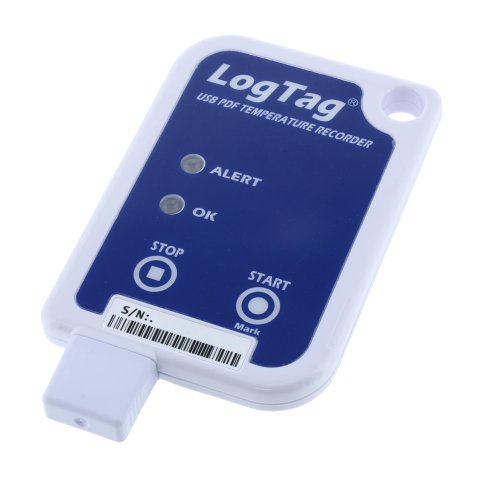

- Push Button Start: Configure the Tag to use Push Button Start and there is no rush about getting the Tag from the Reader to the refrigerator. Logging will not begin until the Start button is pushed.

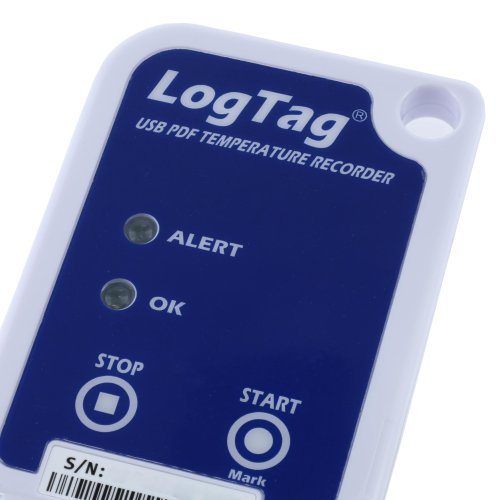

- Visual Alerts: If the temperature inside the package rises above the alert level, the red LED will flash, giving you a visual notification that there has been a problem.
- Easy to use: The LogTag is so simple to set up and use that you'll be an expert in no time. We have a full LogTag training program on our site.
- The automatically generated PDF make this an ideal logger for tracking your cold chain transport.
- Pack a USB LogTag with your goods and the receiver can plug it into any PC (no software needed) and download the report.
Specifications
- Sensor Measurement Range: -25 C to +70 C (-13 F to +158 F)
- Operating Temperature Range: 25 C to +70 C (-13 F to +158 F).
- Storage Temperature Range: 0 C to +40 C (32 F to +104 F).
- Sensor Reaction Time: Typically less than 7 minutes (T90) in moving air (1m/s) in EN12830:1999.
- Recording Capacity: 16,129 temperature readings. 56 days @ 5min logging, 168 days @ 15min logging.
- Sampling Interval: Configurable from 1 minute to 18 hours.
- Logging Start Options: Push button start (with configurable start delay from 1 minute to 72 hours) or specific date & time.
- Recording Indication: Flashing "OK: indicator / flashing "ALERT" indicator.
- Download Time: Typically less than 5 seconds for full memory (8031 readings), depending on computer or readout device used.
- Power Source: 3V LiMg battery.
- Battery Life: Typically 2 to 3 years with normal use (15 minute sampling interval, download data monthly), provided Logger is kept within the Storage Temperature Range when not in use.
- Real Time Clock: Built-in real time clock. Rated accuracy +/- 25ppm @ 25 C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 +/- 0.006ppm/C (I.e typically +/- 0.00294 seconds/day/C).

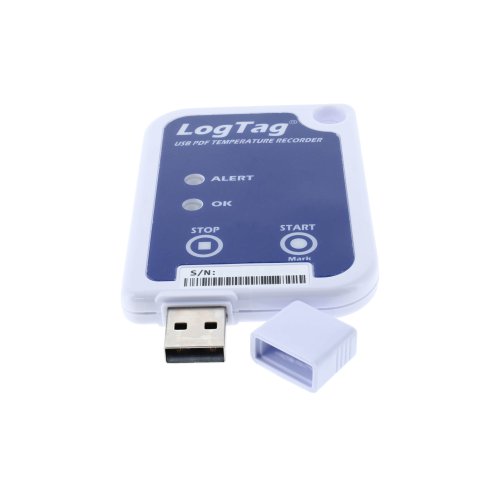

- Connection Interface: USB 2.0, A-type plug
- Software: PDF Reader, LogTag Analyzer 2.5 or higher
- Size: 93 mm (H) x 54.5 mm(W) x 8.6 mm (T).
- Weight: 36g.
- Case Material: Polycarbonate.
- Better than +/- 0.5 C (+/- 0.9 F) for -20 C to +40 C (-4 F to +104 F).
- Better than +/- 0.7 C (+/- 1.3 F) for -25 C to -20 C (-13 F to -4 F) & +40 C to +60 C (+104 F to +140 F).
- Better than +/- 0.8 C (+/- 1.5 F) for +60 C to +70 C (+140 F to +158 F)
Rated Temperature Reading Resolution:
- Less than 0.1 C/F
