Low Cost/General Purpose Ultrasonic Wall Thickness Gauge - IC-TI-44NA
Backorder Now, once ordered your item will dispatch before the 13th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The new CHECK-LINE TI-44NA Ultrasonic Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
Regular price
$1,999.00 AUD
+ GST
$2,198.90 AUD Inc. GST
$2,198.90 AUD Inc. GST
Please Note: Couplant gel required for use, not included, available for separate purchase and can be found
here.

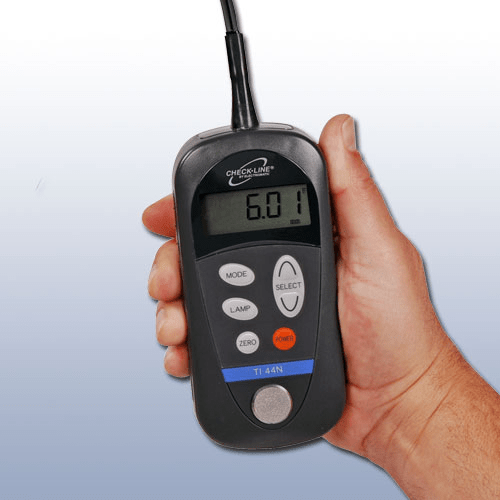

The new CHECK-LINE TI-44NA Ultrasonic Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The attractive, ergonomic housing design is extremely compact, lightweight and rugged. It fits comfortably in the palm of your hand and incorporates a back light that illuminates the LCD in poorly lit areas. This product is similar to our TI-45N, however the probe is hard-wired to the gauge and is NOT removable as in the TI-45N.
Features:
- TI-44NA includes new Pipe Mode for stable measurement on small diameter pipe (1" and larger)
- Resolution of 0.001" (0.01mm) with Switch-selectable units of inches or mm
- Extremely small & lightweight operating from a single AA battery.
- Fixed-mounted probe is connected to gauge with one meter flexible cable (39")
- Built-in calibration test plate on front of gauge housing
- Quick display update with last reading retained on the display
- Display symbols alert user to poor coupling and low battery conditions
- NIST-Traceable Calibration Certificate & Test Report is optionally available
Specifications
- Range in Steel: 0.040 - 8.000" (1.0 - 200.0 mm)
- Resolution: 0.001" (0.01 mm)
- Display: 4.5 - digit LCD display, 0.39" (10mm) high with push button illumination
- Velocity Range: 3,250 - 39,000 ft/sec (1,000 - 12,000 m/sec), continuously adjustable
- Probe: 5 MHz, .39" (10 mm) diameter
- Cable: 39" (1m) 2-wire, long cable with fixed-mounted to gauge body
- Minimum Pipe Size: 1 nominal (30mm) steel pipe
- Temp. Limits (Ambient): 25 to 125 F (-5 to 50 C)
- Temp. Limits (Material): -15 to 140 F (-10 to 60 C)
- Calibration Plate: 0.250" (6.35mm) steel plate, built into the front of the housing
- Battery Type: 1x AA battery
- Battery Life: 200 hours
- Weight Gauge: 7 ounces (200 g)
- Size: 5.2" x 2.7" x 1.1" (131 x 68 x 29 mm)
- Warranty: Gauge-1 years; Probe-90 days
- Accessories Included: 2 Ounce bottle of couplant
