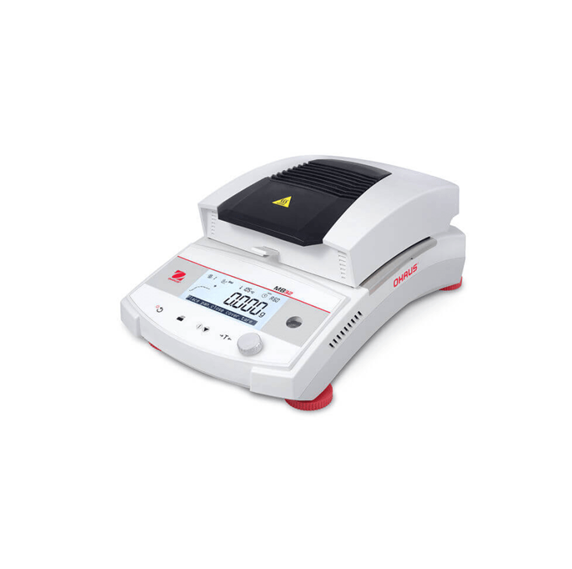

MB32 Moisture Analyzer

The Ohaus Carbon Fiber Moisture Analyzer can be used to determine the moisture content of practically any substance. The instrument operates on the thermo-gravimetric principle:

At the start of the measurement, the Moisture Analyzer determines the weight of the sample; the sample is then quickly heated by the integral carbon fiber dryer unit and moisture vaporizes. During the drying operation, the instrument continuously determines the weight of the sample and displays the result. On completion of drying, result is displayed as % moisture content, % solids, weight or % regain.

Features:

- Extremely rugged and chemically resistant construction.
- Ergonomic operating controls and a large, easily readable display.
- Easy to follow menus for simplified operation.
- Built-in functions for manual, automatic timing, printing intervals.
- Built-in selectable drying profiles.
- Built-in library that stores method data
- Built-in RS232 and USB interface.
- Any of the eleven languages (English, Spanish, French, German, Italian, Polish, Portuguese, Chinese, Japanese, Korean, Turkish)
- Display contains all test data during drying process.
- A variety of optional accessories includes disposable pan liners, temperature calibration kit, interface communication cables, and printer.

Specifications

- Maximum Capacity: 90 g
- Readability Moisture Content: 1 mg/0.01%
- Pan Size: 3.5 in (90 mm)
- Heater Type: Carbon fiber
- Communication: USB device; RS232
- Recommended Moisture Content MC%: 0.5 % to 100 %
- Adjustment: Temperature Adjustment - Mechanical (100 C, 160 C); Weight Adjustment - External (50g)
- Dimensions: 13.9 in x 5.4 in x 8.3 in (352 mm x 138 mm x 210 mm) (LxHxW)
- Display: 4 inch LCD with 2nd line display
- Display Results: RG%; Temperature; DC%; Time; Method No.; MC%; Weight
- Heating Profiles: Standard; Fast
- In-Use Cover: Included
- Moisture Range: 0.01 % to 100 %
- Net Weight: 4.3 kg
- Operating Range (Temp.): 10 to 40 C
- Operation Instructions: On-screen Instruction; Progress Indicator
- Repeatability: 0.02% (10g sample); 0.15% (3g sample)
- Shut-Off Criteria: 3 Auto; Timed; Manual
- Temperature Range: 40 to 180 C
- Test Library: 2
