HSPA Met Station-Wind, Temp/RH, Press., Soil Moisture and Temp
Backorder Now, once ordered your item will dispatch before the 18th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The Dyacon MS-140-104 is a preconfigured, solar powered, weather station with an embedded cell phone mechanism, configured specifically to meet agricultural (e.g., the grower's) needs. Weather reports may be requested through simple text messages, providing a reliable and universal weather report interface. Client needs to supply SIM with DATA and SMS Capability - Please contact Instrument Choice to confirm what is required.
Regular price
$5,163.00 AUD
+ GST
$5,679.30 AUD Inc. GST
$5,679.30 AUD Inc. GST
The Dyacon MS-140-104 is a solar-powered weather station with embedded cell phone that provides excellent installation flexibility and portability.
The MS-140-104 has been configured specifically to meet agricultural (e.g., the grower's) needs. The ability to monitor local soil and weather conditions helps growers be able to more effectively evaluate irrigation requirements and manage resource allocation. It includes a standard complement of air and wind sensors as well as soil moisture and soil temperature gauges. Upon installation of the weather station, weather reports and alarms will be sent directly to the user's cell phone as text messages.
No special software, websites, or computer programs are required. Alerts can be set for low soil moisture, temperatures outside a designated range, lightning, high wind, humidity, and other conditions.
The MS-140-104 is designed to be efficiently and easily set up right out of the box; adding the optional Dyacon Tripod-1 is particularly helpful for easy setup. Tripod not included.
Features:

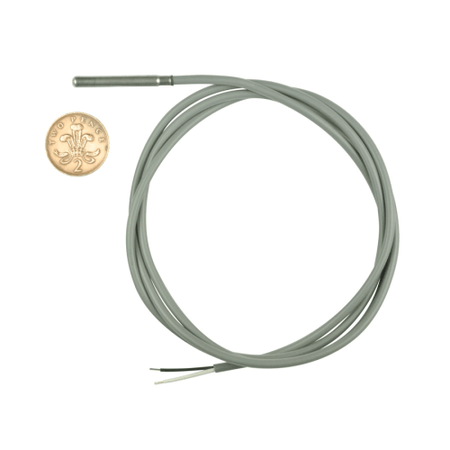

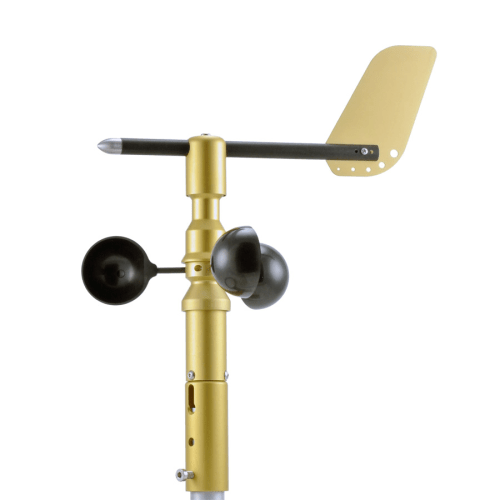

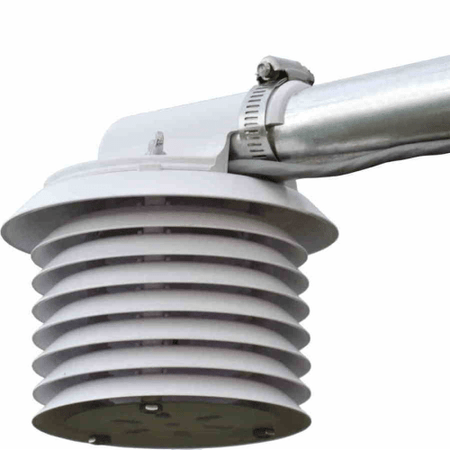

- Shipped with the control module, wind sensor (WSD-1), air sensor (TPH-1), solar module, soil moisture sensor, and submersible temperature probe.
- This wireless weather station includes an integrated cell phone for SMS weather reports and data uploads to Weather Underground.
- A 24-bit ADC digital pressure sensor has the capability of delivering 10 cm (+/- 1.5 mbar) resolution. Barometric pressure is contained in the TPH-1 sensor.

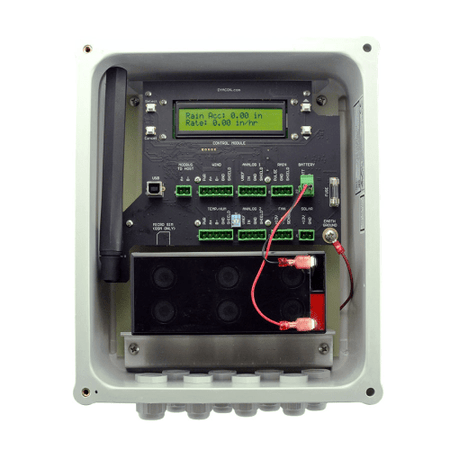

- The included Dyacon control module utilizes a cellular module for command and control as well as for weather reports.
- The control module is equipped with both USB device and Modbus slave ports for connecting to data hosting equipment, such as PCs or programmable logic controllers (PLCs).
- A 10 W solar module powers the MS-140-104 and charges an internal battery. The system is designed to have five days of normal operation without solar input. An adaptive power algorithm extends critical operation for several more days.
- Weather station MS-140-104 is designed to be installed and maintained by the user. Sensors shipped with the unit are preconfigured and tested prior to shipment. Full instructions are provided so that setup can be done by the user without technical support.
Other benefits:
- SMS (text message) weather reports
- USB configuration
- Air temperature
- Relative humidity
- Barometric pressure
- Soil moisture sensor
- Soil temperature sensor
- Lightning detection
- Rain gauge (optional add-on)
DyaconLive:

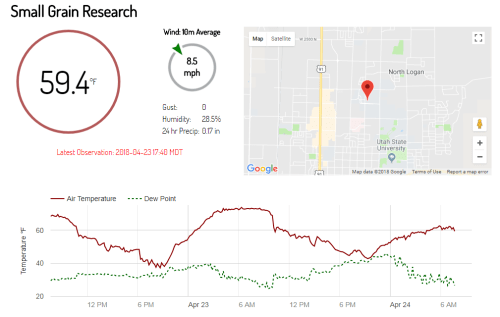

Dyacon now offers a dedicated weather station webportal for real-time weather station data. Each weather station equipped with a Dyacon cell phone plan includes this feature.
DyaconLive offers features not found on other personal weather station portals:
- Displays all sensor data.
- Charts solar power and battery status.
- Shows weather station parameters, including firmware version, radio signal strength, and more.
- Admin user with user access controls.
- Both public and private accessibility controls.
