MeteoWind IoT Sigfox MeteoWind Compact IoT wireless module
Barani Design's compact anemometer and wind direction sensor. Wireless, easy-to-install, and no batteries to change. Meets all World Meteorological Organization measurement standards (WMO). Connects directly to the Sigfox network, check your coverage here; https://www.sigfox.com/en/coverage
This station is normally priced at $779+GST!
Regular price
$619.00 AUD
+ GST
$680.90 AUD Inc. GST
$680.90 AUD Inc. GST
Regular price
$619.00 AUD
+ GST
$680.90 AUD Inc. GST
$680.90 AUD Inc. GST
Regular price
Sale
$779.00 AUD+ GST
$856.90 AUD Inc. GST Sale price
$856.90 AUD Inc. GST Sale price

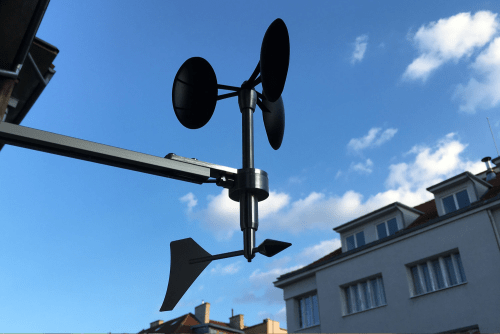

Barani Design's compact anemometer and wind direction vane sensor with ultra-low power & no dead spot. Meets all World Meteorological Organization measurement standards of measurement. No wires to connect or batteries to change. No connectors to break.
Designed for SigFox wireless low-power networks. Check your Sigfox coverage here.
Featuring an elliptical cup design, this anemometer offers superb aerodynamics in a more compact and cost effective form with an anodized
aluminum body suitable for most environments. Offers long-term wind measurement stability, serviceable ball bearings & reliability
in all environments.
Features:
- Fast response rate to accurately capture wind gusts
- Minimal over-speeding for accurate wind energy measurement
- Solar powered
- Robust two arm reinforced rotor cups
- Flat elliptical cup shape offers superb snow shedding and very good hail resistance
- All-metal anodized-aluminum body and wind vane design
Specifications
Wind speed:
- Range: 0-100 m/s
- Resolution: 0.1 m/s
- Accuracy: less than 2% of measured value (0.3 - 50 m/s) or less than +/- 0.3 m/s, +/- 0.05m/s (4-16m/s) with MEASNET CALIBRATION
- Sampling rate: 2 pulses per revolution
Wind direction:
- Range: 0-360 degrees
- Resolution: 1
- Accuracy: 3 degrees, no dead spot
- Sampling rate: 4Hz
Other wind speed and direction sensor specifications:
- Linearity: R2 greater than 0.99990
- Tilt angle sensitivity: Cosine response, see graph. (Horizontal wind speed measurement)
- Starting wind speed: less than 0.2m/s
- Default linearity constants: (Calibration equation coefficients) Defaults: Slope = 0.65 m/s; Offset = 0.2 m/s (m/s = 0.65*freq(Hz)
+ 0.2)
- Distance constant (Delay distance): less than 1.5m (est.) (per ASTM D 5096-96)
- Wireless: Sigfox; RC4
- Battery life without sun: Continuous operation for over 4 months without sun. (1 day of sunshine = 20 days of operation
- Operating temperature: -30 C to +80 C
- Operating humidity range: 0% to 100% RH
- Survival wind speed: greater than 8 5m/s (306 kph, 190mph)
- IP Protection rating: IP55W (DIN 40050) anemometer, IP67W wireless module
- Weight (mass): Anemometer = aprox. 150g, wireless module = aprox. 100g
- Dimensions: Anemometer rotor diameter = 164mm, Wind vane radius =111mm, Total height = 240mm
Warranty
- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
