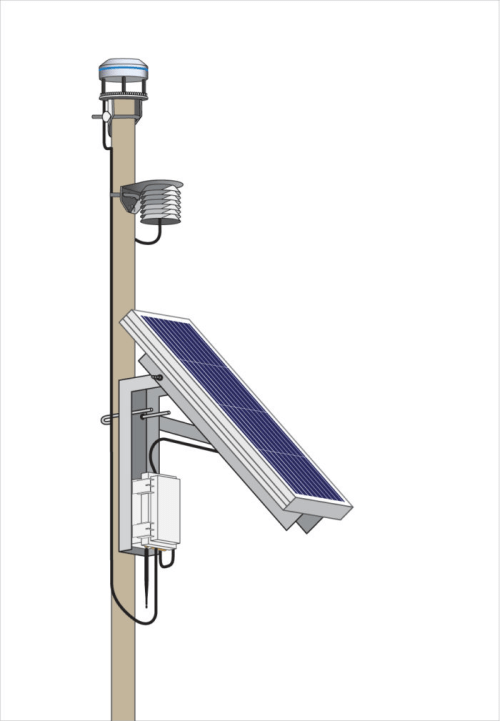

Microclimate Station with Wind Speed and Direction - IC-SNiP-MC24-SL

The SNiP-MC24 is 'Sensor Node Integrated Package' for LoRa, LoRaWAN, FSK or CAT-M1 communication of real-time weather parameters within a microclimate atmospheric zone for continuous environmental monitoring of a particular site.

The base SNiP-MC24 integrates 1x S-NODE and two sensors to a site's unique network, communication and power requirements: 1x ATMOS-14 Temp & Humidity Sensor, and 1x ATMOS 22 Sonic Anemometer. The S-NODE can support an added 2x Sensors.

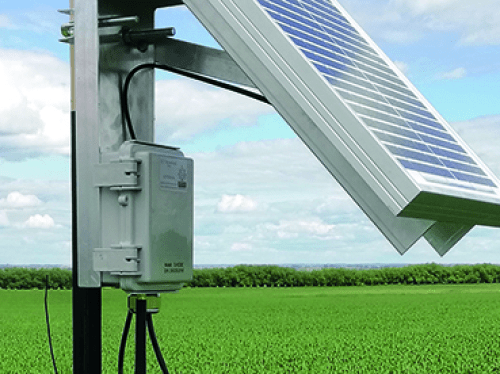

S-NODE: SDI-12 Node

The S-NODE has been designed to support the broad suite of SDI-12 based environmental sensors. The S-NODE can support sensors with higher power requirements; a solar panel can charge either the internal lithium-ion battery or both the node and sensor can be powered by an external 12V system (e.g. battery or mains source). The S-Nodes SDI-12 communications can be customised to allow for interfacing with any SDI-12 sensor.

A decoder suitable for TTN will be provided based upon sensor configuration.

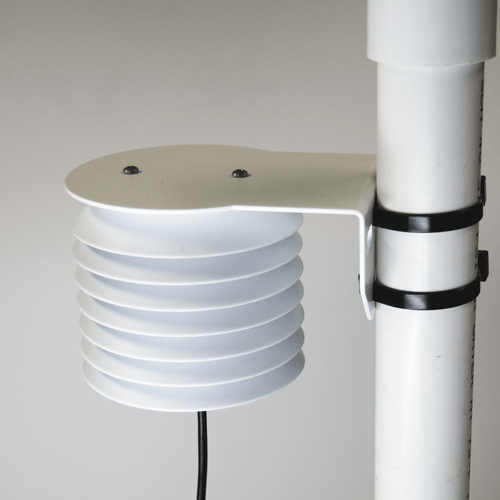

ATMOS 14 Temp & Humidity

Thousands of engineers and ecologists already depend on the ATMOS 14 for straightforward measurements. Whether you're using the EM60G to look at plant emergence, leaf area index, or fractional interception, there isn't an easier way to benchmark your data. The ATMOS 14 is a versatile, and fast sensor designed to make taking temp/RH measurements simpler and therefore less work.

- Microclimate measurement made simple: Four sensors in one - air temperature, relative humidity, barometric pressure, and vapour pressure.
- Plug and use: Simply plug the ATMOS 14 sensor and ist ready to use; no need for wires, additional software or installation.
- Rugged and accurate: Weatherproof and compact to fit into most work spaces or environments

Specifications

Relative Humidity:

- Range: 0 to 100% RH
- Accuracy: Sensor measurement accuracy is variable across a range of temperatures.
- Equilibrium time: less than 40 s (response time in 1 m/s air stream)
- Hysteresis: less than 1% RH typical
- Long term drift: less than 0.5% RH/year typical

Temperature:

- Range: - 40 to 80 C
- Resolution: 0.1 C
- Accuracy: Sensor measurement accuracy is variable across a range of temperatures.
- Equilibrium time: less than 400 s
- Long term drift: less than 0.04 C/year typical

Vapor pressure:

- Range: 0 to 47 kPa
- Resolution: 0.01 kPa
- Accuracy: Sensor measurement accuracy is variable across a range of temperatures.

Barometric pressure:

- Range: 49 to 109 kPa
- Resolution: 0.01 kPa
- Accuracy: 0.4 kPa

General specifications:

- Dimensions: 1.96 cm (dia) x 5.4 cm (h)
- Power requirements: 3.6 to 15 VDC, 0.03 mA quiescent, 4 mA during 300 ms measurement
- Response (Measurement time): 300 ms
- Output: Decagon Digital or SDI-12
- Operating temperature: - 40 to 80 C
- Connector types: 3.5 mm (stereo) plug or stripped and tinned lead wires (pigtail)
- Cable length: 5 m standard; custom cable length available upon request
- Data logger compatibility: Meter/Decagon: Em50 Series (Firmware 2.19+), ICT SDI-12 logger, AML, AWS, Universal Telemetry Hub, Campbell Scientific: Any logger with serial I/O
- Handheld reader compatibility: ProCheck (rev 1.57+)
- Software: ECH2O Utility (rev 1.74)
