MicroWH XL (With 20 mm Probe) - TS18SMWHXL1
Backorder Now, once ordered your item will dispatch before the 25th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

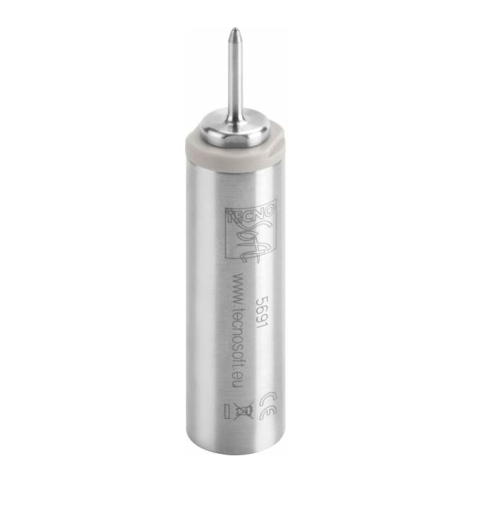

The TS18SMWHXL1 is a temperature data logger with 20 mm external probe that measures for up to 250 degrees Celsius.
- Measuring range of -40 to 250 C with probe (standard calibration from 25 to 150 C).
- Food grade and waterproof.
- Can store 17,000 data points.
Regular price
$1,629.30 AUD
+ GST
$1,792.23 AUD Inc. GST
$1,792.23 AUD Inc. GST
Note: Requires the DiskInterface HS to use. Sold separately.
The TS18SMWHXL1 is a MicroWH XL temperature data logger with 20 mm external probe on a 3 mm base (base height is not counted for probe length), up to 250C (above 150C sensor only), managed with Windows software and USB interface.
Battery is user replaceable and the data logger is provided with a Reference traceable certificate on 6 points. If used below -30 C, battery life will be highly reduced.
MicroWH XL can store more readings than MicroWH L models at +17.000.000 at 25 C.
Features:
- Completely food grade and waterproof
- All software calculate lethality value (F0, PU, A0 ecc.)
- Low battery consumption for more recorded measurements before battery runs out
- User replaceable battery (software shows battery status)
- Very easy to deploy in any type of package
- Reference traceable calibration certificate included
- For calibration over 150 C the minimum probe length is 50 mm
- Extremely high accuracy and precision: with an accuracy of +/- 0.1 C these devices can be employed in any application involving pharmaceuticals, validation, laboratory and medical field
- High accuracy even outside the calibration range
- Fast response time thanks to the 3 mm diameter probe
- Printed reports compliant with health regulations and ISO (data are not editable in the software)
Specifications
- Dimensions: 64 h x 20 diameter (mm)
- Probe dimensions: Probe base dimensions 3 h x 14 (mm)
- Weight: 61 g
- Materials: Stainless steel AISI316L, PEEK
- Temperature range: -40 to 150 C
- Sensor temperature range: -40 to 250 C
- Standard calibration points (temperature): 25/50/75/100/121/150 C
- Extra calibration points (temperature): Within the range -40 to 150 C
- Temperature resolution: 0.01 C
- Temperature accuracy: +/- 0.1 C (within the calibration range) / +/- 0.05 C with ultra accuracy option
- Memory (n. of acquisitions): 20,224
- Acquisition step: From 1 every second up, with 1 second steps
- Protection degree: IP68
- Battery life: +17.000.000 acquisitions at 1 second step continuously (calculated time at 25 C. Battery life may be shorter if used in low temperatures)
- Software and Mobile App: SPD, TS Manager
- Accessories: DiskInterface HS, Multibay universale
