Milesight AM103 - Indoor Temp, RH & CO2 Sensor (With Display) LoRaWAN Sensor
Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

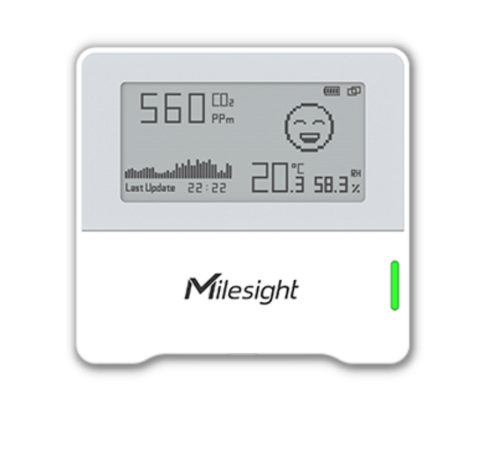

The AM103 sensors accurately measure indoor relative humidity, carbon dioxide levels, and temperature in offices, schools, and commercial and industrial applications.
- The AM103-915M has a display that simultaneously shows indoor humidity, carbon dioxide and temperature levels with "traffic light' and emoticon indicators to quickly get a grasp of indoor air quality.
- Up to three years battery life.
- Also includes Milesight's Cloud IoT software for vertical integration (requires an appropriate gateway).
Regular price
$359.50 AUD
+ GST
$395.45 AUD Inc. GST
$395.45 AUD Inc. GST
Note: Requires a Gateway to utilise the IoT Cloud software
The AM103-915M Ambience Monitoring Sensors are the perfect way to monitor the air around you for offices, commercial and industrial applications. The built-in sensors accurately measure relative humidity, carbon dioxide levels and temperature. By monitoring these things, you can always be aware of potential problems before they arise.
The Emotion Traffic Light Status Indicator is a great way to monitor and display real-time data on what matters most in your indoor air quality. By keeping an eye on these invisible elements in the air around you, you can create a healthier and more comfortable environment for all personnel.
Apart from screen display, sensor data can also betransmittedusing LoRaWAN. With this low-power technology, AM103canwork for more than 3 years with 2 replaceable batteries. Combiningwith Milesight LoRaWAN gateway and Milesight IoTCloudsolution, users can manage all sensor data remotely and visually.
One critical element in a comprehensive IoT network is the gateway. A gateway is typically considered a robust physical box that acts as an entry point for IoT devices to the cloud. The hardware and rich software inside the box can perform many essential tasks. In relation to the LoRaWAN architecture, the LoRaWAN gateway forms the bridge between the source of data (sensors in the field) and people.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
AM103-915M Features
- Integrated with multiple sensors like humidity, temperature and CO2
- Visual data and clear emoticon to understand the comfort level easily via E-ink screen
- Equipped with traffic light indicator to indicate multi-level CO2 threshold alarms
- More than 3 years work without replacing batteries
- Built-in NFC for easy configuration
- Compliant with standard LoRaWAN gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
Specifications
Technology
|
LoRaWAN
|
Frequency
|
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
|
Tx Power
|
16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
|
Sensitivity
|
-137dBm at 300bps
|
Mode
|
OTAA/ABP Class A
|
Temperature (Range)
|
-20C to + 70C
|
Temperature (Accuracy)
|
0C to + 70C (+/- 0.3C), -20C to 0C (+/- 0.6C)
|
Temperature (Resolution)
|
0.1C
|
Humidity (Range)
|
0% to 100% RH
|
Humidity (Accuracy)
|
10% to 90% RH ( 3%), below 10% and above 90% RH ( 5%)
|
Humidity (Resolution)
|
0.5% RH
|
Carbon Dioxide (Range)
|
400 to 5000 ppm
|
Carbon Dioxide (Accuracy)
|
+/- (30 ppm + 3 % of reading)
|
Carbon Dioxide (Resolution)
|
1 ppm
|
Display
|
2.13-inch Black & White E-Ink Screen
|
Button
|
1x Power Button
|
LED
|
1x Traffic Light Status Indicator
|
Configuration
|
Mobile App via NFC
|
Power Supply
|
2x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
|
Battery Life (10 min interval)
|
Around 3 Years
|
Operating Temperature
|
-20C to +60C (E-Ink Screen: 0C to 40C)
|
Relative Humidity
|
0% to 95% (non-condensing)
|
Ingress Protection
|
IP30
|
Dimension
|
68 x 65 x 20.5 mm (2.68 x 2.56 0.81 in)
|
Installation
|
Wall Mounting
|
