Milesight AM319 - Indoor Air Quality 9 in 1 LoRaWAN Sensor
For a personalised quote, add to cart. Then in the checkout choose create a quote.
The AM308-915M is a compact indoor ambience monitoring sensor for measurement of Temperature, Humidity, PIR, Light, TVOC, Barometric Pressure, Carbon Dioxide (CO2), Particulate Matter (PM2.5 & PM10) and formaldehyde.

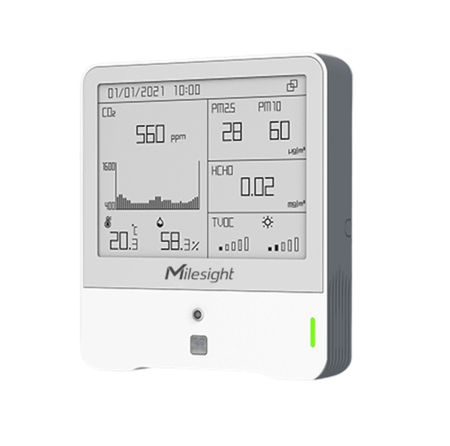

- Recorded readings are displayed in real-time through a 4.2 inch E-ink screen.
- Sensor data is transmitted using LoRaWAN
- Manage all sensor data remotely and visually through the Cloud when used with Milesight's gateways
Note: Requires a Gateway to utilise the IoT Cloud software
The AM319-915M-HCHO is a compact indoor ambience monitoring sensor for measurement of Temperature, Humidity, PIR, Light, TVOC, Barometric Pressure, Carbon Dioxide (CO2), Particulate Matter (PM2.5 and PM10) and formaldehyde. The data will be shown on the E-ink screen in real-time, which helps to measure the indoor environment and comfort.
The AM300 series is widely used for offices, stores, classrooms, hospitals, etc. Sensor data is transmitted using LoRaWAN technology. Combining Milesight LoRaWAN gateway and Milesight IoT Cloud, users can manage all sensor data remotely and visually.
Our platform provides unparalleled levels of vertical integration with Milesight LoRaWAN sensors and controllers, making it easy to monitor and control remote assets. Plus, It visualizes field data and enables users to monitor and control remote assets via an intuitive dashboard. With its array of handy widgets, including a clock, map, charts, and alarm list, you can easily keep track of your devices' online/offline status and customize multiple combinations of conditions and triggers.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
AM319-915M-HCHO Features
- Integrated with multiple sensors like humidity, temperature, etc.
- Visual display via E-ink screen
- Monitor and display real-time data on what matters in your indoor air quality.
- Placement for temperature and humidity sensors is designed to isolate the heat generated when the chip is operating.
- Compliant with standard LoRaWAN gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
Specifications
Frequency
|
CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4
|
Tx Power
|
16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz)
|
Sensitivity
|
-137dBm at 300bps
|
Work Mode
|
OTAA/ABP Class A
|
Temperature
|
Body cell |
Operating Principle
|
Digital CMOSens technology (MEMS)
|
Range
|
-20 to 60 C
|
Accuracy
|
+/- 0.2 C
|
Resolution
|
0.1 C
|
Humidity
|
Body cell |
Operating Principle
|
Digital CMOSens technology (MEMS)
|
Range
|
0% - 100% RH
|
Accuracy
|
+/- 2% RH
|
"Resolution "
|
0.5% RH
|
Motion
|
Body cell |
Operating Principle
|
Passive infrared (PIR)
|
"Detection Range "
|
80 degrees Horizontal, 55 degrees Vertical, 5m
|
Status
|
Vacant/Occupied
|
Light
|
Body cell |
Operating Principle
|
Photodiode
|
Range
|
0-60000 Lux (Determine as 6 levels, 0-5)
|
TVOC
|
Body cell |
Operating Principle
|
MOX (MEMS)
|
Range
|
1.00 - 5.00 (IAQ Rating)
|
Accuracy
|
+/- 1
|
Resolution
|
0.01
|
Barometric Pressure
|
Body cell |
Operating Principle
|
Piezoresistive absolute pressure sensor (MEMS)
|
Range
|
260 - 1260 hPa
|
Accuracy
|
+/- 0.5 hPa
|
Resolution
|
0.1 hPa
|
Carbon Dioxide
|
Body cell |
Operating Principle
|
Nondispersive Infrared (NDIR)
|
Range
|
400 - 5000 ppm
|
Accuracy
|
+/- (30 ppm + 3 % of reading) (0 to +50 C)
|
Resolution
|
1 ppm
|
PM2.5 & PM10
|
Body cell |
Operating Principle
|
Laser Scattering
|
Range
|
0 - 1000 ug/m3
|
Accuracy
|
0-100 (+/- 10ug/m3), 100-1000(+/- 10%); (-10 C to +60 C)
|
Resolution
|
1 ug/m3
|
Formaldehyde (HCHO)2
|
Body cell |
Operating Princicple
|
Electrochemical
|
Range
|
0 - 1.25 mg/m3 (760 mmHg and 20 C, 1 ppm = 1.25 mg/m3)
|
Accuracy
|
+/- 10 %
|
Resolution
|
0.01 mg/m3
|
"Working Life "
|
6 Years
|
