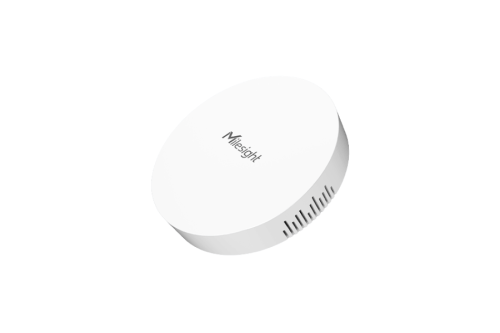

Milesight Indoor LoRaWAN® Gateway UG63
Unfortunately, the UG63-915M has been discontinued, check out our other IOT products for more options.
The UG63 is a 8-channel lightweight indoor LoRaWAN® gateway made for indoor spaces such as office spaces and schools.
-Supports connection with more than 2000 nodes thanks to its high-performance quad-core CPU.
-Line of sight of up to 15km; can cover an area as wide as 2 km within an urbanized environment.
-Has both integrated mainstream network servers (such as TTN, ChirpStack, etc.), and built-in network server.
The UG63 is a 8-channel lightweight indoor LoRaWAN gateway. Adopting SX1302 LoRa chip and high-performance CPU, UG63 supports connection with more than 2000 nodes and can cover 15 km in sight and about 2 km in urbanized environment. With compact size, it is ideally suited for offices, parking lots, campuses, hotels, exhibition centers and many other indoor areas. It also applies to provide coverage for indoor blind spots. UG63 has both integrated mainstream network servers (such as TTN, ChirpStack, etc.), and built-in network server, and it is compatible with Milesight IoT Cloud for easy deployment.
Eye-Catching Design
- Sticking to minimalism, the UG63 Mini LoRaWAN Gateway is as small as a disk. Coupled with an elegant and aesthetic appearance, UG63 is in perfect accord with the office surroundings.
Massive Connectivity
Adopting Semtech SX1302 LoRa chip, UG63 supports connection with more than 2000 LoRaWAN nodes.
- 8 Channels
- Full Duplex
- Global Frequency Plans (CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923)
Blind Spot Coverage
- Besides the general features of a LoRaWAN gateway, the Gateway Fleet makes UG63 particularly suited for providing network coverage for indoor blind spots.
Gateway Fleet
- The Gateway Fleet feature enables multiple agent gateways transmitting received data to one controller gateway, which facilitates the deployment and management of LoRaWAN network.
Listen Before Talk
- The Listen Before Talk (LBT) protocol makes it possible for multiple transmitting nodes to share the same transmitting channel, which allows the device to bypass the Duty Cycle requirement imposed by European standards.
Device-to-Cloud Connection
Our platform provides unparalleled levels of vertical integration with Milesight LoRaWAN sensors and controllers, making it easy to monitor and control remote assets. Plus, It visualizes field data and enables users to monitor and control remote assets via an intuitive dashboard. With its array of handy widgets, including a clock, map, charts, and alarm list, you can easily keep track of your devices' online/offline status and customize multiple combinations of conditions and triggers.
- Visualisation: Transform real-time and historical data intro drag-and-drop widgets on dashboard
- Monitoring & Control: Control access and monitor your projects anywhere
- Alerts: Enable email and mobile push notifications based on triggered events
- Security & Reliability: Built on AWS to provide the most confidential and reliable infrastructure for your data
Specifications
Hardware System:
- CPU: 528 MHz, ARM Cortex-A7
- Memory: 256 MB DDR4 RAM
- Flash: 4 GB eMMC
LoRaWAN:
- Antenna: 2x Internal Antennas
- Channel: 8 (Half/Full-duplex)
- Frequency Band: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
- Sensitivity: -140dBm Sensitivity @292bps
- Output Power: 27dBm Max
- Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
- LBT: Support
Ethernet Interface:
- Port: 1x RJ45 (PoE PD supported)
- Physical Layer: 10/100 Base-T (IEEE 802.3)
- Data Rate: 10/100 Mbps (Auto-Sensing)
- Interface: Auto MDI/MDIX
- Mode: Full or Half Duplex (Auto-Sensing)
Wi-Fi Interface:
- Antenna: Internal Antenna
- Standards: IEEE 802.11b/g/n, 2.4 GHz
- Mode: AP or Client mode
- Security: WPA/WPA2 authentication, WEP/TKIP/AES encryption
- Tx Power: 802.11b: 18 dBm +/-2.0 dBm (11 Mbps)/802.11g: 15 dBm +/-2.0 dBm (6 Mbps)/802.11g: 15 dBm +/-2.0 dBm (54 Mbps)/802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)/802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)/802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)/802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)
Software:
- Network Protocols: PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
- VPN: Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
- Management: Web, CLI, DeviceHub, Milesight IoT Cloud, Yeastar Workplace Platform
- Management: Web, CLI, DeviceHub, Milesight IoT Cloud, Yeastar Workplace Platform
- Reliability: Python SDK
Power Supply and Consumption:
- Power Supply: 1x 802.3af standard PoE input and/or 5V by Type-C Port
Physical Characteristics:
- Ingress Protection: IP30
- Dimensions: 115 x 21 mm ( 4.52 x 0.83 in)
- Color & Material: White, PC + ABS
- Mounting: Desktop, Wall or Ceiling Mounting
Others:
- Reset Button: 1x RST
- Console Port: 1x Type-C Port
- LED Indicators: 1x SYS, 1 LoRa
- Built-in: Watchdog, RTC, Timer
Environmental:
- Operating Temperature: -20 to +50 C (-4 to +122 F)
- Storage Temperature: -40 to +85 C (-40 to +185 F)
- Ethernet Isolation: 1.5 kV RMS
- Relative Humidity: 0% to 95% (non-condensing) at 25 C/77 F
