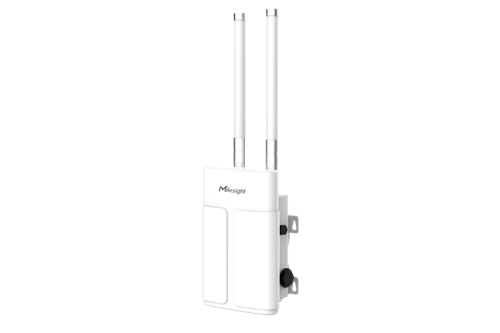

Milesight Outdoor LoRaWAN® Gateway UG67
Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
An 8-channel, outdoor gateway that comes with Wi-Fi, PoE, Ethernet and 2 x External antennas.
-Supports connection with more than 2000 nodes thanks to its high-performance quad-core CPU.
-Line of sight of up to 15km; can cover an area as wide as 2 km.
-Ideally suited for outdoor environments.
Regular price
$1,039.80 AUD
+ GST
$1,143.78 AUD Inc. GST
$1,143.78 AUD Inc. GST
The UG67 is a robust 8-channel outdoor LoRaWAN gateway. Adopting SX1302 LoRa chip and high-performance quad-core CPU, UG67 supports connection with more than 2000 nodes. UG67 has line of sight up to 15 km and IP67 waterproof case, which is ideally suited to smart agriculture, smart metering and many other outdoor applications. UG67 supports not only multiple back-haul backups with Ethernet and WiFi but also has integrated mainstream network servers (such as TTI, ChirpStack, etc.) and built-in network server and Milesight IoT Cloud for easy deployment.
IP67 Rating
- Featuring IP67 rated enclosure and PoE-PD (Powered Device), the UG67 LoRaWAN gateway is well suited for working in harsh outdoor environment
Outstanding Performance
Outstanding performance makes data processing faster
- 512 MB DDR4 RAM
- 1.5 GHz 64-bit Quad-Core Processor
Supercapacitor
The embedded high-capacity capacitor enables UG67 LoRaWAN gateway to keep working for 1 minute to send an alert while the power outage happens
New Generation of LoRa Chip
Handling a higher amount of traffic with lower power consumption
- Semtech SX1302
- Support SF5 & SF6
Low Power Consumption
The UG67 LoRaWAN gateway offers up to a 50% reduction in power consumption compared to legacy gateways.
- Typical: 2.9w
- Max: 4.8w
High Capacity
- Receiving data from 8 end-devices simultaneously Supporting up to 2000 end-devices
Multiple Backhaul Connectivities
- Stay Connected via Ethernet and Wi-Fi to deliver encrypted data around the clock
Flexible Mounting
- Can be mounted to a wall or around a pole
Device-to-Cloud Connection
Our platform provides unparalleled levels of vertical integration with Milesight LoRaWAN sensors and controllers, making it easy to monitor and control remote assets. Plus, It visualizes field data and enables users to monitor and control remote assets via an intuitive dashboard. With its array of handy widgets, including a clock, map, charts, and alarm list, you can easily keep track of your devices' online/offline status and customize multiple combinations of conditions and triggers.
- Visualisation: Transform real-time and historical data intro drag-and-drop widgets on dashboard
- Monitoring & Control: Control access and monitor your projects anywhere
- Alerts: Enable email and mobile push notifications based on triggered events
- Security & Reliability: Built on AWS to provide the most confidential and reliable infrastructure for your data
Specifications
Hardware System:
- CPU: Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
- Memory: 512 MB DDR4 RAM
- Flash: 8 GB eMMC
LoRaWAN:
- Antenna: Fully Integrated Internal Antenna (Optional: 2 50 N-Female External Antenna Connector)
- Channel: 8
- Frequency Band: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
- Sensitivity: -140dBm Sensitivity @292bps
- Output Power: 27dBm Max
- Output Power: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Ethernet Interface:
- Port: 1x RJ45 (PoE PD Supported)
- Physical Layer: 10/100/1000 Base-T (IEEE 802.3)
- Data Rate Rate: 10/100/1000 Mbps (Auto-Sensing)
- Interface: Auto MDI/MDIX
- Mode: Full or Half Duplex (Auto-Sensing)
Wi-Fi:
- Antenna: Fully Integrated Internal Antenna
- Standards: IEEE 802.11 b/g/n
- Tx Power: 802.11b: 18 dBm +/-2.0 dBm (11 Mbps)/802.11g: 15 dBm +/-2.0 dBm (6 Mbps)/802.11g: 15 dBm +/-2.0 dBm (54 Mbps)/802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)/802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)/802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)/802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)
Software:
- Network Protocols: PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
- VPN: Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
- Access Authentication: CHAP/PAP/MS-CHAP/MS-CHAPV2
- Firewall: ACL/DMZ/Port Mapping/MAC Binding/URL Filter
- Management: Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud
- Reliability: WAN Failover
Power Supply and Consumption:
- Power Supply: DC Jack Connector for 9-24 VDC power supply or 1x 802.3 af PoE input
- Consumption: less than 4.2W
Physical Characteristics:
- Ingress Protection: Protection IP65
- Dimensions: 180 x 110 x 56.5 mm
- Mounting: Desktop, Wall or Pole Mounting
Others:
- Reset Button: 1x RST
- Console Port: 1x Type-C Port
- LED Indicators: 1x POWER, 1x STATUS, 1x LoRa, 1x Wi-Fi, 1x LTE, 1x ETH
- Built-in: Watchdog, RTC, Timer
- Certification: CE, FCC
Environmental:
- Operating Temperature: -40 to +70 C (-40 to +158 F)
- Reduced Cellular Performance Above 60C
- Storage Temperature: -40 to +85 C (-40 to +185 F)
- Ethernet Isolation: 1.5 kV RMS
- Relative Humidity: 0% to 95% (non-condensing) at 25C/77 F
