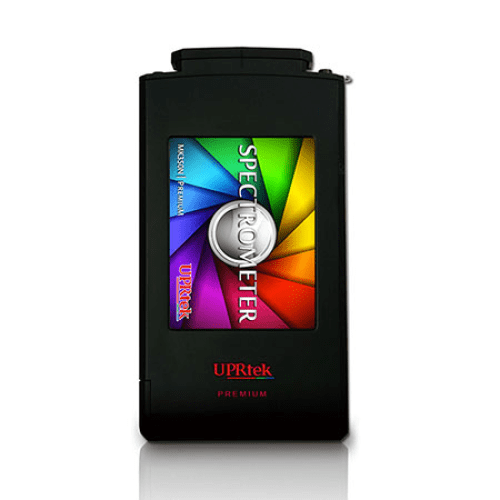

MK350N Premium Handheld Spectrometer
Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The MK350N Premium is a lightweight, portable and easy-to-use spectral illuminance (lux) meter or spectral light meter. It is designed for fast and accurate illuminance measurements for general lighting and LED applications.
Regular price
$3,630.00 AUD
+ GST
$3,993.00 AUD Inc. GST
$3,993.00 AUD Inc. GST
Features:
- Completely Stand-Alone Operation - no other equipment necessary (e.g., PC, Smartphone, etc.)
- More than 40 units of measurement
- Built-in file browser allows for quick access to previously saved data
- 3.5 color touch screen with intuitive menu selection
- Wi-Fi remote control option with IOS or Android applications
- Automatic continuous measurements with data-save to an SD card
Specifications
Spectrum:
- Sensor: CMOS Linear Image Sensor
- Wavelength Range: 380 to 780 nm
- Wavelength Data Increment: 1 nm
- Spectral Bandwidth: Approximately 12 nm (Half Bandwidth)
- Wavelength Reproducibility: +/- 1 nm
- Measurement Range: 5 to 100,000 lx
- Stray light: -25 dB max.
- Integration Time Range: 100us to 1,000 ms
- Digital Resolution: 16 bits
Flicker:
- Measurement Range: 5 to 100,000 lx
- Sampling Rate: 100k sample/sec
- Frequency Range: 5 to 50k Hz
- Frequency Resolution: 2, 4, 8, 16, 32 Hz
- Flicker Accuracy: +/- 5%
Measuring modes:
- Basic Mode
- Spectrum Mode
- CIE 1931/1976 Chromaticity Mode
- TM-30-15 Mode
- Browser Mode
- Flicker Mode
- Frequency Mode
- Option Mode
System configurations:
- Display: 3.5" 320 x 240 Resistive Touch LCD
- Max. files: 68,000 Files at 8GB SD Card (Excel + JPG)
- Battery Operation time: less than or equal to 5 hours / Fully Charged
- Power: Adapter; 2500 mAh (3.7V Rechargeable Li-ion Battery)
- Data Output Interface SD: SD Card (SD2.0,SDHC/up to 32G) / Mini USB Port (USB 2.0) / WiFi SD Card compatible with iOS and Android (Android app not ready
yet)
- Data Format: Compatible Excel / JPG
- Dimensions: 163 x 81 x 26.6 mm (H x W x D)
