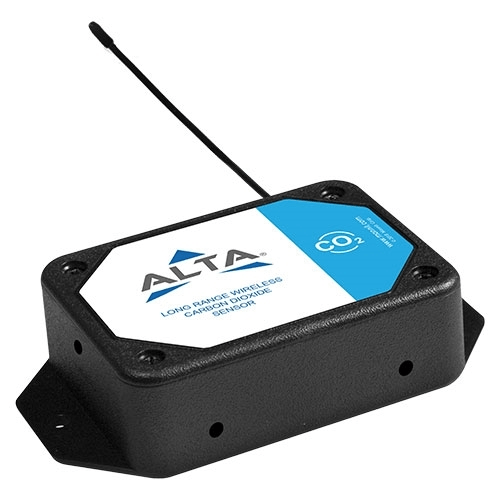

Monnit ALTA Wireless AA Carbon Dioxide (CO2) Sensor - IC-MNS2-4-W2-GS-C2

ORDER ME IN
Product code: IC-MNS2-4-W2-GS-C2

Backorder Now, once ordered your item will dispatch before the 20th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The mems based wireless carbon dioxide sensor allows you to monitor the level of carbon dioxide (CO2) gas in the surrounding air. Monnit wireless CO2 sensors have a small footprint and low cost but boast industry leading, premium performance specifications and are the longest lifetime sensors in the industry.

Read more

$915.00 AUD + GST
 $1,006.50 AUD Inc. GST
Note: Gateway required to operate this sensor

The mems based wireless carbon dioxide sensor allows you to monitor the level of carbon dioxide (CO2) gas in the surrounding air. Monnit wireless CO2 sensors have a small footprint and low cost but boast industry leading, premium performance specifications and are the longest lifetime sensors in the industry. User customization allows you to set the frequency of readings and the ability to set customized alerts via SMS text or email when the sensor detects CO2 levels outside of the user's defined safe levels.

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnits standard wireless sensors. Monnit's AA sensors have a battery life that typically lasts 10+ years.

Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that cant be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

Suggested Applications:

- Indoor Air Quality
- Greenhouses
- Ventilation Management
- Landfill Gases
- Marine Vessels

Specifications


- Measurement Range: 0 to 10000 ppm CO2
- Accuracy: +/- 45 ppm + 3% of reading; Non-dispersive infrared (NDIR) absorption
- Sensing Method: Gold-plated optics; Solid-state source and detector
- Sample Method: Diffusion
- Calibration: Autocalibration
- Non Linearity: < 1% of FS
- Pressure Dependence: 0.13% of reading per mm Hg in normal atmospheric conditions
- Response Time: 3 minutes
- Battery Type: 2 Replaceable AA 1.5 V Batteries
- Dimension: 4.375 in x 2.470 in x 1.12 in
- Supply Voltage: 2.0 - 3.8 V (2 x AA 1.5V Batteries or Optional Power Supply)
- Battery Life: At 1 hour heartbeat setting, included AA batteries will typically last 6-8 Years
- Max Operating Temperature Using AA Alkaline: -18 C to 55 C (0 F to 130 F)
- Max Operating Temperature Using AA Lithium: -40 C to 60 C (-40 F to 140 F)
- Optimal Battery Operating Temperature: +10 C to +50 C (+50 F to +122 F)
- Enclosure Material: ABS
