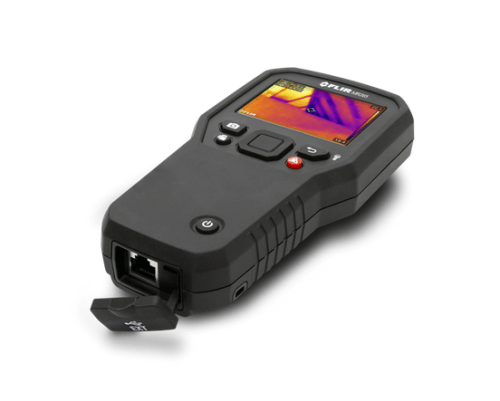

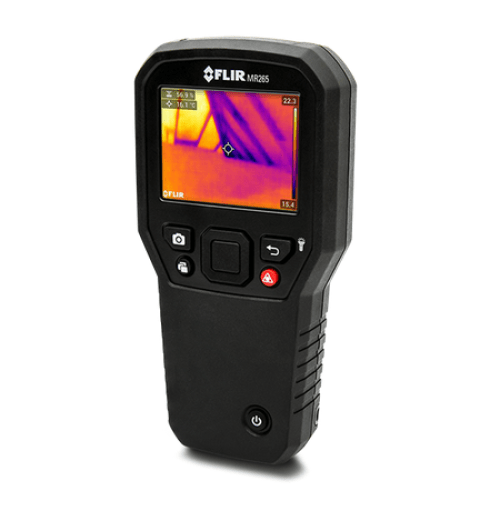

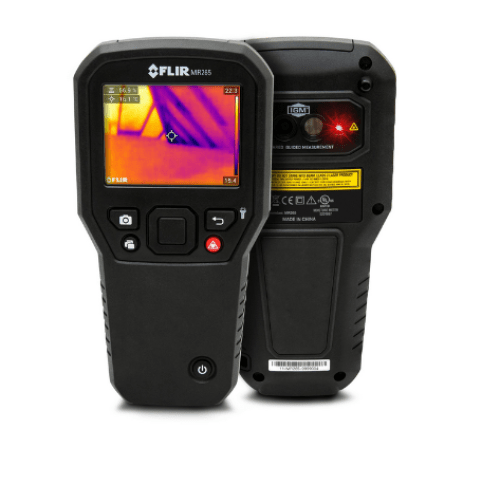

The FLIR MR265 is a professional pin and pinless moisture meter with thermal imaging designed to show you exactly where to investigate issues related to moisture, air leaks, and insulation voids.
Featuring IGM (Infrared Guided Measurement) and MSX (Multi-Spectral Dynamic Imaging enhancement) technology, the MR265 helps you quickly scan and target problem areas, visually guiding you to the spot where you can confidently take measurements, analyze readings, and ensure that problems are fixed.
Using FLIR Thermal Studio, you can then create and share professional reports that include findings and proof of repairs giving your clients peace of mind that mold, rot, or moisture challenges have been resolved.
Features:
- Pinpoint problems at the source using the 160 120 (19,200 pixels) built-in thermal camera, 2 MP visual camera, bright work light, laser, and MSX, which embosses visual details onto thermal images
- Assess moisture with pinless or pin measurements, and choose from a variety of optional, compatible probe accessories for flexibility and convenience on the job
- Document both thermal and visual images before and after repairs, and create professional reports using FLIR Thermal Studio to better communicate problems and repairs
- The MR265 also offers flexibility in identifying moisture issuesproviding both pin and pinless capabilities
Specifications
Moisture measurement (Pin):
- Range: 7 to 100%
- Accuracy: +/- 1.5%, 7 to 30%, reference only: 30 to 100%
- Groups: 11 material groups
- Measurement Resolution: 0.1
- Response time: 750 ms
Moisture measurement (Pinless):
- Range and accuracy: 0 to 100; relative
- Depth: 19 mm
- Measurement Resolution: 0.1
- Response time: 100 ms
Imaging:
- Thermal Image Resolution: 160 x 120 (19,200 pixels)
- Spectral Response: 8 to 14 um
- Field of View: 57 x 44 degrees
- Sensitivity: less than 150 mK
- Object Temperature Range: 0 to 100 C
- Emissivity Correction: 3 pre-set and 1 custom emissivity setting
- Image Update: Speed Frequency 9 Hz
- Thermal Image Palettes: Iron, rainbow, arctic, white-hot, black-hot
MSX Adds visual details to full resolution thermal image
- Image Modes: Thermal, visual, MSX
- Gallery: Yes
- Internal Memory: 8 GB
- Display Type: QVGA (320 x 240 pixels) 2.8 inch color TFT graphical display
General:
- Saved Image File Format: Radiometric jpg
- Stored Image Capacity: 15,000 Images
- Digital Camera: 2 MP
- Field of View (FOV): 83 degrees (70.5 HFOV x 56 VFOV)
- Language Options: 22
- Laser Type Visible: class 2, single laser pointer to center of thermal image
- Continuous Run Time: 10 hours maximum
- Typical Usage: 4 work weeks
- Auto Power Off Programmable: off, 5, 10, 20 and 30 minutes
- Battery Rechargeable: 3.7 V nominal, 5400 mAh LiPo
- Certification Standards: EN 61326 (EMC), EN 60825-1 class 2 (laser), IEC61010-1
- Agency Approvals: CE, RCM, FCC Part 15B, UKCA
