MT1885/MT723 Contractor Combo Kit - MTCK1
Backorder Now, once ordered your item will dispatch before the 17th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

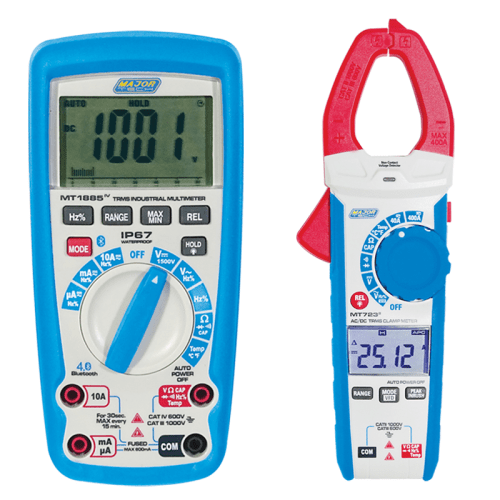

The MTCK1 is a Contract Combo Kit that is suitable for use by all Electricians. This kit includes the MT1885 1500V DC IP67 True RMS Bluetooth Multimeter and the MT723 400A AC/DC True RMS Clamp Meter.
- The MT1885 is a CAT IV 600V True RMS multimeter specially designed for the Solar industry and can make measurements of up to 1500V DC and up to 1000V ACV.
- The MT723 is a 400A AC/DC True RMS Clamp Meter that is CAT III 600V, has a 4000 count large backlit LCD display providing fast sampling time with high accuracy.

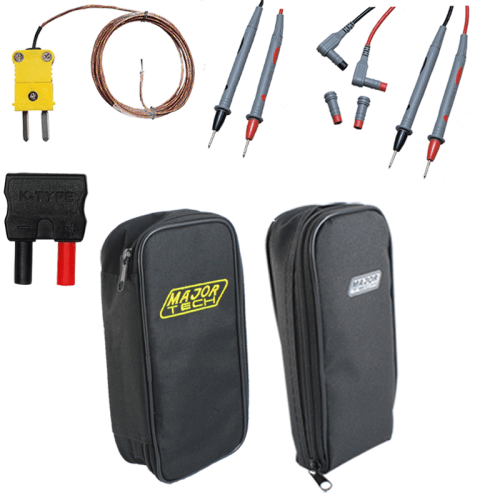

- Includes soft pouches cases for both meters and also includes all needed leads.
Regular price
$429.20 AUD
+ GST
$472.12 AUD Inc. GST
$472.12 AUD Inc. GST
The MTCK1 is a Contract Combo Kit that is suitable for use by all Electricians. This kit includes the MT1885 1500V DC IP67 True RMS Bluetooth Multimeter and the MT723 400A AC/DC True RMS Clamp Meter.
MT1885 Features:
- 6000 count with 61 Segment Bargraph
- Measures DCV up to 1500V & ACV up to 1000V
- Temperature measurement from -20 to 1000 C
- AC & DC Micro Amps up to 10A
- Capacitance to 100mF
- Frequency to 10MHz
- Duty Cycle
- Relative mode
- Automatic NCV where LCD backlight turns red
- Min, Max and Data Hold
- Auto Power Off
- IP67 Dust and Waterproof
MT1885
Specifications
- DC Voltage: 600.0mV to 1500V +/- (0.5% +5)
- AC Voltage: 6.000V to 1000V +/- (0.8% +4)
- DC Current: 600.0uA to 10A +/- (1.0% +3)
- AC Current: 600.0uA to 10A +/- (1.5% +2)
- Resistance: 600.0 ohms to 60 megaohms +/- (1.5% +2)
- Frequency: 9.999Hz to 9.999MHz +/- (1.2% +4)
- Capacitance: 99.99nF to 100mF +/- (4.0% +5)
- Temperature: -20 to 1000 C +/- (3.0% +5C)
- Duty Cycle: 0.1% to 99.9% +/- (1.2% +2)
- Size: 187 x 81 x 50mm
- Weight: 342g
MT723 Features:
- CAT III 600V and CAT II 1000V
- 4000 count backlit LCD display
- 400A AC/DC
- 1000V AC/DC
- Resistance: 40 milliohms
- Frequency: 10kHz
- Capacitance: 100mF
- Temperature: -20 to 1000 C
- With 30mm diameter Cable Clamp size
- INRUSH Current Measurements
- VFD Variable Frequency Drive voltage value
- NCV Non-Contact Voltage Detector
- Built-In Flashlight
- Continuity buzzer and Diode Test
- Peak Mode and Data Hold function
- Auto Power Off
MT723
Specifications
- DC Current measurement: 0.01A to 400A x 0.01A+/- (2.0% +8 Digits)
- AC Current measurement: 0.01A to 400Ax 0.01A+/- (2.0% +8 Digits)
- DC Voltage measurement: 1mV to 1000Vx 1mV +/- (1.0% + 3 Digits)
- AC Voltage measurement: 1mV to 1000V x 1mV +/- (1.2% + 5Digits)
- Resistance measurement: 0.1 ohms to 40 milliohms x 0.1 ohms +/- (1.5% + 2 Digits)
- Frequency measurement: 1Hz to 100kHz x 1Hz +/- (1.0% + 5 Digits)
- Capacitance: 0.01nF 99.99mF x 0.01nF +/- (3.0% + 5 Digits)
- Temperature: -20 to 1000 C x 1 C +/- (3% + 3 C Digits)
- Duty Cycle: 20 to 80%x 0.1 +/- (1.2% + 10 Digits)
- AC Bandwidth: 2kHz
- Digital Display: 4000
- Overrange indication: Yes
- Continuity: Yes
- Diode Test: Yes
- Jaw Size: 30mm
- Input Impedance: greater than 10 milliohms DCV and greater than 10 milliohms VAC
- Peak Hold: Yes
- Data Hold: Yes
- Back Light: Yes
- Enclosure: Double moulded case
- Low Battery Indication: Yes
- Batteries: 3x AAA
- Weight: 305g
- Dimensions: 220 x 80 x 39mm
- Safety Specs: IEC61010-1 CAT III 600V
