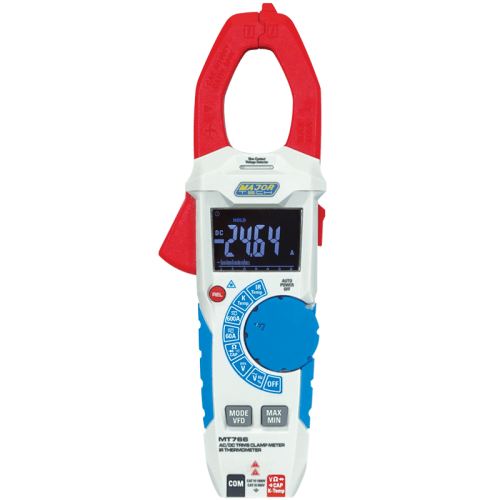

MT766 600A AC/DC IR Thermometer Clamp Meter
Backorder Now, once ordered your item will dispatch before the 17th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The MT766 is a 600A AC/DC IR Thermometer Clamp Meter. This clamp meter has a large 6000 count negative LCD display that provides fast sampling times and high accuracy measurements.
- Measures 1000V AC/DC, frequency, capacitance and resistance measurements.

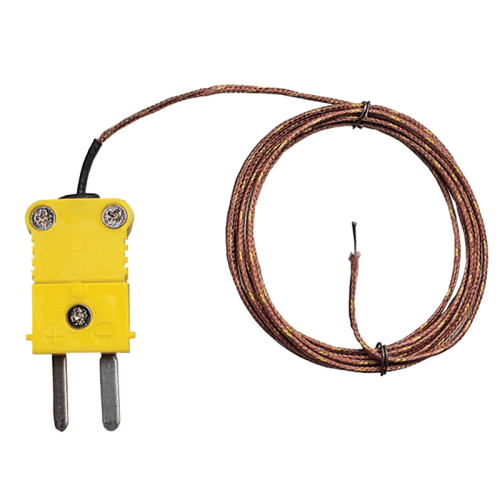

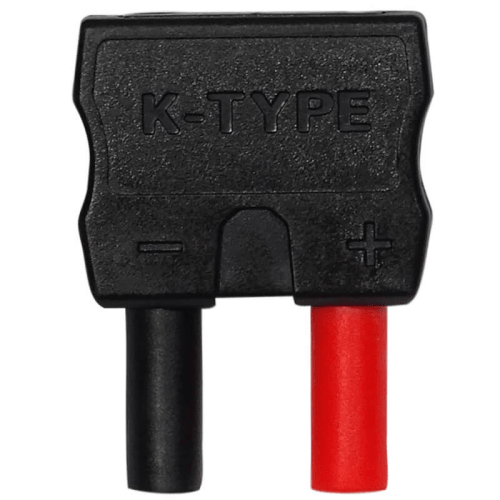

- Built with an IR Thermometer has a spot ratio of 4:1, -30 to 350 C range, with a K-Type thermometer input for measurements up to 1000 C.
- The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives.
Regular price
$299.80 AUD
+ GST
$329.78 AUD Inc. GST
$329.78 AUD Inc. GST
The MT766 is a 600A AC/DC IR Thermometer Clamp Meter. This clamp meter has a large 6000 count negative LCD display that provides fast sampling times and high accuracy measurements. The meter measures 1000V AC/DC, frequency, capacitance and resistance measurements. The IR Thermometer has a spot ratio of 4:1 and measures temperature from -30 to 350 C, plus there is a K-Type thermometer input for measurements up to 1000 C. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, MAX/MIN and Data hold function plus a built-in flashlight for dimly lit areas.
This 600A AC/DC IR Thermometer Clamp Meter is housed in a modern double moulded rubber housing with a rugged design. This meter is a useful measuring tool for electricians, maintenance and HVAC environments.
Features:
- 6000 count negative LCD display
- 33mm dia. Cable Clamp size
- 600A AC/DC
- 1000V AC/DC
- Capacitance: up to 100mF
- Resistance: 60 megaohms
- Frequency: 10kHz
- K- Type Temperature range: -20 to 1000 C
- IR Temperature range: -30 to 350 C
- Spot Ratio 4:1
- VFD Variable Frequency Drive voltage value
- NCV Non-Contact Voltage Detector
- Built-In Flashlight
- Continuity buzzer and Diode Test
- Max, Min and Data Hold function
- Auto Power Off
Specifications
- DC Current: 0.01A to 600A x 10mA +/- (2.8% + 5 Digits)
- AC Current: 0.01A to 600A x 10mA +/- (1.5% + 10 Digits)
- DC Voltage: 1mV to 1000V x 1mV +/- (0.8% + 4 Digits)
- AC Voltage: 0.001V to 1000V x 1mV +/- (1.5% + 5 Digits)
- Resistance: 0.1 ohms to 60 megaohms x 0.1 ohms +/- (2.0% + 5 Digits)
- Frequency: 0.001Hz to 9.999kHz x 1mHz +/- (1.5% + 6 Digits)
- Capacitance: 0.1nF to 99.99mF x 0.1nF +/- (4% + 6 Digits)
- Temperature K-Type: -20 to 1000 C x 0.1 C +/- (3 C + 3 Digits)
- IR Temperature D:S: 4:1
- IR Temperature Measurement range: -30.0 to 350.0 C x 0.1 C +/- (2 C + 2 Digits)
- Duty Cycle: 20.0% to 80.0% x 0.1% +/- (1.2% + 5 Digits)
- True RMS Measurements: ACV, ACA
- AC Bandwidth: 50 to 1000Hz
- Digital Display: 6000
- Bargraph: Yes
- Non-Contact Voltage (NCV): Yes
- Overrange indication: Yes
- Continuity: Yes
- Diode test: Yes
- Jaw size: 33mm
- Input impedance: greater than 10 megaohms DCV and greater than 10 megaohms VAC
- Min Max: Yes
- Data Hold: Yes
- Back Light: Yes
- Enclosure: Double injection moulding
- Low battery indication: Yes
- Power source: 3 x LR03
- Weight: 350g
- Dimensions: 239 x 66 x 44mm
- Safety Specs: IEC61010-1 CatIV 600V
