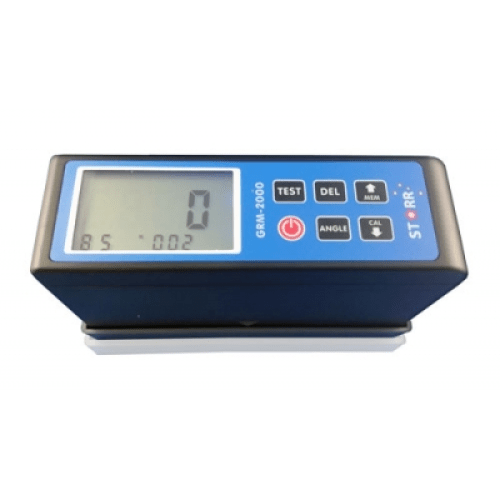

Multi Angle, Gloss Meter - Advanced Measurement
Backorder Now, once ordered your item will dispatch before the 26th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Multi angle, digital Gloss meter for advanced measurement of specular reflection at 3 different angles of incidence being 20, 60 and 85 degrees respectively.
Regular price
$999.10 AUD
+ GST
$1,099.01 AUD Inc. GST
$1,099.01 AUD Inc. GST
Users select their required angle of incidence and upon pressing the measure key, a light beam is transmitted at the prescribed angle onto the test surface. This is reflected into the receiver sensor and a corresponding Gloss Unit (GU) value is displayed on screen in a matter of seconds.
The higher the GU value, the greater the glossiness is said to be.
The multi-angle Gloss Meter is commonly used for quality assessment. It is particularly useful to verify finishing polish on flooring products such as tiles, stone, pavers; also in the production of windows, various painted products in the printing and automotive industries.
Features:
- Large, backlit LCD
- Auto calibration (reference tile fitted into cradle)
- Data memory 250 readings
- Compact size for portability
- Rechargeable battery
Specifications
- Display: 4 digits, 10mm LCD
- Measuring Geometry: 20,60, 85 degrees
- Range: 0.1 to 200 GU
- Accuracy: +/- 1.0 GU
- Resolution: 0.1 GU
- Measuring Aperture: 7 x 14 mm
- Internal Memory: 250 readings
- Power Supply: Built-in rechargeable battery (USB charging)
- Dimensions: 140 x 45 x 75 mm
