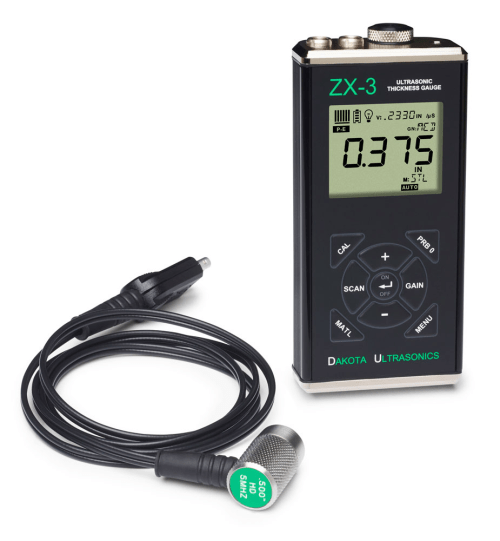

Multifunction Ultrasonic Wall Thickness Gauge with probe - IC-ZX-3
Backorder Now, once ordered your item will dispatch before the 13th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The Dakota ZX-3 Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side! It can measure thickness up to 36 inches (915 mm), depending upon the material and transducer.
Regular price
$3,609.60 AUD
+ GST
$3,970.56 AUD Inc. GST
$3,970.56 AUD Inc. GST
The Dakota ZX-3 Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side! It can measure thickness up to 36 inches (915 mm), depending upon the material and transducer.
The ZX-3 combines the best features of the ZX-2 allowing the operator to select from 8 preset materials as well as program 2 custom material velocities,
plus allows free adjustment of the velocity as desired and allows the end-user to calibrate to a sample of known thickness where the velocity is automatically
calculated. Additionally, to optimize linearity over a wide range, the user can perform a 2 point calibration to two samples of known thickness. The
optimal velocity is automatically calculated to provide the highest accuracy and linearity between the low and high calibration points.
The TI-25MX can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness
reading recorded during the "scan" will be displayed.
The ZX-3 probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed (IP65) to provide trouble-free operation
under the toughest field conditions.
Features:
- Includes NIST Traceable Calibration Certificate
- Resolution of 0.001 inch (0.01 mm)
- Switch-selected units for inches or mm
- User-selected Manual or Auto Zero of Transducer
- User can select from 8 preset materials as well as program 2 custom material velocities
- Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
- 2-Point Calibration to optimize linearity over a wide measurement range, automatically calculates the optimal acoustic velocity
- Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
- Adjustable GAIN in 5 steps to fine tune the gauge for use on challenging materials or applications
- Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
- The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65) to provide trouble-free operation under the toughest field conditions
- For underwater surveying, an optional 50 ft (15 meter) underwater probe/cable is available
- High visibility LCD Display is readable in all lighting conditions and temps as low as 22 F (-30 C)
- LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero and units
- Operates on two (2) AA Batteries - 45 hours continuous operation
- Selectable Backlight ON/OFF/AUTO
- 5 Year Warranty, CE-Certified and Made in USA
- The ZX-3 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate,
and Operating Instruction Manual - all in a foam-fitted carrying case.
Specifications
- Total Measuring Range (Steel): 0.025 - 36.000 inches (0.63 - 914.4 mm); depends on material and transducer/probe type
- Measuring Range (Steel, with standard transducer T-102-2000): 0.040-8.000 inches (1.00-199.9 mm)
- Resolution: 0.001 inch (0.01 mm)
- Measuring Mode: Pulse-Echo (P-E)
- Velocity Range: 0.0120 to .7300 in/?s. 305 to 18,542 meters/sec
- GAIN Adjustment: Adjustable GAIN 5-position (VLOW, LOW, MED, HIGH, VHI), in 3dB steps, 40-52dB
- Probe (Standard): 1/4 inches, 5 MHz Dual Element Transducer, actual wearface is 5/8 inches (17mm), p/n T-102-3300
- Probes (optional): 1 to 10 MHz, 3/16" up to 1 inch (custom probes available)
- Probe Wearface: PEEK (Polyetheretherketone)
- Cable: 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
- LCD Display: Multi-function 7 segment 4.5 digit liquid crystal display with 0.500 inches digit height. Two 0.125 in 14 segment fields for labels and
values, and one 7 segment field for labels and values. Additional icons to indicate features and modes
- Display Backlight: Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
- Display Update Rate: 10 Hz (10 updates/sec)
- Temp. Limits (Ambient): -30 to 75 C (-22 to 167 F)
- Temp. Limits (Material): -20 to 100 C (0 to 200 F)
- Battery Type: 2x AA batteries (rechargeable batteries can be used)
- Battery Life: 45 hours continuous use
- Housing: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
- Housing Rating: IP65
- Pulse Repetition Frequency (PRF): 200 Hz (200 pulses/sec)
- Battery Type: 2x AA batteries (rechargeable batteries can be used)
- Battery Life: 45 hours continuous use
- Weight: 308 grams (11 ounces)
- Dimensions: 63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25")
- Warranty (Gauge): 5 years
- Warranty (Probes): 90 days
