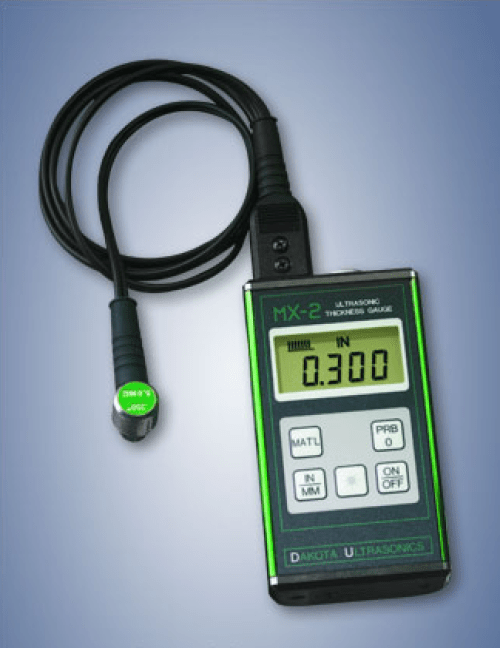

The MX-2 is ideal for the person that tests a few different materials regularly. The MX-2 contains 8 velocities of common materials and two velocities that the user can set using a simple sofware program.
The tool's backlit display is easy to read, even in dim light, and the unit operates for up to 200 hours on a single set of batteries. The MX-2 comes complete,
ready to use, and is protected by Dakota Ultrasonics 5 year limited warranty.
Velocity Settings:
The MX-2 has 8 set velocities and 2 that are custom to the user's applications. The set velocities are as follows:
- Steel4340-(.233)
- Stainless Steel 303-( .223 )
- Aluminum 2024 - ( .251 )
- Cast Iron-(.179 )
- Plexiglass-(.106 )
- PVC - (.094)
- Polystyrene(.092)
- Polyurethane-(.070 )
- Custom
- Custom
Features:
- Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions.
- Measurements displayed in inches, inches/microsecond, millimeters, and meters/second.
- Measures from 0.025 to 19.999 inches (0.63 to 199.99 millimeters) switch to select English or metric units.
- Four readings per second for single point measurements.
- 8 pre-set velocities and 2 custom velocities
- Ability to change between velocities without the use of computer software
- IP 65 Rated
- The MX-2 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating
Instruction Manual - all in a foam-fitted carrying case.
Specifications
- Measuring Range: 0.025 to 19.999 inches (0.63 to 199.99 millimeters)
- Resolution: 0.001 inch (0.01 millimeter)
- Velocity Range: 0.0492 to 0.3937 in/us. 1250 to 10,000 meters/sec
- Dimensions: 2.5 W x 4.75 H x 1.25 D inches
- Range in Steel: 0.025-6.00" (0.60-150.0 mm)
- Resolution: 0.001" (0.01 mm)
- Display: 4.5 - Digit, 0.5" Backlit LCD
- Probe: 1/4", 5 MHz, actual wearface is 5/8" (17mm)
- Cable: 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
- Temp. Limits (Ambient): -20 to 120 F (-30 to 50 C)
- Temp. Limits (Material): -0 to 200 F (-20 to 100 C)
- Battery Type: Two 1.5V alkaline or 1.2V NiCad AA cells.
- Battery Life: Typically operates for 200 hours on alkaline and 130 hours on NiCad.
- Weight: 10 ounces (283 g)
- Accessories Included: Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic
carrying case.
