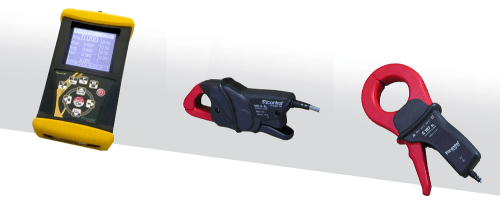

NANOVIP Two (With a 200A + 1000A Clamps) - IC-4NAN2D

ORDER ME IN
Product code: IC-4NAN2D

Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The NanoVIP TWO is an advanced device equipped with all the functions necessary for measuring and monitoring both electricity consumption and power quality that allows a professional analysis adequate to the highest demands. Includes 200A and 1000A clamps.

Read more

$3,135.00 AUD + GST
 $3,448.50 AUD Inc. GST

Features:

- Light, handy, multi-lingual, with top class performance and features.
- Graphic LCD that allows a wide display flexibility (multi-language menu, waveforms, histograms, page customizations, drawings, diagrams, images, etc.).
- NonoStudio PC software dedicated through which it is possible to perform advanced analysis of the data stored on the uSD.
- 1 voltage measurement channel (1 phase + neutral) up to 600V CAT III, with the possibility of also measuring the DC voltage, with an accuracy of +/- 0.25% + err.FS.
- 1 current input with the possibility of also measuring the direct current, with an accuracy of +/- 0.25% + err.FS.
- Automatic verification of the correct connection of the device to the network.
- Possibility of using flexible current clamps up to 3000A or other scanners with full scale settable by the user.
- High capacity batteries that allow a field autonomy of more than 24 hours even in the absence of mains power; no campaign limit if connected to the network.
- Powerful calculation engine that allows in addition to the measurement of all the standard electrical quantities (VIPQAF PF THD% etc.) in true effective value (TRMS): harmonics up to 50, dips, swells, microinterruptions and many others.
- 20 alarms (generic, swells, dips and interruptions).
- Energy measurement in 4 time bands (rates) settable.
General specifications:
- Safety: 600V CAT III
- Degree of protection: IP30
- Guy: White backlit LCD dot matrix
- Languages: English - Spanish - Italian - German - French
- Communications: USP to PC
- Internal memory: 64 kB
- External memory: Micro SD (2GB included)
- Operating temperature: from -10 to +55 C
- Relative humidity: Max 95%
- External power supply included: External wall-plug switching, input 100-240VAC ? 10% 47-63Hz, with interchangeable plug; output 7.5VDC - 12W
- Battery pack supplied: 4 x AA MiMh 2100mAh
- Battery charge autonomy: > 24h
- Weight: 580g
- Dimensions: 203 x 116 x 53 mm
Functionality:
- Traditional energy analysis: V, I, P, Q, S, F, PF, THD (V)%, THD (I)%, cosj, j, peaks, minima, maxima, averages, max. demand, etc.
- Counters: kWh, kVArh, kVAh both absorbed and generated
- Waveforms: V and I
- Harmonics: Values and spectrum up to 50th
- Sags: Dips, swells and network interruptions
- Fast transients: Overcurrents and overvoltages
- K factor: Up to the 25th order
- Alarms: On video
- Alarm log: 5 on the screen
- Tariff bands: 4
- Measurement campaigns: Unlimited, up to memory card filling
Measurements:
- Refresh rate of video data: 1 sec.
- Type of possible connections: Three-phase (3 or 4-wire) two-phase (2-wire) and single-phase network
- Type of network that can be connected: Low and Medium Voltage (BT and MT)
- Voltage (TRMS): 1 4MOhm channel, 2 scales
- Current (TRMS): 1 channel 10kOhm
- Powers: Active, reactive and apparent. Single and total phase
- Enegery meters: kWh, kvarh, kVAh
- Harmonic analysis: Up to 50th order
- Analysis of parameters EN50160: Interruptions, voltage holes and overvoltages from 500mS
- Analysis Transients: Overvoltages, overcurrents and inrush currents
Regulations:
- CE conformity: 93/68 / EEC (LV electrical equipment); 89/336 / CEE and 2004/108 / CE (EMC - Electromagnetic Compatibility); 2006/95 / EC - 72/23 / EEC (LVD - Low Voltage); 2002/95 / EC (RoHS - Restrictions on the use of Hazardous Substances); 2002/96 / CE and 2003/108 / CE (WEEE / RAEE - Waste Electrical and Electronic Equipment).
- Safety: EN 61010-1
- Electromagnetic compatibility (EMC): EN 61326; EN 61326 / A1; EN 61326 / A2; EN 61326 / A3
- Temperature: IEC 60068-2-1 (operating temperature); IEC 60068-2-2 (storage temperature)
- Vibrations: IEC 60068-2-6
- Humidity: IEC 60068-2-30 (humidity)
- Overload: IEC 60947-1
