Particulate Monitor sensor with the Series 200 Handheld
Unfortunately, the PM-200 has been discontinued, check out our other Air Quality Meters for more options.
|
Unfortunately, the PM-200 has been discontinued, check out our other
Air Quality Meters for more options.

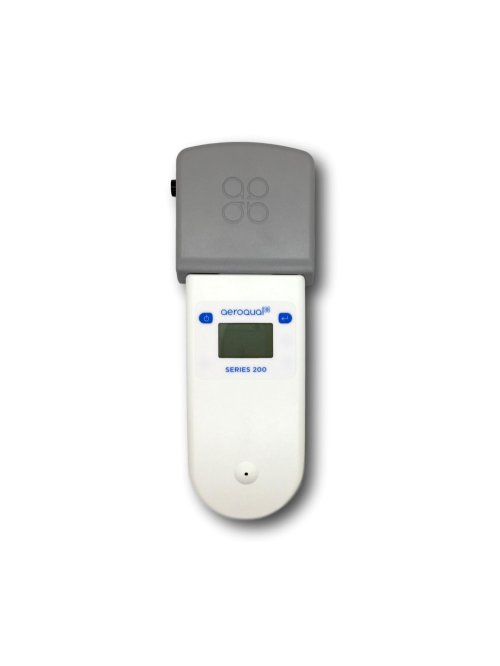

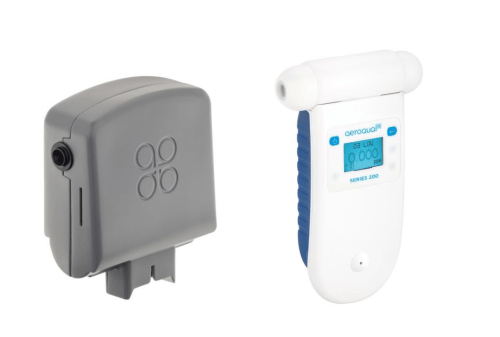

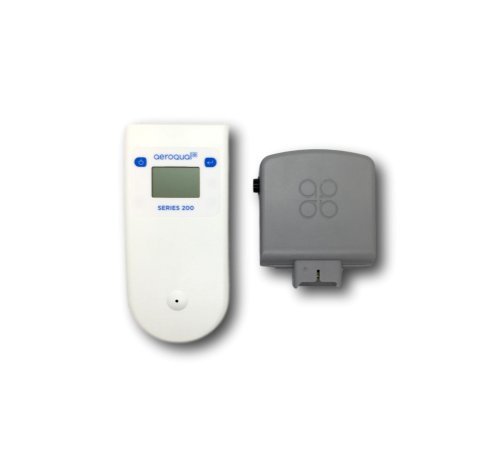

This kit comes supplied with the IC-PM and the IC-HH S200L handheld monitor. The IC-PM is Aeroqual's portable particulate monitor for accurate and simultaneous measurement of PM10 and PM2.5 in ambient outdoor and indoor environments. Whilst the Series 200 will allow you to view these results in real time and if desired purchase additional sensor heads to monitor other gases.

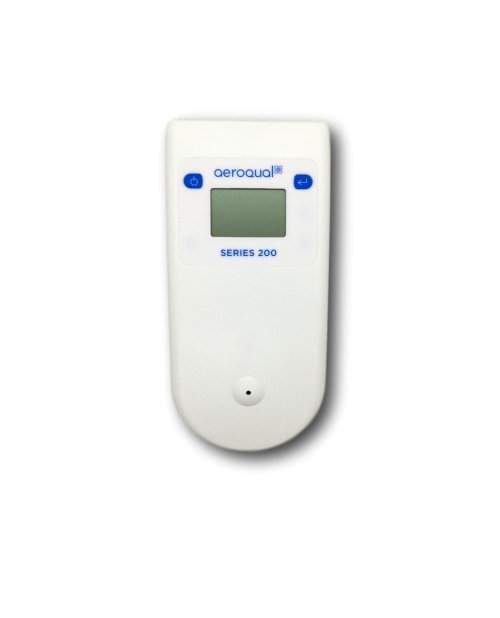

Series 200 Lithium Air Quality Portable Monitor features and specifications:
Features:
- Simple to use, easy to maintain, multiple applications.
- Interchangeable gas sensor heads.
- Field replaceable long life Lithium battery (up to 8 hours).
- Minimum, maximum and average readings.
Specifications- Measurement units: Gas: ppm or mg/m3 | Humidity: % | Temperature C or F
- Reading functions: Instant, minimum, maximum, average
- Sensor head: Interchangeable, replaceable
- Display status indicators: Battery, sensor, standby
- Sensor calibration: Zero calibration
- Power supply: 12V DC (power adaptor/charger supplied 100-250 V AC)

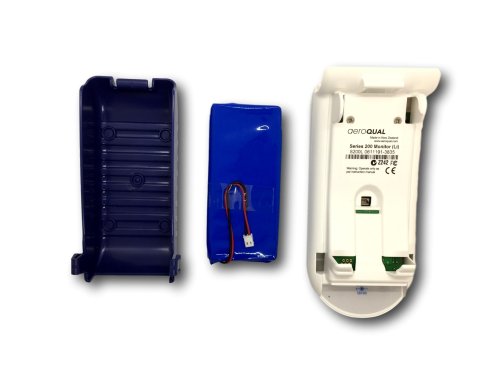

- Rechargeable battery: Lithium polymer 12 V DC 2700 mA/h
- Enclosure material and rating: PC and ABS; IP20 and NEMA 1 equivalent
- Size (with sensor head): (L x W x D) 195 x 122 x 54 (mm); 7 x 4 x 2 (in)
- Environmental operating conditions: Temperature: -5 oC to 45 oC/Humidity: 0 to 95 % non-condensing
- Temperature & Humidity sensor: Range - 40 C to 124 C (- 40 F to 255 F); Range 0 to 100 % RH

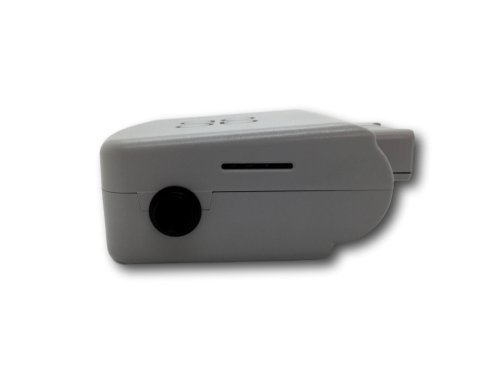

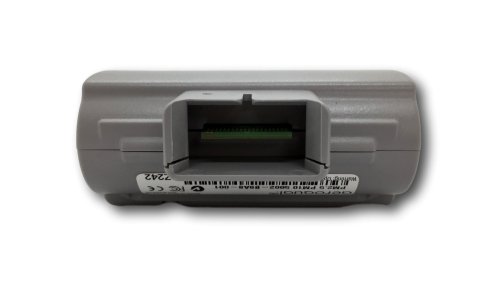

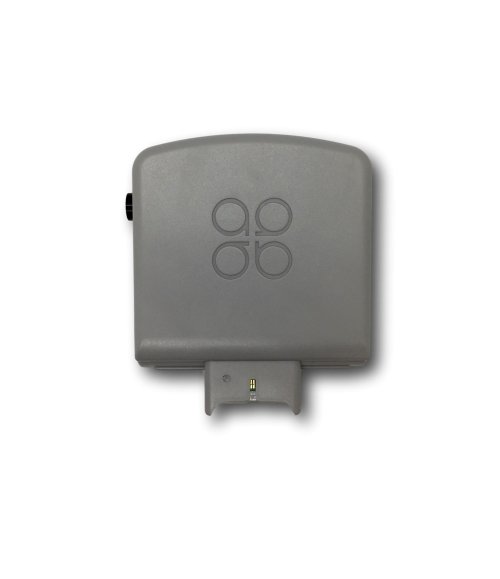

Particulate Matter Sensor features and specifications:

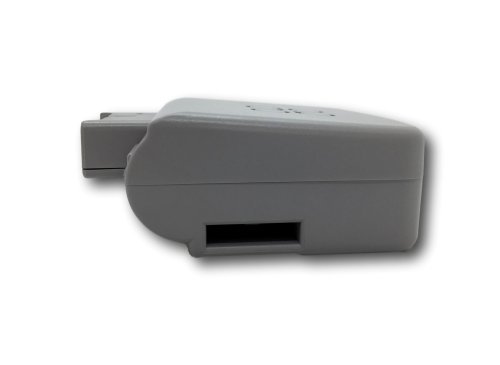

The IC-PM is Aeroqual's portable portable particulate monitor for accurate and simultaneous measurement of PM10 and PM2.5 in ambient outdoor and indoor
environments. Compatible with Aeroqual's Series 200/300/500 air quality monitors, the portable particulate monitor will output particulate matter (PM)
measurements for PM10 and PM2.5 in real-time.
- Range: 0.000 to 1.000 mg /m3
- Measurement Parameters: PM2.5 and PM10
- Sensor Type: Laser particle counter
- Minimum Detection Limit: 0.001 mg/m3
- Accuracy of Factory Calibration: +/- (0.002 mg/m3 + 15 % of reading)
- Resolution: 0.001 mg/3
- Response Time: 5 Seconds
- Temp: 0 to 40C
- Relative Humidity: 0 to 90% non-condensating
|
