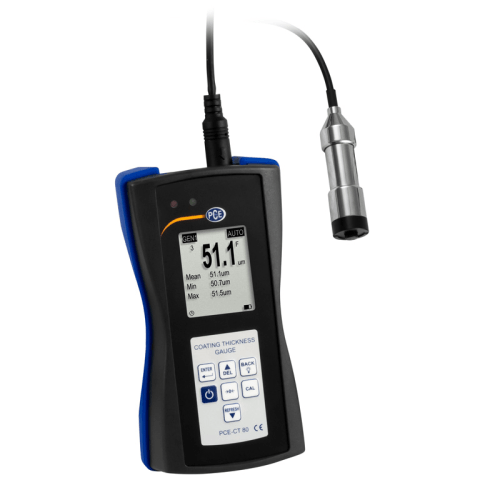

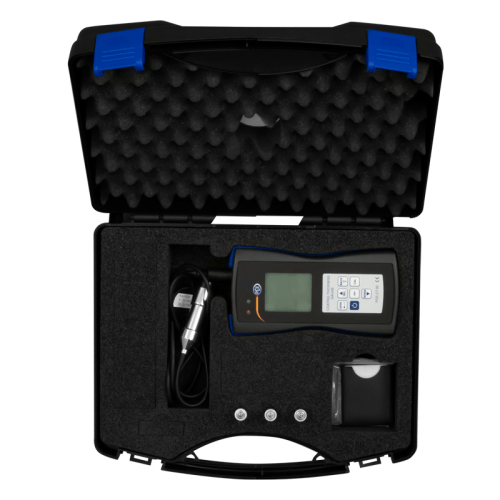

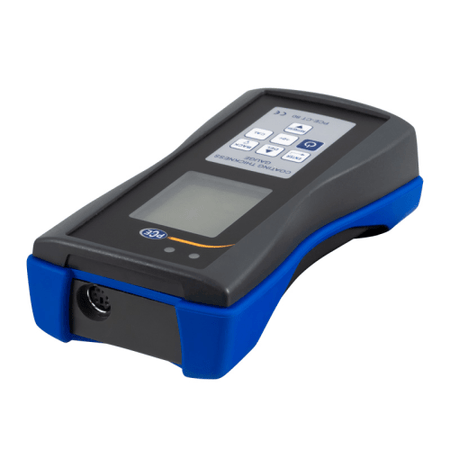

The PCE-CT 80 is a measuring device for the nondestructive measurement of coatings (paints, lacquers, plastics, etc.) on steel, iron and non-ferrous metals. The menu navigation of the paint thickness gauge allows easy adjustment and setting to new parameters and makes this handy paint coating thickness gauge an indispensable tool for control measurements in production, workshop and quality assurance. Includes FN1.5 probe in kit for 0 to 1500 um or 0 to 59 mils measurements.
It is also ideally suited for detecting and assessing eg accident damage to motor vehicles immediately, but also in the industrial sector the paint thickness gauge can be optimally used in incoming and outgoing inspections as well as material testing in production.

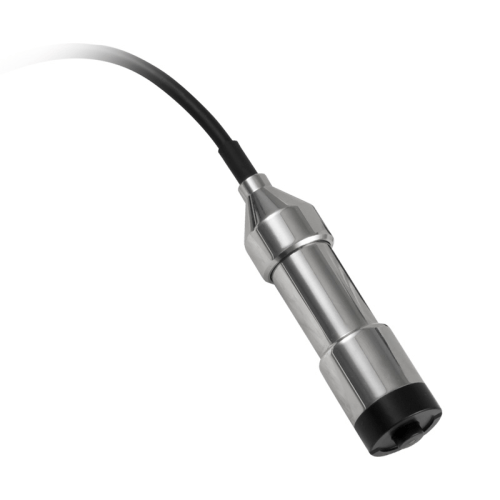

The PCE-CT 80 also has a specially designed external sensor that allows you to quickly determine measurement results with high accuracy. The paint thickness gauge measures non-magnetic layers such as paint, plastic, chrome, copper, zinc, enamel, etc. on steel / iron, and non-electrically conductive layers such as paint, plastic, enamel, paper, glass, rubber, etc. on copper, aluminum, brass and stainless steel, as well as anodized aluminum.
Features:
- For many materials such as, iron, steel, aluminum, copper, brass and stainless steel
- Measurements can not be influenced by vibrations
- Practical V-groove on the measuring heads
- Ergonomic design
- Warning for measurements outside the maximum measuring range
- Wear-resistant, spring-mounted measuring head for precise measurement results

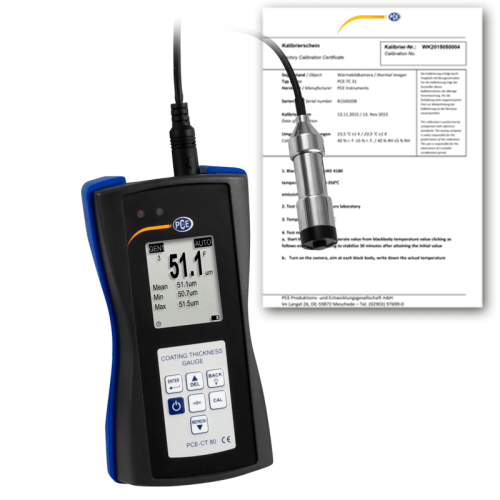

- Incl. ISO laboratory calibration with certificate
- Various optional sensors available
Specifications
- Measuring range (Fe): 0 to 5000 um / 0 to 196.9 mils (depending on sensor)
- Measuring range (NFe): 0 to 3000 um / 0 to 118.1 mils (depending on sensor)
- Accuracy: +/- (2% of reading + 1 um / 0.039 mils)
- Resolution: 0.1 um (0.0039 mils) (less than 100 um / 3.94 mils)
1 um / 0.039 mils (greater than 100 um / 3.94 mils)
- Measurable materials: Non-magnetic layers on steel, iron, etc., Non-electrically conductive layers on aluminum, copper, etc.
- Min. radius of curvature convex: 5 mm
- Min. radius of curvature concave: 25 mm
- Min. measuring surface: 17 mm
- Min. substrate thickness: 0.2 mm (on magnetic materials)
0.05 mm (on non-magnetic materials)
- Probe mode: Autom. Mode with material detection (Fe + NFe). Magnetic mode (Fe), Eddy current mode (NFe)
- Measurement mode: Single measurement and continuous measurement
- Calibration: Multipoint calibration (1 to 4 points for each group)
Zeroing
- Units: um, mm, mils

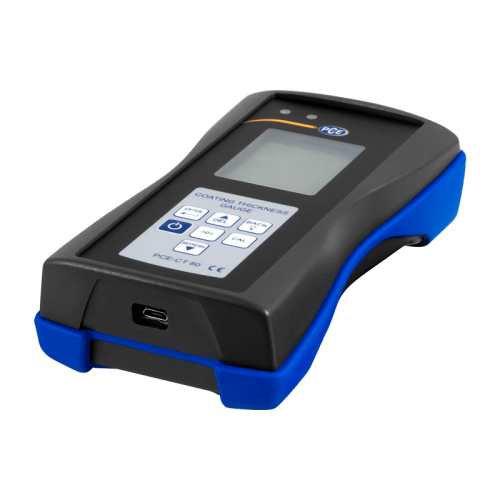

- Data transfer: USB 2.0
- Storage: A volatile measuring group (DIR mode). Four measuring groups with autom. storage and max. 2000 readings (GEN mode)
- Statistical functions: Number of Measured values, mean, minimum, maximum, standard deviation
- Alarm: Display when the adjustable upper and lower alarm limits are exceeded
- Operating time: Autom. Shutdown mode (3 min.)
- Power supply: 3x 1.5V AAA batteries

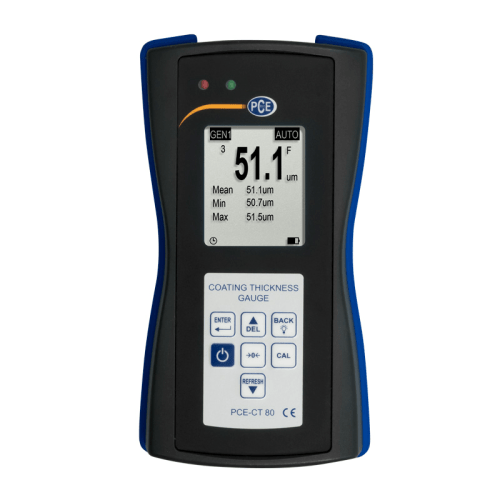

- Display: 128 x 128 px LCD display
- Indicators: Battery status and Fault detection
- Operating conditions: 0 to 50 C/ 20 to 90% RH not condensing
- Storage conditions: -10 to 60C / 20 to 90% RH not condensing
- Dimensions (L x W x H): 143 x 71 x 37 mm
- Weight With sensor and batteries: approx. 271 g
