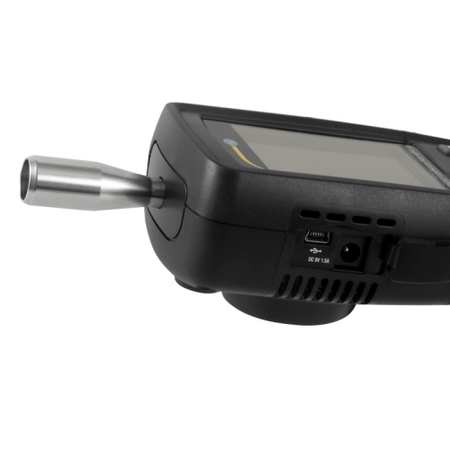

The dust measuring device PCE-MPC 20 is a particle counter that measures the particles in the atmosphere. The measurable particle sizes of the dust measuring device are 0.3, 2.5 and 10 m. In addition to the particle counter function, the dust meter also measures the mass concentrations PM2.5 and PM10. The built-in high-performance pump ensures a sufficient flow rate at the dust measuring device. In addition, the dust meter can also measure the temperature, humidity and dew point.
The measured values can be read directly on the display of the dust measuring device. Data storage is also possible with the dust measuring device in order to analyze the measured values after a measuring process. The battery used ensures a mobile application. This allows a mobile continuous operation of about 4 hours. A dust measuring device is used wherever a possible health hazard due to fine dust could occur. These include pollution from incineration, manufacturing, energy production, vehicle engine emissions, and the pollution that the construction industry generates.
Features:
- Mass concentration PM2.5 / PM10
- Data memory up to 5,000 data sets
- Flow rate 2.83 l / min
- Display with graphic real-time diagram
- Battery or AC operation possible
- Alarm function
Specifications
Mass concentration:
- Measurable particle sizes: PM2.5 / PM10
- Measuring range: 0 to 2000 ug / m3
- Resolution: 1 ug / m3
Particle counter:
- Measurable particle sizes: 0.3, 2.5 and 10 um
- Flow rate: 2.83 l / min
- Coincidence error: less than 5% at 2,000,000 particles per ft3
- Counting efficiency: 50% at 0.3 um; 100% with particle size greater than 0.45 um
- Counting modes: Cumulative, differential, concentration
Air temperature and relative humidity
- Measuring range (air temperature): 0 to 50 C
- Measuring range (dew point temperature): 0 to 50 C
- Measuring range (relative humidity): 0 to 100%
- Measuring accuracy (air temperature): 10 to 40 C: +/- 1.0C; Others: +/- 2.0 C
- Measuring accuracy (dew point temperature): 10 to 40 C / +/- 1.0 C; Others: +/- 2.0 C
- Measuring accuracy (relative humidity): 0 to 20% +/- 5%; 20 to 80% rel. Humidity: +/- 3.5%; 80 to 100% rel. Humidity: +/- 5%
- Operating conditions: 0 to 50 C, 10 to 90% rel. humidity, Not condensing
- Storage conditions: -10 to 60 C, 10 to 90% rel. humidity, Not condensing
- Data storage: 5,000 data sets (Micro SD card)
- Display: 2.8 inch, 320 x 240 pixels, Backlit color LCD
- Power supply: Charger Rechargeable battery 1200-mAh, 7.4V
100 to 240 VAC, 50 or 60 Hz
- Battery Life: About 4 hours in continuous operation
- Battery recharge time: About 2 hours with AC adapter
- Dimensions: 240 x 75 x 57 mm
- Weight: 570 g
