PCE-PCO 1 Particle Counter

ORDER ME IN
Product code: PCE-PCO-1

Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

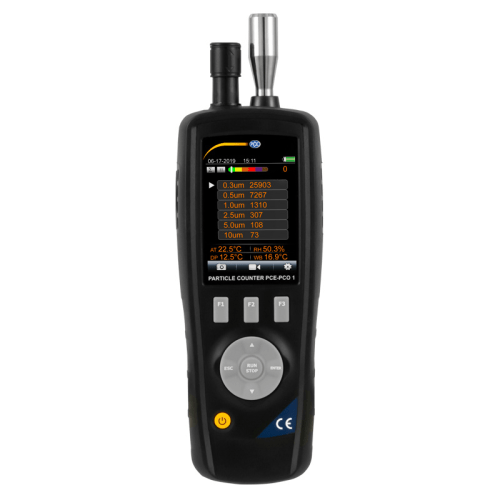

The PCE-PCO 1 is a handheld laser particle counter for monitoring clean room particulate concentrations, indoor air quality and exposure to dust.

-Can measure 6 different sizes of particles: 0.3 um, 0.5 um, 1.0 um, 2.5 um, 5.0 um, and 10 um.

-With built-in camera for monitoring clean rooms.

-Also measures air temperature, dew point and relative humidity.

Read more

$1,949.80 AUD + GST
 $2,144.78 AUD Inc. GST
This is a laser particle counter, or dust measuring device, for measuring the concentration of particles in the air. The dust measuring device is ideal for monitoring clean rooms, indoor air quality, exposure to exhaust, tobacco or cigarette smoke and other harmful air pollutants, and levels of airborne dust. Cigarette smoke particles mainly are distributed in the size range from 0.1 to 1.0 micron.
Features:
- Measures 6 sizes of particles: 0.3 um, 0.5 um, 1.0 um, 2.5 um, 5.0 um, 10 um
- Offers a robust 80 MB internal memory and microSD card slot
- Features a large, full-color LCD display with backlight
- Includes a built-in camera for image and video recording
- Contains sensors for measuring air temperature, dew point and relative humidity
- Displays temperature measurements in degrees Celsius (C) or degrees Fahrenheit (F)

Specifications

Particle counting:
- Measurable particle sizes (channels): 0.3 um / 0.5 um / 1.0 um / 2.5 um / 5.0 um / 10 um
- Flow rate: 0.1 cfm (2.83 L/min)
- Coincidence error: less than 5% at 2,000,000 particles per cubic foot
- Counting efficiency: 50 % at particle size 0.3 um, 100 % at particle size greater than 0.45 um (per ISO 21501)
- Data storage: 5000 records
- Counting modes: Cumulative, differential, concentration
Air temperature:
- Measuring range: 0 to 50 C
- Accuracy: +/- 0.5 C with 10 to 40 C; Otherwise +/- 1 C
Dew Point:
- Measuring range: 0 to 50 C
- Accuracy: +/- 0.5 C with 10 to 40 C; Otherwise +/- 1 C
Relative Humidity:
- Measuring range: 0 to 100 % RH
- Accuracy: +/-3 % RH with 40 to 60 % RH; +/- 3.5 % RH with 20 to 40 % and 60 to 80 % RH; 5 % RH with 0 to 20 % and 80 to 100 % RH
General:
- Environmental conditions: 0 to 50 C /10 to 90 % RH (non-condensing)
- LCD display: 2.8 inch / 320 x 240 pixels, back-lit, color
- Rechargeable battery: Operating time around 4 hours
- Dimensions: 240 x 75 x 55 mm
- Weight: 420 g
- Memory: Internal: 80 MB/External: Micro SD card up to 8 GB (optional)
