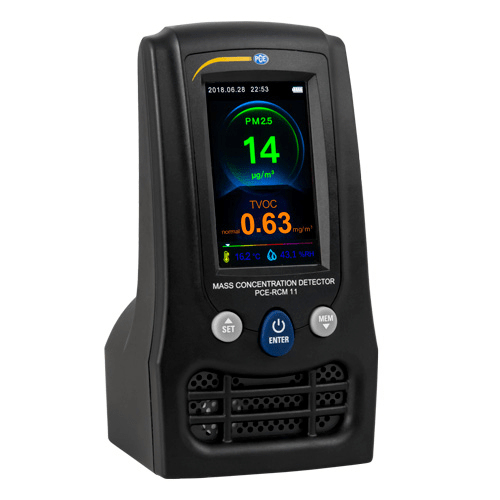

The air quality monitor PCE-RCM 11 serves the indicative examination of environmental parameters. The air quality monitor enables the measurement of fine dust, temperature and relative humidity. The bright display of the air quality monitor provides information about the already mentioned parameters. Environmental monitoring can be done continuously with the Air Quality Monitor for up to five hours without the device being connected to a power source.
For permanent measurement, the air quality monitor can be connected to the mains via a USB interface. The rechargeable battery will be recharged within two hours if the air quality monitor is turned off. The display of the concentrations is further simplified by the use of a color rating scale, as this directly provides information about the air quality to the user.
In addition to the indicative measurement of formaldehyde, which can be harmful to health, there is also an orienting measurement of particulate matter pollution to be carried out. A distinction is made between particles with a maximum diameter of up to 10 m (PM10) and particles up to a diameter of 2.5 m (PM2.5).
Features:
- Measurement of formaldehyde
- Specification of room temperature and humidity
- Fine dust measurement (PM2.5 / PM10)
- Changing display of the measured values
- Memory for up to 5000 measuring groups
- Date and time display
- USB interface
- 3 inch large TFT-LCD display
- Safe and easy handling
Specifications
Fine Dust:
- Measuring range: PM2.5 / PM10
- Measuring range particle measurement: 0 to 2000 ug /m3
- Resolution particle measurement: 1 ug/m3
TVOC:
- Measuring range: 0.00 to 9.99 mg / m3
- Accuracy: +/- 5% of the measuring range
- Resolution: 0.01 mg/m3
Formaldehyde:
- Measuring range: 0.00 to 5.00 mg/m3
- Accuracy: +/- 5% of the measuring range
- Dissolution: 0.01 mg/m3
Humidity:
- Measuring range: 0 to 100%RH
- Accuracy: +/- 3.5% RH (at 20 to 80% RH), +/- 5% RH (at 0 to 20% RH / 80 to 100% RH)
- Resolution: 0.1%RH
Temperature:
- Measuring range: -20 to 70 C
- Accuracy: +/- 2 C
- Resolution: 0.1 C
General:
- Sound sensor: Wake up to APO
- Power supply: 2400-mAh, rechargeable battery
- Battery life: Continuous measurement for up to 5 hours
- Charging Via USB: 5V/1 A
- Charging time: 2 hours (when switched off)
- Automatic: sleep mode Adjustable if necessary
- Display: 3 inch TFT LCD display, 240 x 400 pixels
- Data storage: 5000 measuring groups
- Operating temperature: 0 to 50 C
- Storage temperature: -10 to 60 C
- Dimensions: 85 x 75 x 155 mm
- Weight: 360 g
