PCE-RT 10-ICA Material Surface Roughness Tester

ORDER ME IN
Product code: PCE-RT-10-ICA

Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The PCE-RT 10-ICA is a material roughness surface tester

-Measurement range covers roughness depth (Rz) as well as the mean roughness value (Ra).

-Built with diamond sensor.

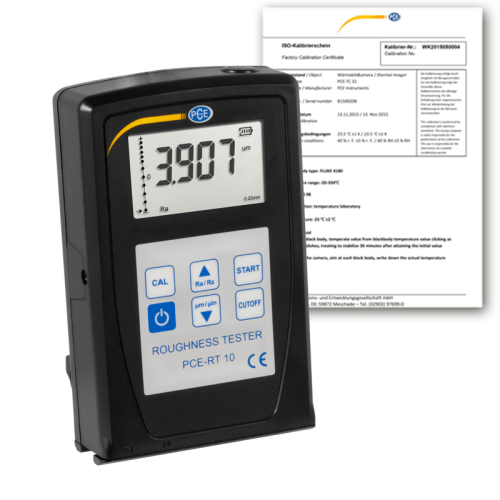

-Includes calibration certificate.

Read more

$2,559.70 AUD + GST
 $2,815.67 AUD Inc. GST

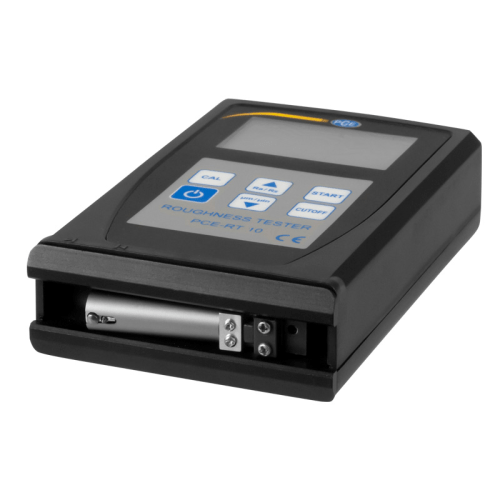

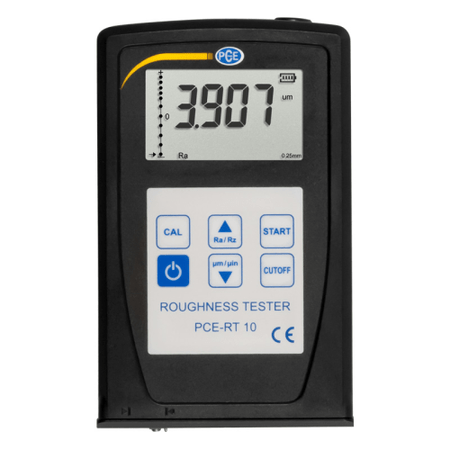

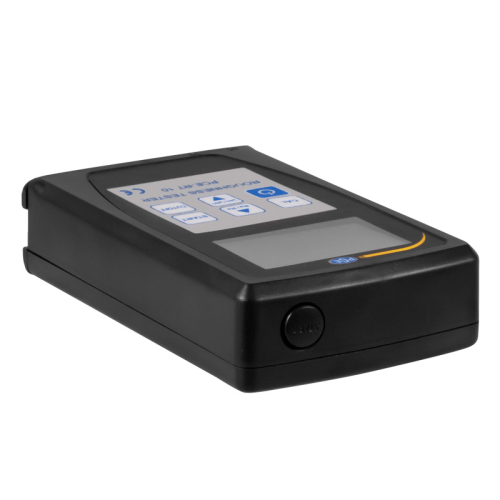

The Material Surface Roughness Tester PCE-RT 10-ICA is a small, lightweight surface roughness tester calibrated on ISO, DIN, ABSI and JIS standards. The surface texture meter can be applied for various mechanical manufacturing processes as a controlling equipment. The device indicates all calculated measurement results on its LCD display any time.

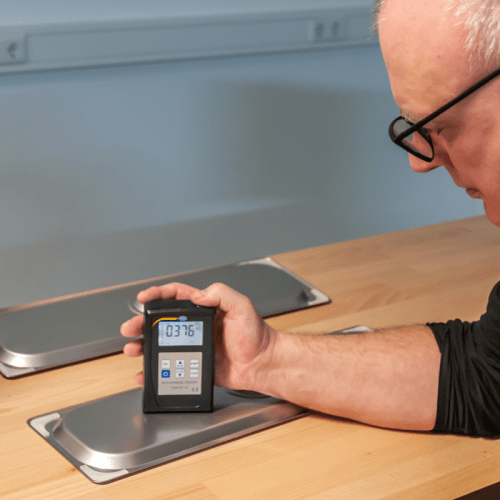

In order to measure the roughness of a surface, the sensor is to be placed onto that surface. Afterwards the sensor samples evenly the surface following its guide rail. Now the device will calculate the measuring values. Thus the indicated values are a result of the sensor's movement, while it is induced with electricity. The fast DSP processing supports quick measurements results, which are then shown on the surface texture meter's display.
Features:
- Ra and Rz measurement range
- Induction principle
- LCD display with background lights
- With threshold function
- Easy to transport
- Easy handling
- Diamond sensor
- Low fluctuation on display
- Incl. ISO calibration certificate

Specifications

- Standards: GB/T6062, ISO4287, DIN4768, JIS B, ANSI46.1
- Display: LCD
- Parameters: Ra, Rz
- Range (Ra): 0.05 to 10.00 um
- Range (Rz): 0.1 to 50.0 um
- Accuracy: +/- 15 %
- Fluctuation of Display Value: 10 %
- Resolution: 0.001 / 0.01 / 0.1
- Radius of Probe Pin: 10 um
- Material of Probe Pin: Diamond
- Measurement Force of Probe: 16 mN(1.6gf)
- Probe Angle: 90 degrees
- Vertical Radius of Guiding Head: 48 mm
- Maximum Driving Stroke: 12.5 mm
- Cutoff length(l): 0.25 mm, 0.8 mm, 2.5 mm
- Evaluation Length: 1 to 2L Optional
- Operating Conditions Temp: 0 to 50 C Humidity: less than 80 % RH
- Power Supply: 4x 1.5 V AA (UM-3) Battery
- Dimensions: 128 x 80 x 30 mm
- Weight: 280 g
