Unfortunately, the PCE-TDS-100HSH-PLUS has been discontinued and has been replaced by the
PCE-TDS-200-PLUS-SL.
This is a portable handheld clamp-on flow meter used for non-invasive, unobstructed and highly accurate measurements of the flow velocity of liquids in metal, plastic and rubber pipes and tubes with a diameter of 20 to 108 mm / approx. 3/4 to 4 inch and 57 to 720 mm / approx. 2 to 28 inches. Ideal for use in oil and gas, water and wastewater, chemical, food and beverage, pharmaceutical, metals and mining, pulp and paper, power and heating, ventilation, air conditioning and refrigeration (HVACR) industries, this flow meter features user-friendly velcro-strap clamps that allow for quick and easy repositioning of the electroacoustic transducers.
Measurable liquids include: acetate, acetone, alcohol, ammonia, aniline, benzene, butyrate, chloroform, ethanol, ethyl alcohol, ethyl ether, ethylene glycol, freon R 12, petrol, glycerin, glycol, isobutanol, isobutane, isopentane, kerosene, linseed oil, methanol, methyl alcohol, engine oil, diesel oil, olive oil, peanut oil, paraffin oil, pentane, petroleum, 1-propanol, coolant, lubricating oil, silicone oil, transformer oil, trichlorethylene, 1, 1, 1 - trichloroethane, turpentine, distilled water and sea water.
Each PCE-TDS series meter is assembled by PCE Instruments in Germany and and factory-calibrated (without any documentation). The reference display of the in-house test stand used by PCE for calibration has a valid DAkkS calibration certificate. This ensures traceability to the Physikalisch-Technische Bundesanstalt (PTB) German national standard. Please note that the meter's measured values depend on the pipe geometry, material and coating; the medium type, temperature and speed; and the sensor type and measuring method.
- ideal for retrofitting
- installation without process interruption
- easy assembly
- accurate and reliable
- no pressure loss
- maintenance-free, no moving parts
- wear-free
- portable devices for control measurements
Flow meter specifications:

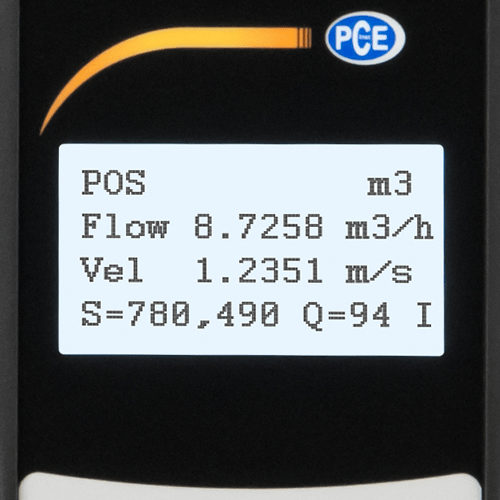

- Handheld measuring range: -32 to +32 m/s
- Resolution: 0.0001 m/s
- Accuracy for DN greater than or equal to 50 mm: +/- 1.5 % of measured value
- Accuracy for DN less than 50 mm: +/- 3.5 % of measured value
- Reproducibility: +/- 1.0 % of measured value
- Media: All liquids with an impurity, less than 5% and a flow greater than 0.03 m3/h
- Data logger: 60,000 measurements
- Interface: USB (for online measurement and reading of the internal memory)
- Protection: IP52
- Power supply: 3xx AA NiMH rechargeable battery / 2100 mAh
(at full charge 12h running time) 100 240 V AC 50/60 Hz
- Dimensions: 214 x 104 x 40 mm
- Weight: 450 g

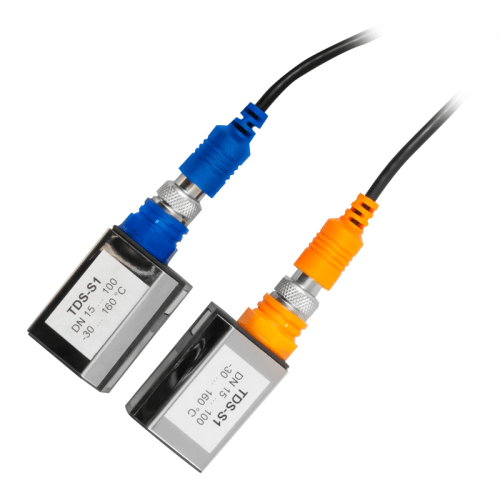

- Sensor nominal width: DN 15 to 100, 20 to 108 mm
- Temperature of liquid: -30 to 160 C
- Dimensions: 50 x 45 x 45 mm
- Weight: 260 g
Specifications

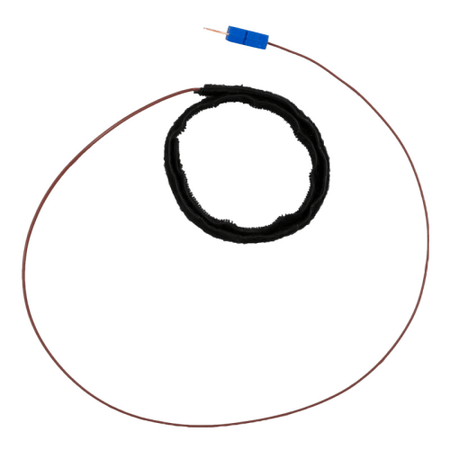

- Measuring range (Thermocouple Type K): -200 to +1370 C
- Measuring range (Thermocouple Type T): -200 to +400 C
- Measuring range (Thermocouple Type T): -200 to +1200 C
- Resolution: 00.01 C
- Accuracy*: +/- (0.3 % of rdg. +0.40) C*
- Measuring rate: 2/s
- Operating temperature: -10 +50 C
- Storage temperature: -20 to +60 C (without batteries)
- Power supply: 3xx AAA batteries / 1.2 V battery
- Battery life: 190 h (without backlight, battery capacity 1200 mAh,
ambient temperature 25 C)
- Protection class: IP52 (with protective cover and connected sensor)
- Norm/ certification: CE/EMC ROHS
