PCE-TG 300-ICA Material Thickness Meter

ORDER ME IN
Product code: PCE-TG-300-ICA

Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The PCE-TG 300 is a wall thickness meter with a large measuring range and pulse-echo or echo-echo mode.

-Range up to 600 mm.

-Echo-echo mode allows coated surfaces to be measured accurately.

-Print your data via Bluetooth.

Read more

$2,519.20 AUD + GST
 $2,771.12 AUD Inc. GST

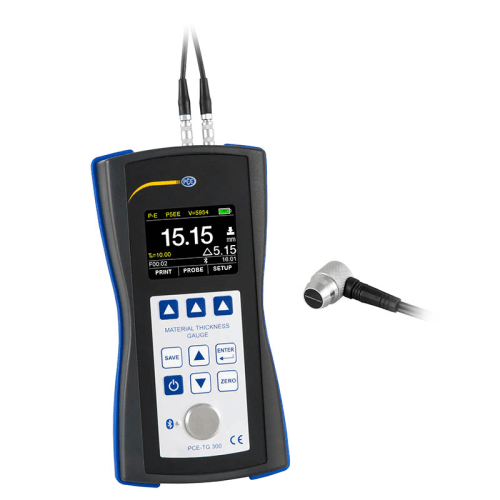

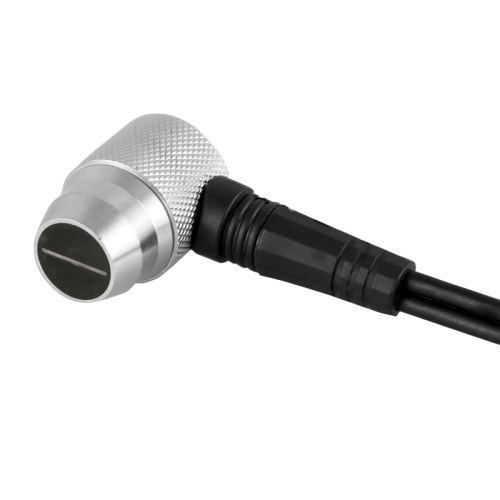

The PCE-TG 300 is a wall thickness meter with special sensors for various applications. An angled 90 degrees sensor also enables measurements at hard-to-reach measuring points. The speed of sound can be set freely on the wall thickness meter PCE-TG 300 and thus adapted to a wide variety of materials.

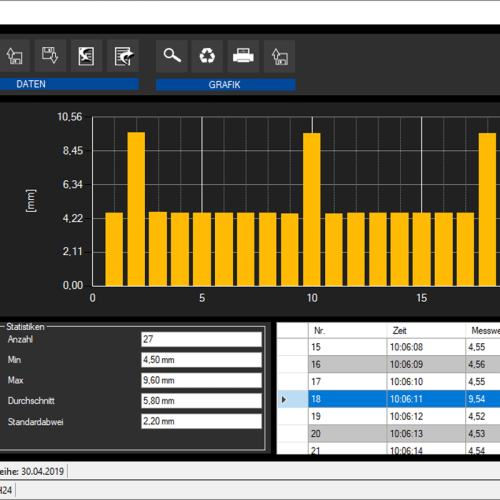

The measured values are displayed directly on the easy-to-read TFT color display. Due to the internal memory, which can be read out via the optionally available software, different measuring points can be clearly stored. The non-destructive ultrasound measuring method enables the measurement even on end products. Thanks to the Echo-Echo working mode, even coated workpieces can be measured.
Features:
- Large measuring range
- Various sensors available
- Battery operation
- Error and voids detection
- Internal measurement data memory
- Print via Bluetooth

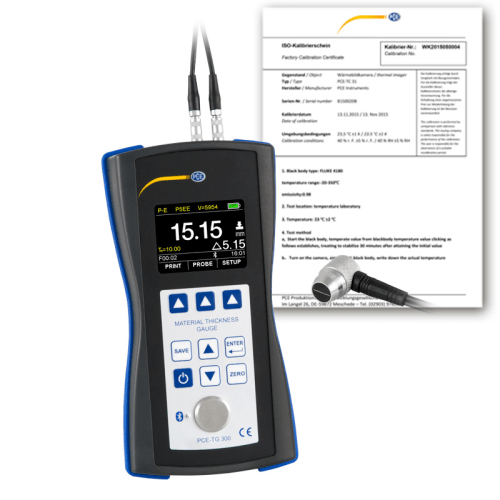

- incl. ISO Calibration Certificate

Specifications

- Measuring range (PE: pulse-echo mode): 0.65 to 600 mm (steel)
- Measuring range (EE: echo-echo mode): 2.50 to 60 mm
- Accuracy: +/- 0.04 mm H [mm] (less than 10 mm); +/- 0.4% H [mm] (more than 10 mm). H refers to the material thickness of the workpiece
- Resolution: 0.1 mm / 0.01 mm / 0.001 mm (adjustable)
- Measurable materials: Metals, Plastics, Ceramics, Epoxy resin, Glass and all homogeneous materials
- Working modes: Pulse echo mode (fault and blower detection), Echo-Echo mode (hiding layer thicknesses, eg paints)
- Calibration: Sound velocity calibration/Zeroing/Two-point calibration
- View mode: Normal mode, Scan mode, Difference mode
- Units: mm / inch

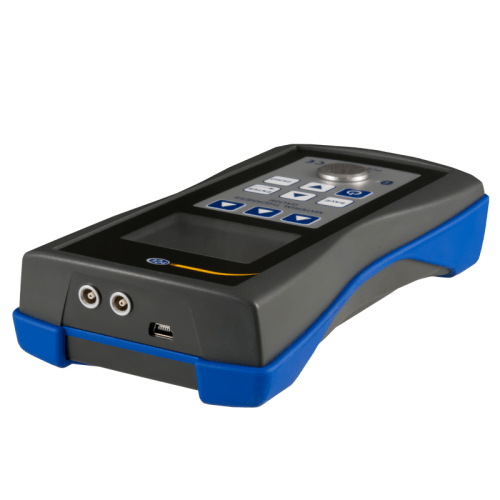

- Data transfer: Print via Bluetooth / USB 2.0
- Storage: Non-volatile memory with 100 data groups with 100 data sets each
- Operating time: Continuous operation 100 h

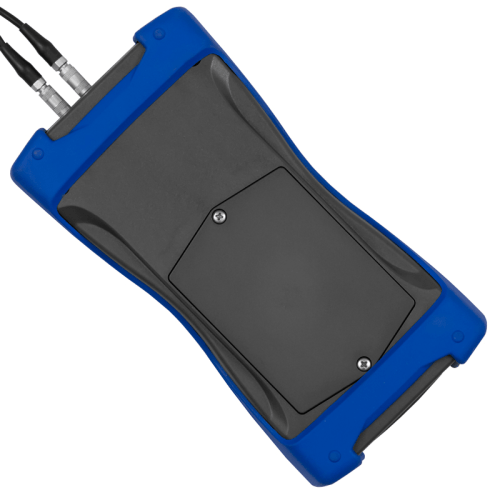

- Power supply: 4x AA battery 1.5V

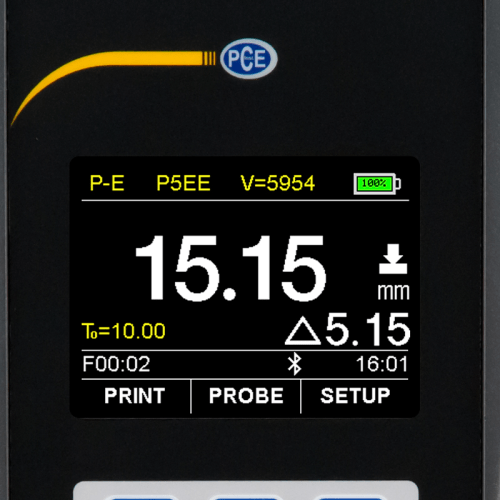

- Display: 320 x 240 pixels TFT LCD color display with brightness adjustment
- Operating conditions: 0 to 50 C less than or equal to 80% RH not condensing
- Storage conditions: -20 to 70 C / less than or equal to 80% rh non-condensing
- Dimensions: 185 x 97 x 40 mm
- Weight: 375 g
